Application2 of scRL on HSCs dataset
[1]:
import scanpy as sc
from anndata import AnnData as ad
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
import matplotlib as mpl
from matplotlib import ticker
from matplotlib import font_manager
font_manager.fontManager.addfont('../../fonts/Arial Bold Italic.ttf')
font_manager.fontManager.addfont('../../fonts/Arial Bold.ttf')
font_manager.fontManager.addfont('../../fonts/Arial Italic.ttf')
font_manager.fontManager.addfont('../../fonts/Arial.ttf')
plt.rcParams['font.sans-serif'] = ['Arial']
cm = 1/2.54
sc.set_figure_params(dpi=150,figsize=(5,5),fontsize=14,frameon=False)
from scRL.GridCore import grids_from_embedding, project_cluster, align_pseudotime, project_back, project_expression
from scRL.EnvironmentCore import lineage_rewards
from scRL.Trainer import trainer
from scRL.utils import get_traj, moving_average
import torch
device = torch.device('cuda')
[2]:
adata = sc.read_h5ad('data/setty_bone_marrow.h5ad')
sc.pp.normalize_total(adata, target_sum=1e4)
sc.pp.log1p(adata)
sc.pp.highly_variable_genes(adata, n_top_genes=2000)
sc.pp.pca(adata, use_highly_variable=True)
sc.pp.neighbors(adata)
sc.tl.umap(adata)
sc.tl.leiden(adata)

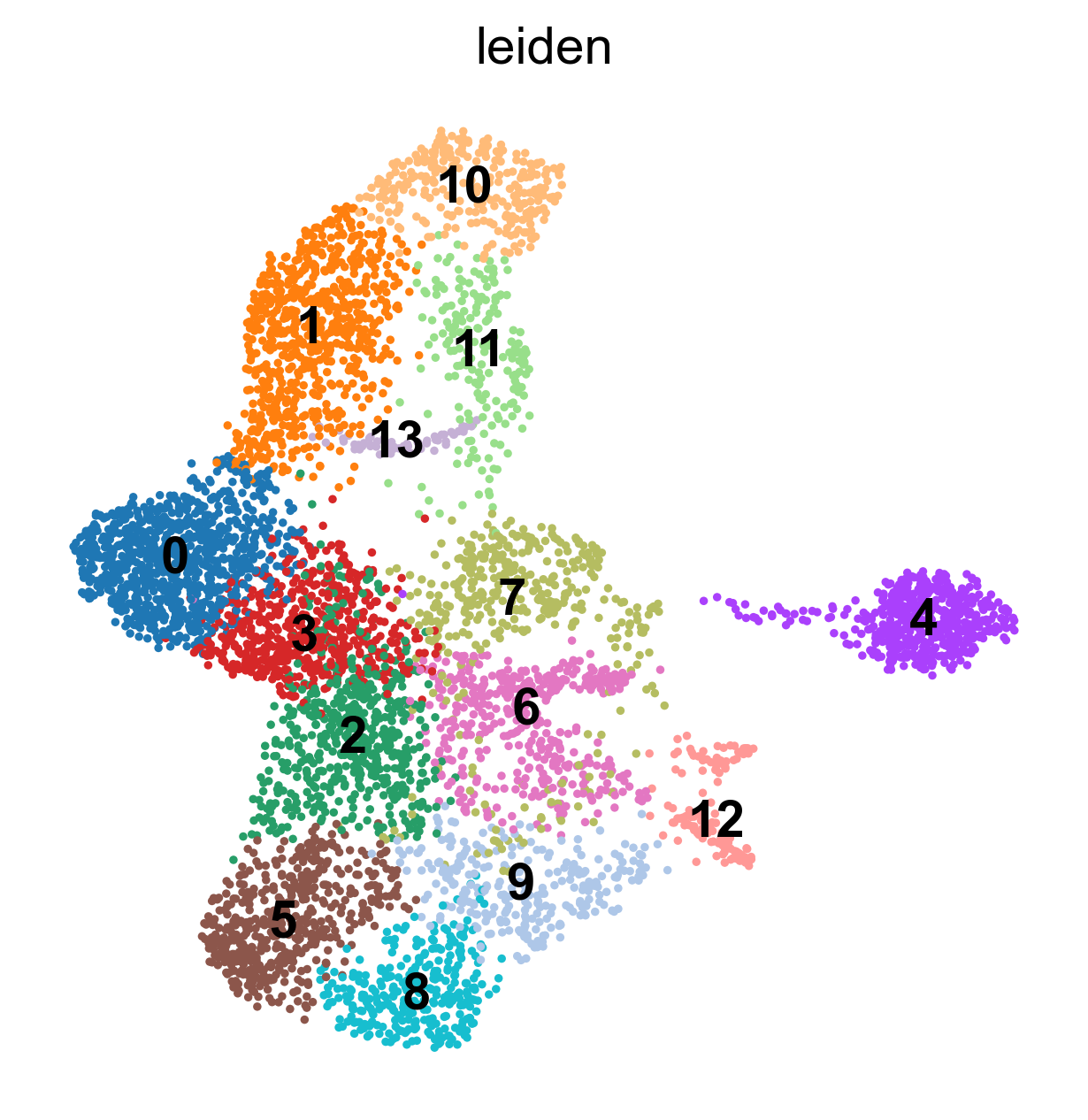

sc.pl.umap(adata, color='leiden',legend_loc='on data')
/home/lilizi/miniconda3/envs/blood/lib/python3.9/site-packages/scanpy/plotting/_tools/scatterplots.py:392: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
cax = scatter(
[3]:
adata.obs['clusters'] = pd.Categorical(adata.obs['clusters']
,['HSC_1','HSC_2','Precursors','Mega','Ery_1'
,'Ery_2','Mono_1','Mono_2','DCs','CLP']
)
clusters = adata.obs['clusters']
pal = sorted(sns.color_palette('tab10',n_colors=10),key=lambda x: x[2])
adata.uns['clusters_colors'] = pal

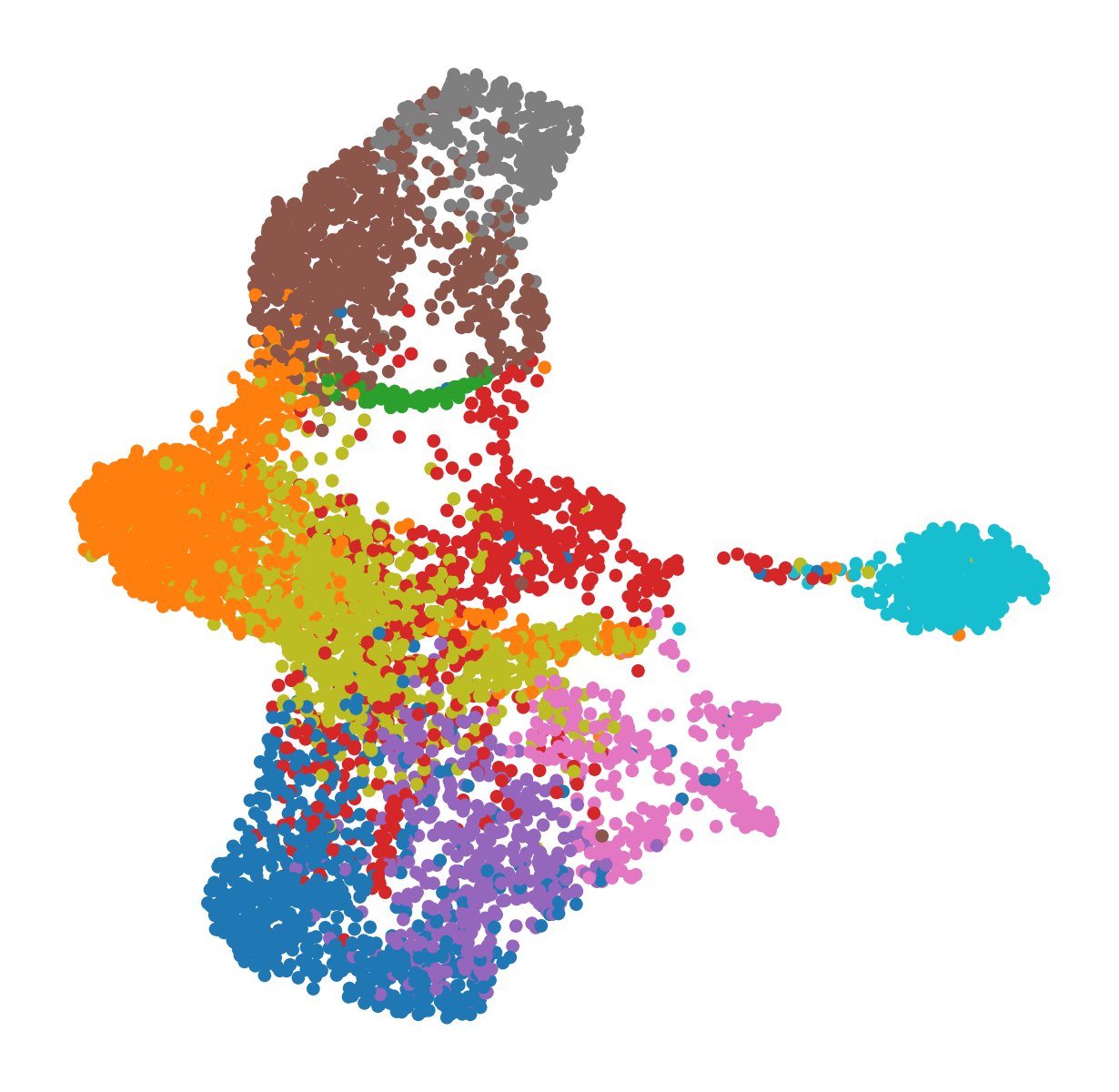

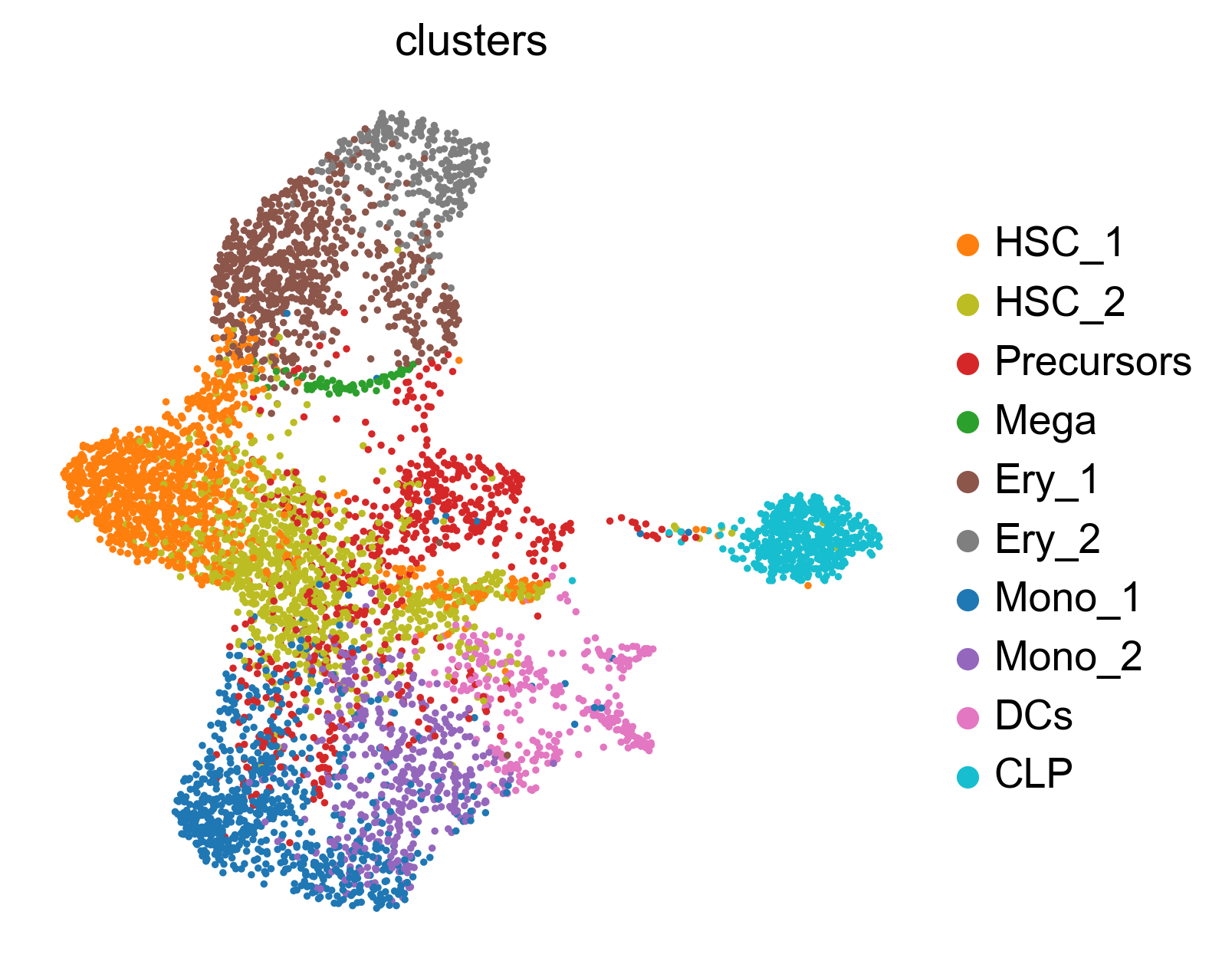

sc.pl.umap(adata, color='clusters', palette=pal)
/home/lilizi/miniconda3/envs/blood/lib/python3.9/site-packages/scanpy/plotting/_tools/scatterplots.py:392: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
cax = scatter(
[13]:
sc.pl.umap(adata, color='clusters', s=50,show=False,title='',legend_loc=None)
plt.savefig('F1.png',dpi=600,bbox_inches='tight')
/home/lilizi/miniconda3/envs/blood/lib/python3.9/site-packages/scanpy/plotting/_tools/scatterplots.py:392: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
cax = scatter(
[4]:
hsc = pd.read_table('data/GSE117498_RAW/GSM3305359_HSC.raw_counts.tsv.gz',header=0,index_col=0).iloc[1:,:].T
mpp = pd.read_table('data/GSE117498_RAW/GSM3305360_MPP.raw_counts.tsv.gz',header=0,index_col=0).iloc[1:,:].T
mlp = pd.read_table('data/GSE117498_RAW/GSM3305361_MLP.raw_counts.tsv.gz',header=0,index_col=0).iloc[1:,:].T
prebnk = pd.read_table('data/GSE117498_RAW/GSM3305362_PreBNK.raw_counts.tsv.gz',header=0,index_col=0).iloc[1:,:].T
mep = pd.read_table('data/GSE117498_RAW/GSM3305363_MEP.raw_counts.tsv.gz',header=0,index_col=0).iloc[1:,:].T
cmp = pd.read_table('data/GSE117498_RAW/GSM3305364_CMP.raw_counts.tsv.gz',header=0,index_col=0).iloc[1:,:].T
gmp = pd.read_table('data/GSE117498_RAW/GSM3305365_GMP.raw_counts.tsv.gz',header=0,index_col=0).iloc[1:,:].T
[5]:
adata1 = ad(hsc).concatenate([ad(mpp),ad(mlp),ad(prebnk),ad(mep),ad(cmp),ad(gmp)], batch_categories=['HSC','MPP','MLP','PreBNK','MEP','CMP','GMP'])
sc.pp.normalize_total(adata1, target_sum=1e4)
sc.pp.log1p(adata1)
sc.pp.highly_variable_genes(adata1)
sc.pp.pca(adata1, use_highly_variable=True)
sc.pp.neighbors(adata1)
sc.tl.leiden(adata1)
sc.tl.umap(adata1)

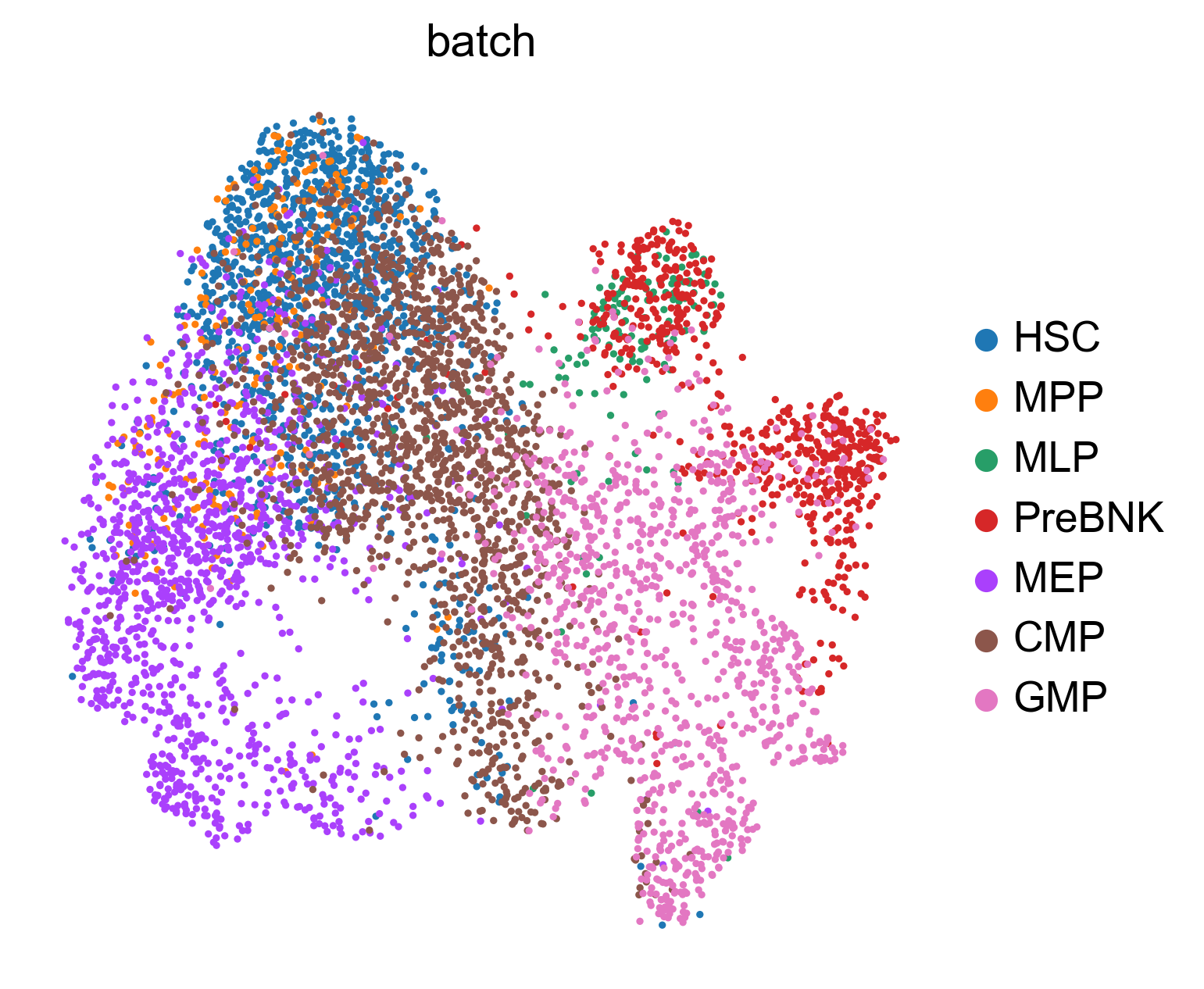

sc.pl.umap(adata1, color='batch')
/tmp/ipykernel_40175/2425512052.py:1: FutureWarning: X.dtype being converted to np.float32 from int64. In the next version of anndata (0.9) conversion will not be automatic. Pass dtype explicitly to avoid this warning. Pass `AnnData(X, dtype=X.dtype, ...)` to get the future behavour.
adata1 = ad(hsc).concatenate([ad(mpp),ad(mlp),ad(prebnk),ad(mep),ad(cmp),ad(gmp)], batch_categories=['HSC','MPP','MLP','PreBNK','MEP','CMP','GMP'])
/home/lilizi/miniconda3/envs/blood/lib/python3.9/site-packages/anndata/_core/anndata.py:1785: FutureWarning: X.dtype being converted to np.float32 from float64. In the next version of anndata (0.9) conversion will not be automatic. Pass dtype explicitly to avoid this warning. Pass `AnnData(X, dtype=X.dtype, ...)` to get the future behavour.
[AnnData(sparse.csr_matrix(a.shape), obs=a.obs) for a in all_adatas],
/home/lilizi/miniconda3/envs/blood/lib/python3.9/site-packages/scanpy/plotting/_tools/scatterplots.py:392: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
cax = scatter(
[10]:
pal1 = sorted([mpl.colors.hex2color(c) for c in adata1.uns['batch_colors']],key=lambda x:x[2])

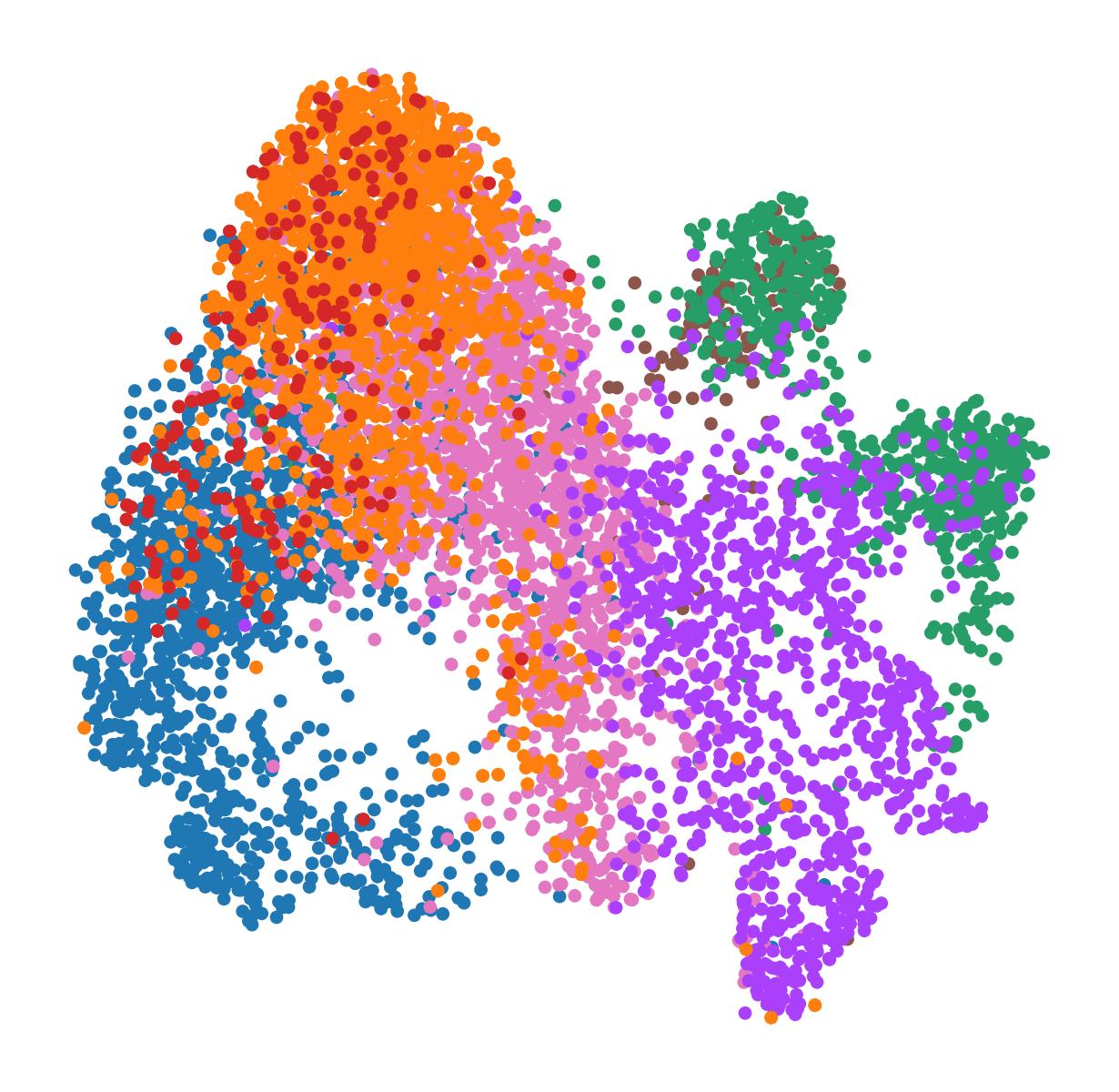

ax = sc.pl.umap(adata1, color='batch', palette=pal1,s=50,title='',frameon=False,legend_loc=None,show=False)
sc.pl.umap(adata1[adata1.obs['batch'].isin(['HSC','MPP'])], color='batch',s=50,title='',frameon=False,legend_loc=None,show=False,ax=ax)
plt.savefig('F2.png',dpi=600, bbox_inches='tight')
/home/lilizi/miniconda3/envs/blood/lib/python3.9/site-packages/scanpy/plotting/_tools/scatterplots.py:392: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
cax = scatter(
/home/lilizi/miniconda3/envs/blood/lib/python3.9/site-packages/scanpy/plotting/_tools/scatterplots.py:392: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
cax = scatter(
[6]:
def procedure(adata, key, start):
X = adata.obsm['X_umap']
X_pca = adata.obsm['X_pca']
clusters = adata.obs[key]
gres = grids_from_embedding(X)
gres = project_cluster(gres, clusters, cluster_colors=adata.uns[f'{key}_colors'])
gres = align_pseudotime(gres, start)
gres = project_back(gres, 'pseudotime')
adata.obs['time'] = gres.embedding['pseudotime']
return gres
[7]:
gres = procedure(adata, 'clusters', 'HSC_1')
Boundary generating: 100%|███████████████████| 196/196 [00:00<00:00, 212.96it/s]
Mask testing: 100%|███████████████████████████████| 8/8 [00:00<00:00, 24.78it/s]
Adjacent generating: 100%|████████████████| 1071/1071 [00:00<00:00, 2415.64it/s]
Boundary pruning: 100%|████████████████████| 240/240 [00:00<00:00, 10790.13it/s]
Adjacent generating: 100%|████████████████| 1163/1163 [00:00<00:00, 2303.05it/s]
Time used for mapping grids: 5.74 seconds
Time used for projecting annotation : 1.14 seconds
Time used for aligning pseudo-time : 0.67 seconds
[22]:

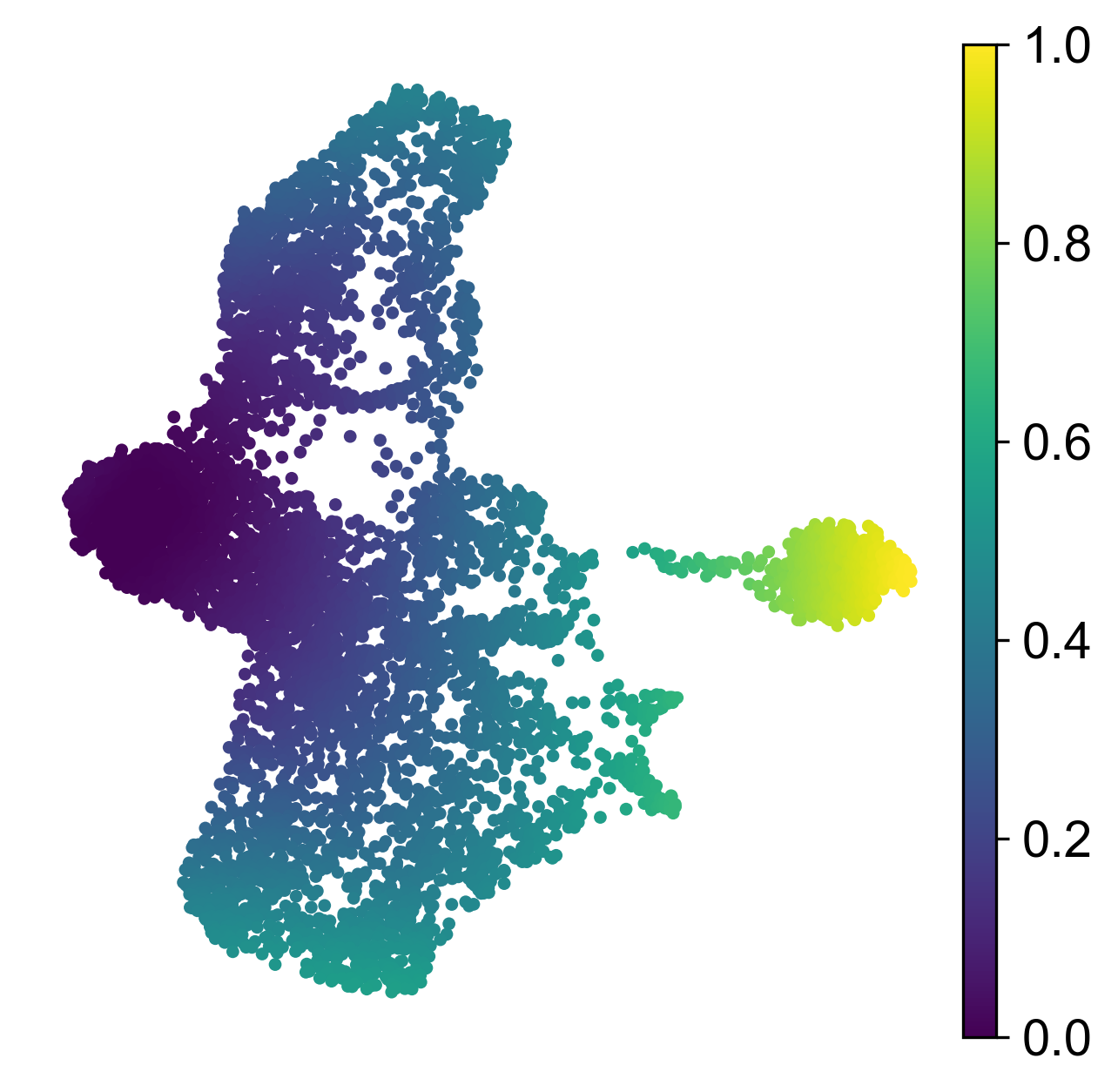

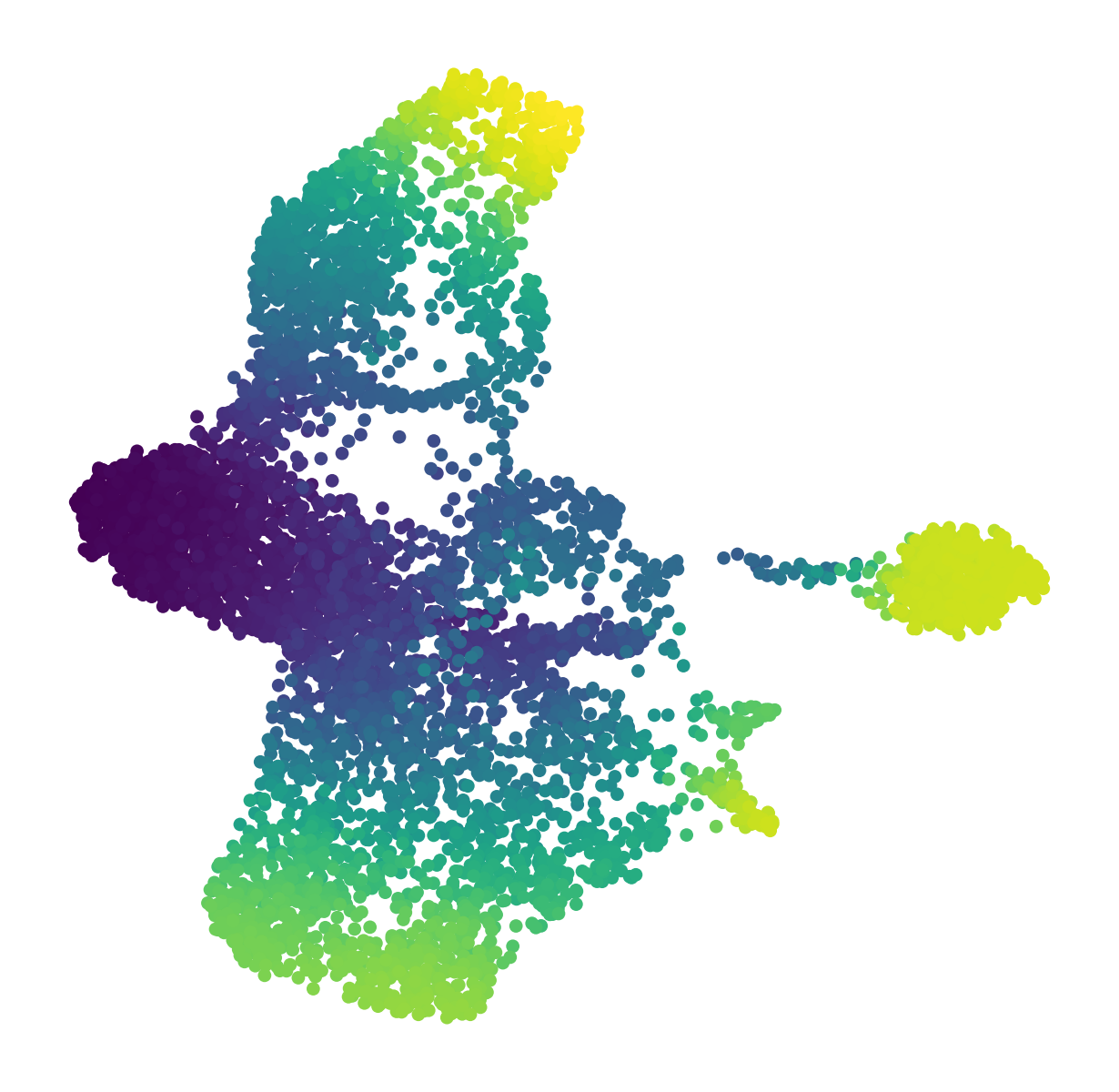

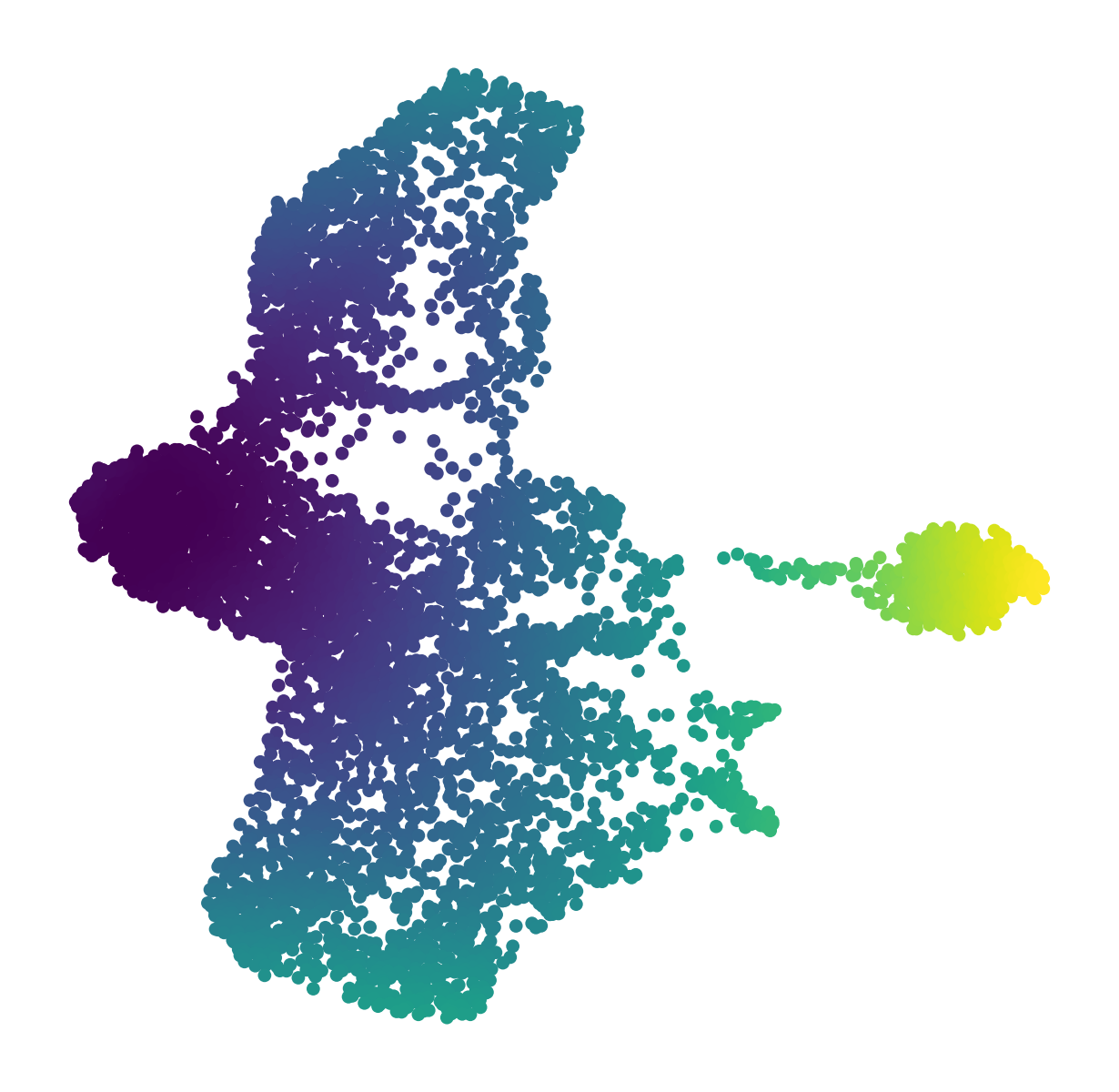

sc.pl.umap(adata, color='time',s=50,title='',show=False)
plt.savefig('F3.png',dpi=600,bbox_inches='tight')
[8]:
gres1 = procedure(adata1, 'batch', 'HSC')
Boundary generating: 100%|███████████████████| 196/196 [00:00<00:00, 197.91it/s]
Mask testing: 100%|███████████████████████████████| 8/8 [00:00<00:00, 26.99it/s]
Adjacent generating: 100%|████████████████| 1653/1653 [00:00<00:00, 1887.07it/s]
Boundary pruning: 100%|████████████████████| 227/227 [00:00<00:00, 10970.37it/s]
Adjacent generating: 100%|████████████████| 1699/1699 [00:00<00:00, 2144.77it/s]
Time used for mapping grids: 6.06 seconds
Time used for projecting annotation : 1.02 seconds
Time used for aligning pseudo-time : 0.61 seconds
[23]:

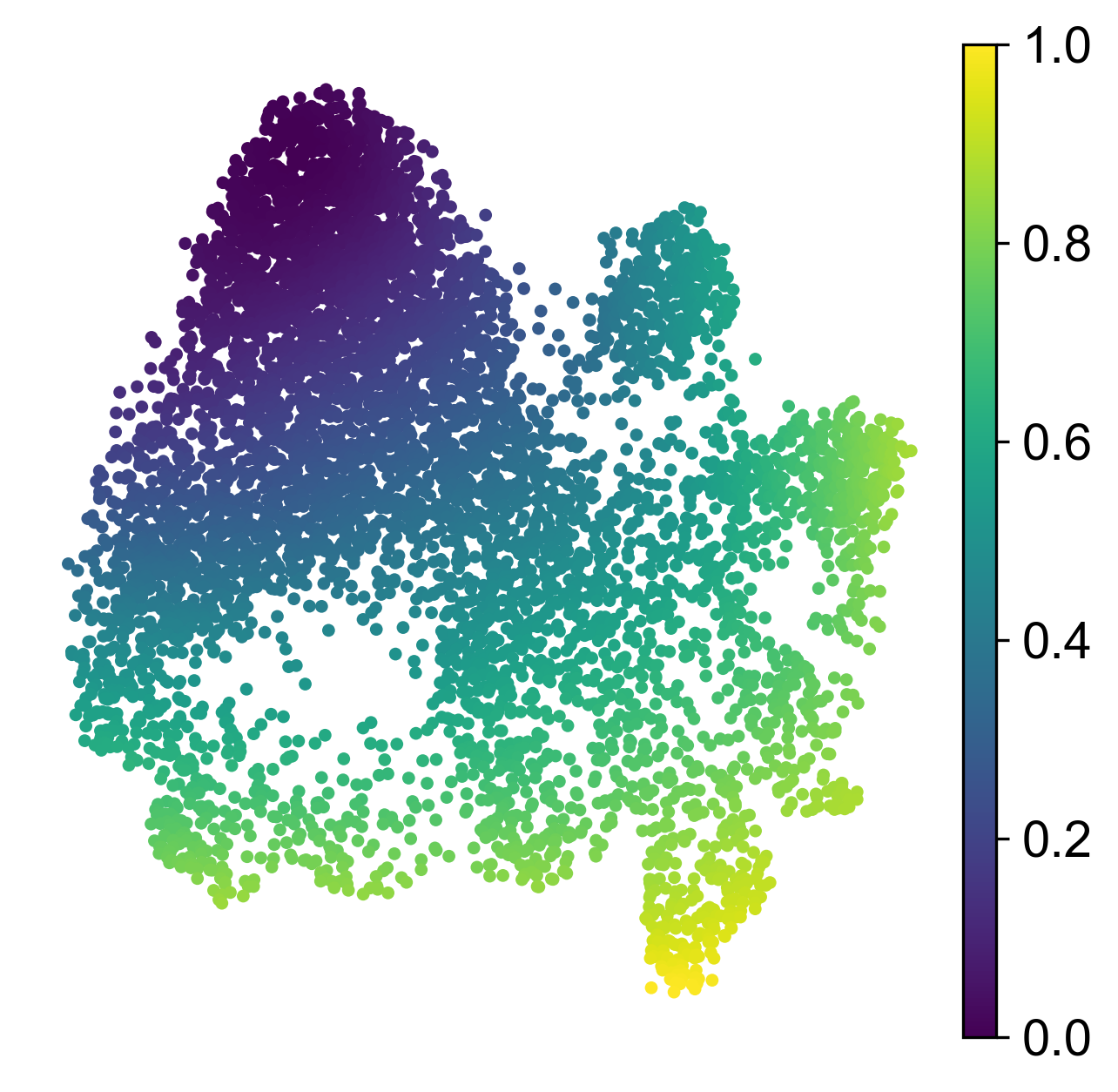

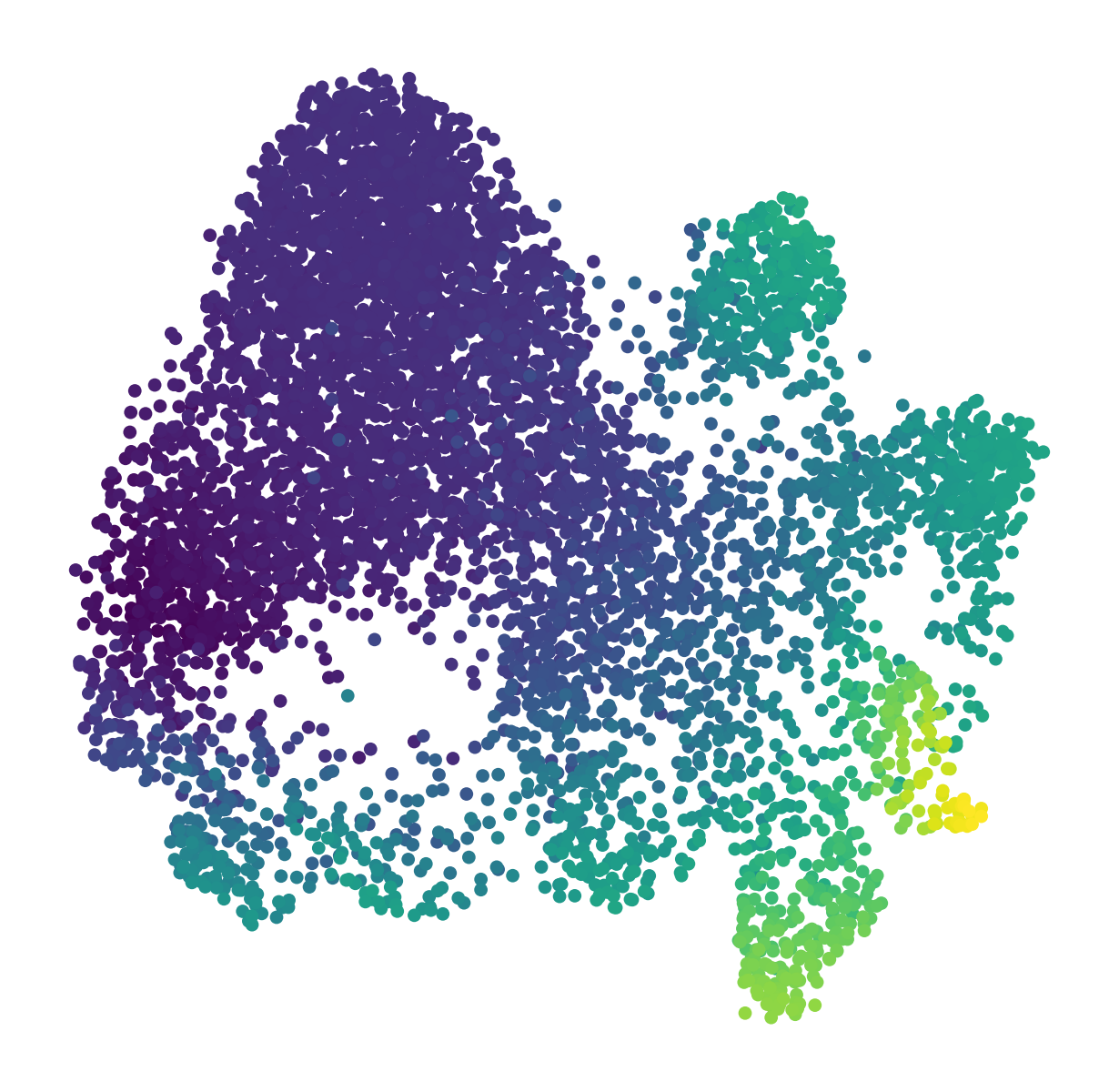

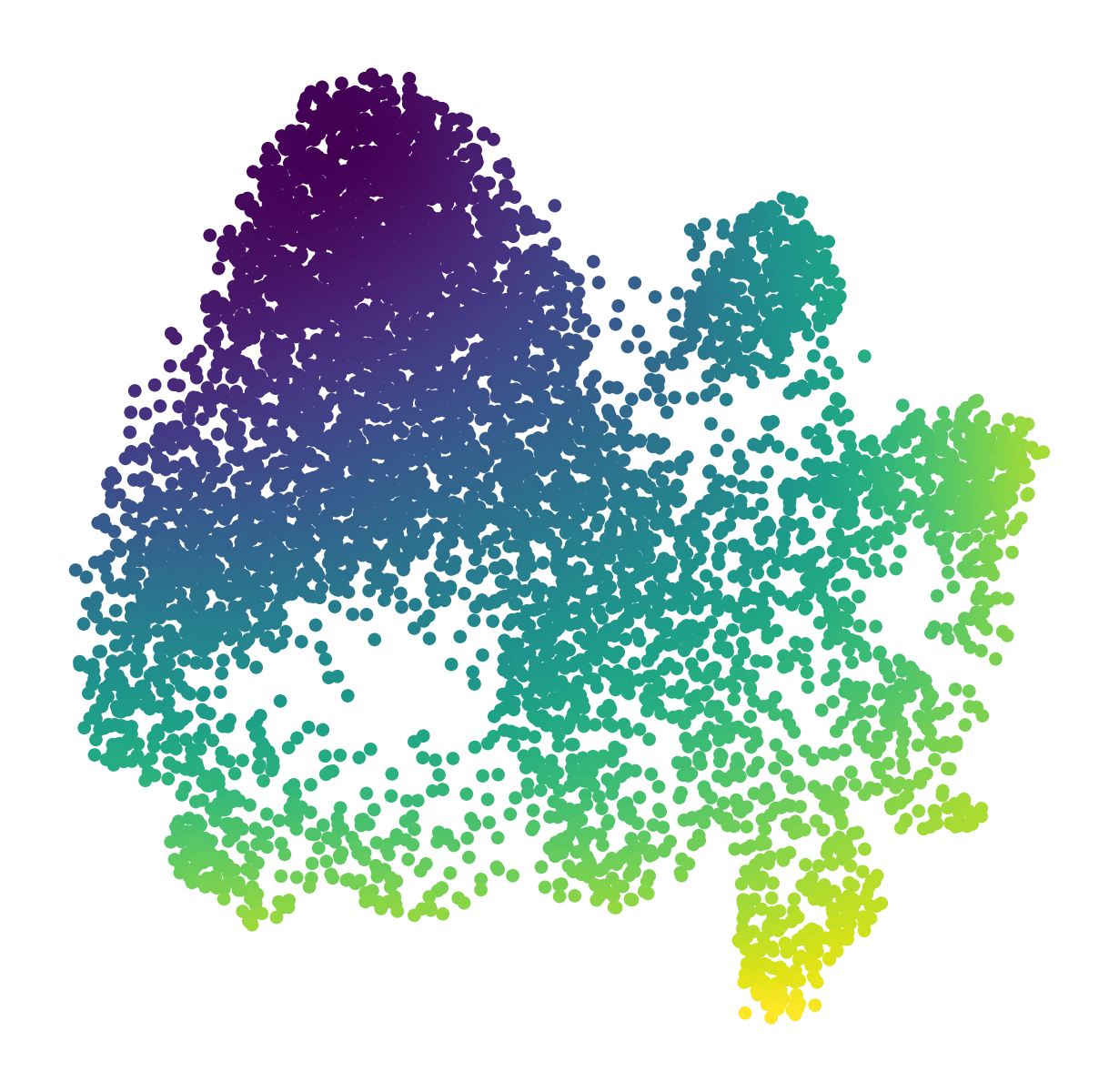

sc.pl.umap(adata1, color='time',s=50,title='',show=False)
plt.savefig('F4.png',dpi=600,bbox_inches='tight')
[ ]:
[ ]:
[58]:
start = 'Run4_195606431320494'
sc.tl.diffmap(adata)
adata.uns['iroot'] = np.where(adata.obs_names == start)[0].item()
sc.tl.dpt(adata)
start1 = adata1.obs_names[np.argmax(adata1.obsm['X_umap'][:,1])]
sc.tl.diffmap(adata1)
adata1.uns['iroot'] = np.argmax(adata1.obsm['X_umap'][:,1])
sc.tl.dpt(adata1)
[31]:
from wishbone import wb
res = wb.c_wishbone(adata.obsm['X_diffmap'][:, [1,2]],
s=np.where(adata.obs_names == start)[0]
)
res1 = wb.c_wishbone(adata1.obsm['X_diffmap'][:, [1,2]],
s=np.where(adata1.obs_names == start1)[0]
)
adata.obs['wishbone_pseudotime'] = res['Trajectory']
adata1.obs['wishbone_pseudotime'] = res1['Trajectory']
[196]:
import scanpy.external as sce
[64]:

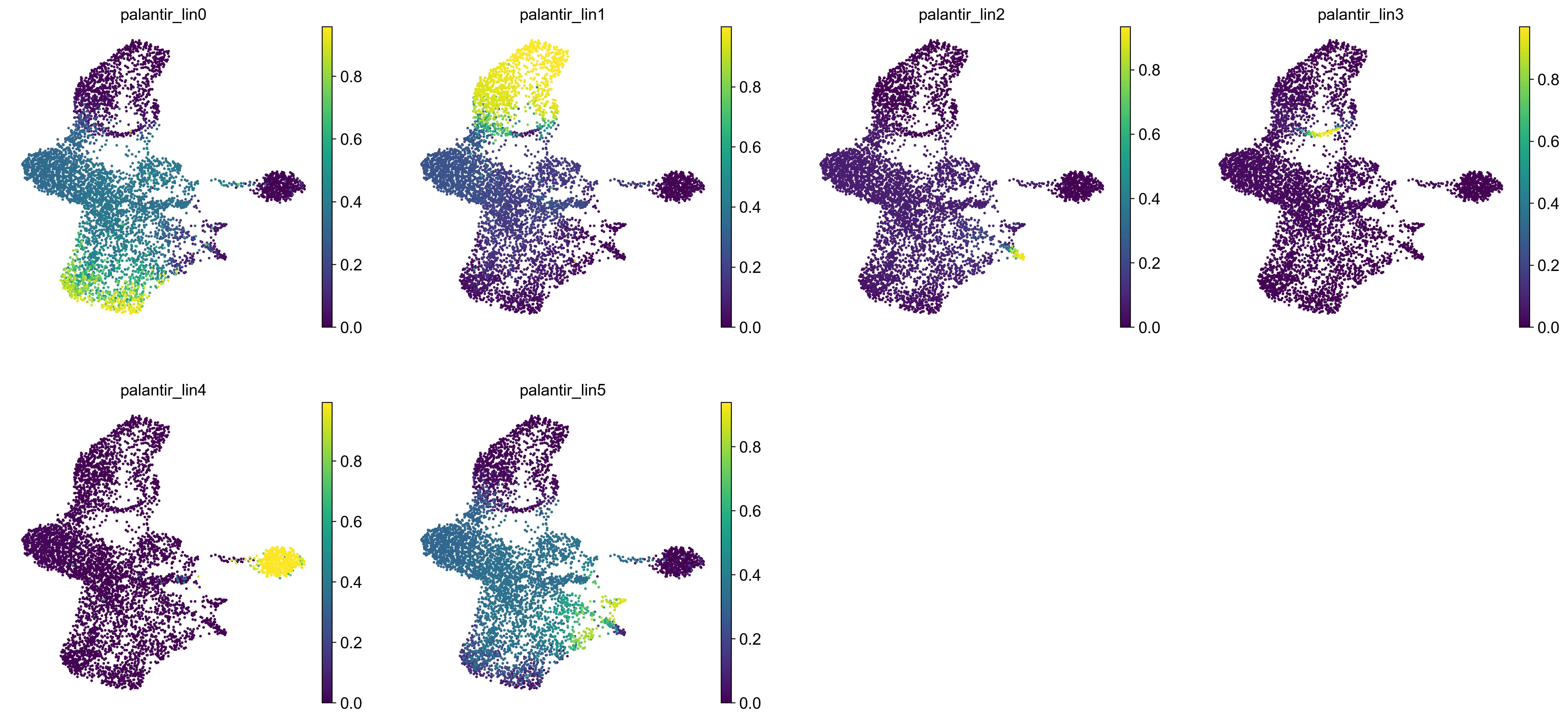

sce.tl.palantir(adata)
pr_res = sce.tl.palantir_results(adata, early_cell=start)
[198]:
sns.set_style('ticks')
[64]:
adata.obs['palantir_pseudotime'] = pr_res.pseudotime
[197]:
sce.tl.palantir(adata1)
pr_res1 = sce.tl.palantir_results(adata1, early_cell=start1)
adata1.obs['palantir_pseudotime'] = pr_res1.pseudotime
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
Determing nearest neighbor graph...
Sampling and flocking waypoints...
Time for determining waypoints: 0.008221256732940673 minutes
Determining pseudotime...
Shortest path distances using 30-nearest neighbor graph...
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Raleway'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Lato'] not found. Falling back to DejaVu Sans.
Time for shortest paths: 0.12091676791508993 minutes
Iteratively refining the pseudotime...
Correlation at iteration 1: 0.9996
Correlation at iteration 2: 1.0000
Entropy and branch probabilities...
Markov chain construction...
Identification of terminal states...
Computing fundamental matrix and absorption probabilities...
Project results to all cells...
[40]:
adata[:,adata.var['highly_variable']].to_df().T.to_csv('cd34exp.csv')
g = adata[:,adata.var['highly_variable']].var_names
pd.DataFrame({'gene':g,'gene_short_names':g}).to_csv('cd34fdata.csv')
adata.obs.to_csv('cd34pdata.csv')
adata1[:,adata1.var['highly_variable']].to_df().T.to_csv('phenoexp.csv')
g = adata1[:,adata1.var['highly_variable']].var_names
pd.DataFrame({'gene':g,'gene_short_names':g}).to_csv('phenofdata.csv')
adata1.obs.to_csv('phenopdata.csv')
[43]:
adata.obs['monocle_time'] = pd.read_csv('mpt.csv',header=0,index_col=0).values
adata.obs['monocle3_time'] = pd.read_csv('mpt3.csv',header=0,index_col=0).values
adata1.obs['monocle_time'] = pd.read_csv('../../../phenompt.csv',header=0,index_col=0).values
adata1.obs['monocle3_time'] = pd.read_csv('../../../phenompt3.csv',header=0,index_col=0).values
[50]:
adata.obs['umap_dis'] = np.linalg.norm(adata.obsm['X_umap'][adata.uns['iroot'],:]-adata.obsm['X_umap'], axis=1)
adata1.obs['umap_dis'] = np.linalg.norm(adata1.obsm['X_umap'][adata1.uns['iroot'],:]-adata1.obsm['X_umap'], axis=1)
[16]:

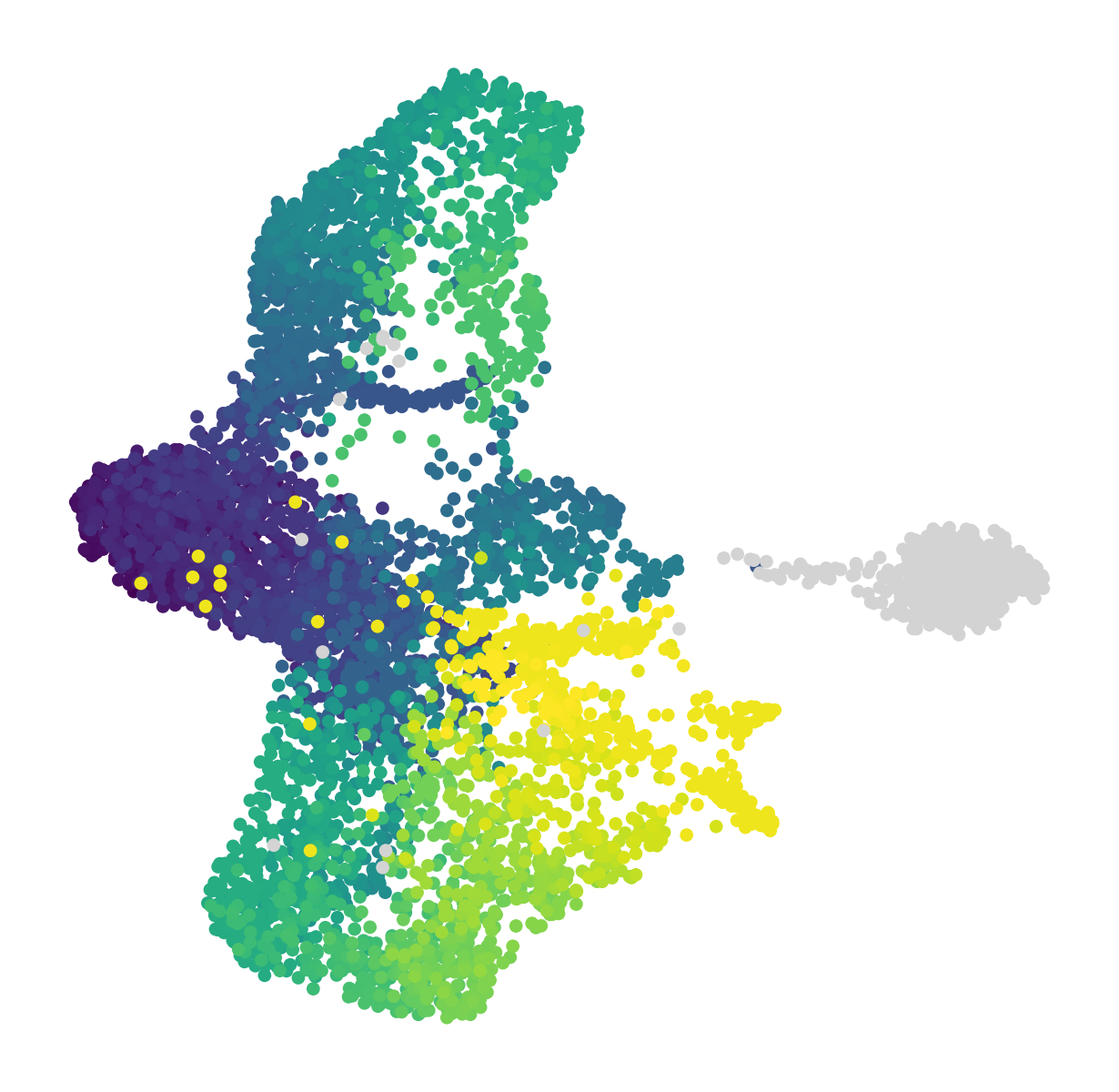

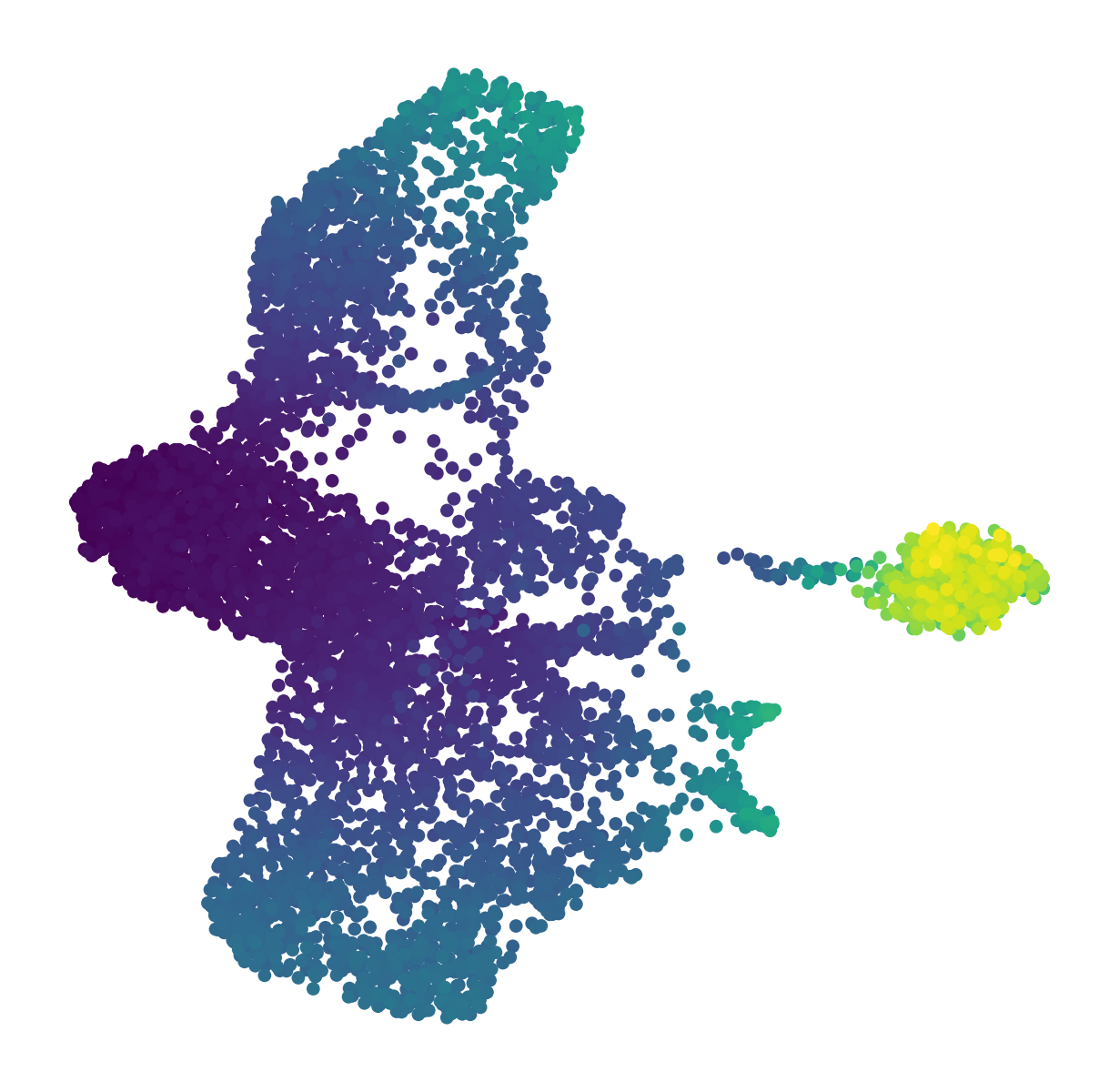

for i, t in enumerate(['time','palantir_pseudotime','wishbone_pseudotime','dpt_pseudotime','monocle_time','monocle3_time']):
adata.obs[t] = times[t]
sc.pl.umap(adata, color=t,s=50,show=False,colorbar_loc=None,title='')
plt.savefig(f'F5_{i}.png',dpi=600,bbox_inches='tight')
[19]:
for i, t in enumerate(['time','palantir_pseudotime','wishbone_pseudotime','dpt_pseudotime','monocle_time','monocle3_time']):
adata1.obs[t] = times1[t]
sc.pl.umap(adata1, color=t,s=50,show=False,colorbar_loc=None,title='')
plt.savefig(f'F6_{i}.png',dpi=600,bbox_inches='tight')
[73]:
adata.obs[['umap_dis','time','palantir_pseudotime','wishbone_pseudotime','dpt_pseudotime','monocle_time','monocle3_time']].to_csv('cd34_times.csv')
[74]:
adata1.obs[['umap_dis','time','palantir_pseudotime','wishbone_pseudotime','dpt_pseudotime','monocle_time','monocle3_time']].to_csv('pheno_times.csv')
[13]:
times = pd.read_csv('cd34_times.csv',header=0,index_col=0)
times1 = pd.read_csv('pheno_times.csv',header=0,index_col=0)
[ ]:
[ ]:
[56]:
adata.obs[['umap_dis','time','palantir_pseudotime','wishbone_pseudotime','dpt_pseudotime','monocle_time','monocle3_time']].corr()
[56]:
| umap_dis | time | palantir_pseudotime | wishbone_pseudotime | dpt_pseudotime | monocle_time | monocle3_time | |
|---|---|---|---|---|---|---|---|
| umap_dis | 1.000000 | 0.968365 | 0.893793 | 0.846124 | 0.897445 | -0.403734 | 0.862021 |
| time | 0.968365 | 1.000000 | 0.845803 | 0.876461 | 0.936078 | -0.526510 | 0.855501 |
| palantir_pseudotime | 0.893793 | 0.845803 | 1.000000 | 0.876030 | 0.874180 | -0.065465 | 0.691234 |
| wishbone_pseudotime | 0.846124 | 0.876461 | 0.876030 | 1.000000 | 0.975520 | -0.247391 | 0.583827 |
| dpt_pseudotime | 0.897445 | 0.936078 | 0.874180 | 0.975520 | 1.000000 | -0.371213 | 0.713829 |
| monocle_time | -0.403734 | -0.526510 | -0.065465 | -0.247391 | -0.371213 | 1.000000 | -0.223607 |
| monocle3_time | 0.862021 | 0.855501 | 0.691234 | 0.583827 | 0.713829 | -0.223607 | 1.000000 |
[68]:
adata.obs[['umap_dis','time','palantir_pseudotime','wishbone_pseudotime','dpt_pseudotime','monocle_time','monocle3_time']].corr(method='spearman')
[68]:
| umap_dis | time | palantir_pseudotime | wishbone_pseudotime | dpt_pseudotime | monocle_time | monocle3_time | |
|---|---|---|---|---|---|---|---|
| umap_dis | 1.000000 | 0.987028 | 0.910618 | 0.892078 | 0.933179 | -0.251680 | 0.881750 |
| time | 0.987028 | 1.000000 | 0.886383 | 0.861972 | 0.914707 | -0.287535 | 0.869918 |
| palantir_pseudotime | 0.910618 | 0.886383 | 1.000000 | 0.967446 | 0.980356 | 0.064501 | 0.764251 |
| wishbone_pseudotime | 0.892078 | 0.861972 | 0.967446 | 1.000000 | 0.977595 | 0.040673 | 0.740726 |
| dpt_pseudotime | 0.933179 | 0.914707 | 0.980356 | 0.977595 | 1.000000 | -0.010969 | 0.780016 |
| monocle_time | -0.251680 | -0.287535 | 0.064501 | 0.040673 | -0.010969 | 1.000000 | -0.065490 |
| monocle3_time | 0.881750 | 0.869918 | 0.764251 | 0.740726 | 0.780016 | -0.065490 | 1.000000 |
[69]:
adata.obs[['umap_dis','time','palantir_pseudotime','wishbone_pseudotime','dpt_pseudotime','monocle_time','monocle3_time']].corr(method='kendall')
[69]:
| umap_dis | time | palantir_pseudotime | wishbone_pseudotime | dpt_pseudotime | monocle_time | monocle3_time | |
|---|---|---|---|---|---|---|---|
| umap_dis | 1.000000 | 0.914122 | 0.759110 | 0.721722 | 0.785419 | -0.165547 | 0.702206 |
| time | 0.914122 | 1.000000 | 0.729621 | 0.687235 | 0.758143 | -0.189250 | 0.686804 |
| palantir_pseudotime | 0.759110 | 0.729621 | 1.000000 | 0.843980 | 0.879671 | 0.040376 | 0.595386 |
| wishbone_pseudotime | 0.721722 | 0.687235 | 0.843980 | 1.000000 | 0.885222 | 0.028135 | 0.541465 |
| dpt_pseudotime | 0.785419 | 0.758143 | 0.879671 | 0.885222 | 1.000000 | 0.000868 | 0.601444 |
| monocle_time | -0.165547 | -0.189250 | 0.040376 | 0.028135 | 0.000868 | 1.000000 | -0.033961 |
| monocle3_time | 0.702206 | 0.686804 | 0.595386 | 0.541465 | 0.601444 | -0.033961 | 1.000000 |
[67]:
adata1.obs[['umap_dis','time','palantir_pseudotime','wishbone_pseudotime','dpt_pseudotime','monocle_time','monocle3_time']].corr()
[67]:
| umap_dis | time | palantir_pseudotime | wishbone_pseudotime | dpt_pseudotime | monocle_time | monocle3_time | |
|---|---|---|---|---|---|---|---|
| umap_dis | 1.000000 | 0.976782 | 0.728338 | 0.743226 | 0.881044 | 0.212012 | 0.768849 |
| time | 0.976782 | 1.000000 | 0.807974 | 0.794167 | 0.914937 | 0.124536 | 0.814106 |
| palantir_pseudotime | 0.728338 | 0.807974 | 1.000000 | 0.908804 | 0.937603 | 0.060842 | 0.691790 |
| wishbone_pseudotime | 0.743226 | 0.794167 | 0.908804 | 1.000000 | 0.916202 | 0.025952 | 0.651030 |
| dpt_pseudotime | 0.881044 | 0.914937 | 0.937603 | 0.916202 | 1.000000 | 0.152000 | 0.730693 |
| monocle_time | 0.212012 | 0.124536 | 0.060842 | 0.025952 | 0.152000 | 1.000000 | -0.090880 |
| monocle3_time | 0.768849 | 0.814106 | 0.691790 | 0.651030 | 0.730693 | -0.090880 | 1.000000 |
[70]:
adata1.obs[['umap_dis','time','palantir_pseudotime','wishbone_pseudotime','dpt_pseudotime','monocle_time','monocle3_time']].corr(method='spearman')
[70]:
| umap_dis | time | palantir_pseudotime | wishbone_pseudotime | dpt_pseudotime | monocle_time | monocle3_time | |
|---|---|---|---|---|---|---|---|
| umap_dis | 1.000000 | 0.977493 | 0.587837 | 0.789439 | 0.951279 | 0.265922 | 0.756017 |
| time | 0.977493 | 1.000000 | 0.699308 | 0.864583 | 0.968940 | 0.182283 | 0.805172 |
| palantir_pseudotime | 0.587837 | 0.699308 | 1.000000 | 0.841612 | 0.705644 | 0.153153 | 0.673639 |
| wishbone_pseudotime | 0.789439 | 0.864583 | 0.841612 | 1.000000 | 0.890381 | 0.057648 | 0.787674 |
| dpt_pseudotime | 0.951279 | 0.968940 | 0.705644 | 0.890381 | 1.000000 | 0.144937 | 0.833106 |
| monocle_time | 0.265922 | 0.182283 | 0.153153 | 0.057648 | 0.144937 | 1.000000 | -0.003457 |
| monocle3_time | 0.756017 | 0.805172 | 0.673639 | 0.787674 | 0.833106 | -0.003457 | 1.000000 |
[71]:
adata1.obs[['umap_dis','time','palantir_pseudotime','wishbone_pseudotime','dpt_pseudotime','monocle_time','monocle3_time']].corr(method='kendall')
[71]:
| umap_dis | time | palantir_pseudotime | wishbone_pseudotime | dpt_pseudotime | monocle_time | monocle3_time | |
|---|---|---|---|---|---|---|---|
| umap_dis | 1.000000 | 0.875926 | 0.392881 | 0.594686 | 0.821572 | 0.150719 | 0.534956 |
| time | 0.875926 | 1.000000 | 0.491095 | 0.675882 | 0.842827 | 0.080135 | 0.580485 |
| palantir_pseudotime | 0.392881 | 0.491095 | 1.000000 | 0.648919 | 0.499077 | 0.107146 | 0.429151 |
| wishbone_pseudotime | 0.594686 | 0.675882 | 0.648919 | 1.000000 | 0.727705 | 0.007227 | 0.555583 |
| dpt_pseudotime | 0.821572 | 0.842827 | 0.499077 | 0.727705 | 1.000000 | 0.069726 | 0.611368 |
| monocle_time | 0.150719 | 0.080135 | 0.107146 | 0.007227 | 0.069726 | 1.000000 | 0.000199 |
| monocle3_time | 0.534956 | 0.580485 | 0.429151 | 0.555583 | 0.611368 | 0.000199 | 1.000000 |
[22]:
X_pca = adata.obsm['X_pca']
X_pca1 = adata1.obsm['X_pca']
[20]:
gres = lineage_rewards(gres, ['HSC_1','HSC_2'], ['Ery_1','Ery_2','Mega'], mode='Contribution')
[210]:
gres1 = lineage_rewards(gres1, ['HSC','MPP'], ['MEP'], mode='Contribution')
Reward generating: 100%|██████████████████| 1699/1699 [00:00<00:00, 2719.81it/s]
Time used for generating rewards : 0.65 seconds
[20]:
t_ery = trainer('ActorCritic', gres, reward_mode='Contribution', X_latent=X_pca, num_episodes=5e3)
t_ery.train()
[214]:
t_ery1 = trainer('ActorCritic', gres1, reward_mode='Contribution', X_latent=X_pca1, num_episodes=5e3)
t_ery1.train()
Iteration1: 100%|█████████████| 500/500 [00:03<00:00, 159.30it/s, E=500, R=1.80]
Iteration2: 100%|█████████████| 500/500 [00:05<00:00, 90.11it/s, E=1000, R=5.35]
Iteration3: 100%|█████████████| 500/500 [00:06<00:00, 80.40it/s, E=1500, R=7.41]
Iteration4: 100%|█████████████| 500/500 [00:07<00:00, 71.33it/s, E=2000, R=8.55]
Iteration5: 100%|█████████████| 500/500 [00:06<00:00, 75.92it/s, E=2500, R=9.07]
Iteration6: 100%|█████████████| 500/500 [00:07<00:00, 71.41it/s, E=3000, R=9.45]
Iteration7: 100%|█████████████| 500/500 [00:07<00:00, 70.01it/s, E=3500, R=9.41]
Iteration8: 100%|█████████████| 500/500 [00:07<00:00, 71.11it/s, E=4000, R=8.88]
Iteration9: 100%|█████████████| 500/500 [00:06<00:00, 72.82it/s, E=4500, R=8.50]
Iteration10: 100%|████████████| 500/500 [00:07<00:00, 70.62it/s, E=5000, R=8.95]
[214]:
([-1.0,
-0.9120472399454435,
0.2385996355282271,
-0.6351028949225641,
-2,
-1.0,
-1.0,
-1.0,
-0.8135489302211806,
0.15964423254712884,
-1.0,
-0.9207748984453747,
-0.9207748984453747,
-0.7732577404831906,
-0.8592096231396673,
-0.3070031725302924,
-0.592260016295893,
-1.0,
-1.0,
-1.9656820546492288,
0.598740114039227,
-1.0,
-1.0,
-0.8696342659522577,
-0.93751492968221,
-1.0,
-1.0,
-2.0,
-0.7490954336047507,
-1.0,
-1.0,
-1.0,
-0.2424468176746727,
-1.0,
-1.0,
-0.914947228730031,
-1.0,
1.8507556150364182,
-1.0,
-1.0,
-2.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.021739130434782636,
0.14177013350623247,
-1.0,
0.005434782608695656,
-1.0,
-1.0,
-0.47124320831805344,
-1.0,
-2,
-0.6533391349593307,
-0.558840212311459,
-0.9656820546492288,
-1.0,
-1.0,
-1.0,
-0.5998287320415083,
-1.0,
-0.4046382160669887,
0.024456521739130377,
-0.9718328750329811,
-1.0,
-0.6618618618640273,
-0.2966903155239998,
-0.026839412341326363,
-0.222727095733815,
-1.0,
-1.0,
3.9007311895145786,
-1.0,
-0.4913910451382718,
-2,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.6180966670065295,
-1.0,
-1.0,
-1.0,
-1.0,
-0.7326324677392158,
-1.0,
6.3375542893593275,
-1.0,
-1.0,
-1.0,
-1.0,
-0.9718328750329811,
-1.0,
-0.7559209716506217,
0.005434782608695704,
-0.5117898078169754,
-0.9656820546492288,
-0.7610807068869145,
-1.0,
-0.9687525832417256,
-1.0,
0.05601953039478991,
-2.0,
-1.0,
-1.0,
-0.8696342659522577,
-1.0,
-0.6193865541850521,
-1.0,
-1.0,
-0.6941415580919376,
0.551676563212613,
-1.0,
0.021739130434782483,
-1.0,
-1.0,
0.310642602469689,
-0.7732577404831906,
-2,
-1.0,
-2.0,
-0.35668436049660857,
-0.9207748984453747,
-1.0,
-2.0,
-1.0,
-1.0,
-1.0,
0.5297997527001301,
-0.676734543214324,
-1.0,
-1.0,
-1.0,
-1.0,
-0.6832104226749482,
-1.0,
-0.8291936244043234,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
1.690417719150204,
-0.5117898078169754,
-1.0,
-0.9656820546492288,
-1.0,
-1.0,
-1.0,
-1.0,
0.013586956521739135,
-0.9718328750329811,
-1.0,
-1.0,
-0.7349619807804433,
-1.0,
0.013586956521739135,
-0.9656820546492288,
-1.0,
-2.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
-0.008152173913043473,
-0.9237026381080495,
-1.0,
-1.0,
-0.93751492968221,
-1.0,
0.18501288797029192,
-0.2503604650030963,
-1.0,
-0.38622267943953037,
-1.0,
-0.8291936244043234,
-1.0,
-1.0,
-0.9120472399454435,
-1.0,
0.021739130434782636,
-0.7343829421826148,
-0.5021336855390238,
-1.0,
-0.7165313105737893,
0.024456521739130377,
-0.7933369040603072,
-1.0,
-1.0,
14.515384088072683,
-1.0,
-1.0,
-1.0,
0.02435328940034598,
-0.489031283635156,
-0.5259261036777779,
-0.8451391689075787,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-0.7165313105737893,
-1.0,
-0.025697198596839277,
-0.7610807068869145,
-1.0,
-0.25231676723692886,
-0.8835384931061214,
-0.5367584157856338,
-2,
-0.9656820546492288,
1.2898041446003239,
-1.0,
0.5089137736133784,
-0.9120472399454435,
-1.0,
0.024456521739130377,
-1.0,
-0.8291936244043234,
-0.17160166690978584,
-0.9207748984453747,
-1.0,
-0.8895274816871004,
-1.0,
-1.0,
-1.0,
2.2354195010589293,
0.021739130434782622,
-1.0,
-0.4884860048498395,
0.04679852691040676,
-1.0,
-2,
-2,
-1.0,
-0.9237026381080495,
0.024456521739130377,
-1.0,
-0.3446436296988118,
9.365867637636741,
-0.21957946334229783,
-1.0,
-0.10135773070686704,
-2,
-0.38644450870182145,
-1.0,
-0.8291936244043234,
-0.9718328750329811,
2.442695773792595,
-0.47124320831805344,
0.02717391304347827,
-1.0,
0.7334574365991369,
-0.9237026381080495,
-0.914947228730031,
-0.8696342659522577,
0.02717391304347827,
0.021739130434782566,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-0.5790953644470621,
-1.0,
0.02717391304347827,
-1.0,
-0.09135943056689766,
3.5615050109279878,
0.024456521739130377,
-1.0,
-0.7303103382513573,
-1.0,
0.021739130434782636,
0.013586956521739135,
-2,
-0.9237026381080495,
-0.44457055307314997,
-0.8328221383908182,
6.905121014494422,
-1.0,
-1.0,
-1.0,
-1.0,
-0.9178564384568926,
1.164775804755652,
11.733222360829396,
1.5953400599977572,
-0.03452147591618859,
-1.0,
-1.0,
-0.9207748984453747,
7.177129558650918,
-1.0,
-0.8046550134237993,
8.280908935075669,
-0.9120472399454435,
-0.5270090452515632,
0.0190217391304347,
-1.0,
-1.0,
-1.0,
1.1276541120556922,
-1.0,
-0.93751492968221,
-1.0,
0.4489493712421462,
-1.0,
-0.5216316190859906,
-1.0,
-1.0,
-1.0,
-1.0,
0.013586956521739135,
9.34482870850167,
-1.0,
0.02717391304347827,
-1.0,
-1.0,
3.1076006642506773,
-1.0,
-0.676734543214324,
-0.10881032988584982,
-0.6172138723143648,
1.011757035547015,
0.310642602469689,
-0.8291936244043234,
10.703993204310775,
0.024456521739130377,
0.02717391304347816,
-0.676734543214324,
-1.0,
0.5397478430111842,
11.207805590916978,
-0.2543361706095487,
-1.0,
0.7274828440972005,
0.02717391304347827,
-1.0,
-0.1659144512225874,
-0.7412408643497669,
1.0347704920860181,
-0.16698814346344726,
0.02717391304347827,
-2.0,
-0.9120472399454435,
0.024456521739130377,
-0.2996910689462776,
-0.9718328750329811,
-1.0,
-1.0,
2.041644377262438,
0.02717391304347816,
0.02717391304347827,
2.1756955846924138,
8.81292429082441,
0.02717391304347816,
-0.9120472399454435,
-0.44357778651882995,
1.8379610721714519,
-1.0,
2.7721756392014534,
-1.0,
-1.0,
0.024456521739130377,
-2.0,
0.7247654527928528,
-2,
-1.0,
-0.5343075216743862,
-0.9656820546492288,
-1.0,
0.6581247449031332,
2.3037752477022333,
9.29352026976567,
8.79156675585254,
5.925366724559039,
0.13275622809045265,
-1.0,
-1.0,
-0.7165313105737893,
1.7750496815407675,
6.590792765382979,
10.771437949467286,
11.021922291184017,
-0.6586646188884928,
-1.0,
-1.0,
0.5304088411660763,
0.2577479676525971,
-1.0,
6.363052688924068,
0.6922817203680747,
5.084345506769344,
1.3130371081522023,
-1.0,
1.2669475342115233,
-1.0,
-1.0,
2.346615882536516,
3.005725432710438,
0.02717391304347827,
-1.0,
9.385282574873424,
0.0,
-0.2543361706095487,
0.02717391304347827,
-1.0,
7.380195529413129,
-1.0,
0.36850929415498546,
0.021739130434782483,
0.02717391304347827,
6.135609127996393,
-0.18884612121644184,
4.764497334307884,
-0.9237026381080495,
0.42734518100196994,
-0.7349619807804433,
4.859174910678473,
-1.0,
1.7983845339456472,
-1.0,
9.708897876853486,
-1.0,
9.43611644904866,
0.02717391304347827,
-1.0,
-1.0,
-1.0,
8.881831610158757,
0.08151248696203328,
3.488032756294376,
-1.0,
0.021739130434782483,
0.02717391304347827,
0.02717391304347827,
0.42734518100196994,
0.021739130434782705,
-0.9656820546492288,
0.5196051977967191,
-1.0,
3.47833194888092,
7.278574368130279,
-0.9656820546492288,
7.9927024829504205,
0.0190217391304347,
0.024456521739130377,
2.5949973232931285,
0.3031126796899213,
-0.43918817995416615,
0.024456521739130377,
2.393055658184851,
9.604594212381183,
0.013586956521739135,
0.6821234852025782,
0.6667225711339977,
6.496703507509589,
2.2016852112689516,
0.42734518100196983,
0.3052078198609932,
0.024456521739130377,
0.02717391304347827,
7.5878084168230036,
0.02717391304347827,
-0.6985956365691245,
5.031837578663081,
0.36579190285063756,
2.9104455561105604,
5.2736968406099525,
-0.6789371453438071,
5.79307818466366,
5.992353268340361,
-1.0,
0.4460151918727795,
-1.0,
9.3200639450565,
-1.0,
3.683319773855106,
-1.0,
0.024456521739130377,
3.8798195212330815,
10.827366132117453,
0.310642602469689,
9.904137179665154,
1.7750496815407675,
-1.0,
-1.0,
5.292251804352311,
4.3501979346287,
-1.0,
-1.0,
0.02717391304347827,
9.097081030419208,
0.32317630343330506,
7.256551081346757,
4.354616129279521,
-0.9207748984453747,
9.176896619545046,
-0.008152173913043473,
11.068193349124792,
0.02717391304347827,
-2,
0.34396349036853,
0.9542514018815622,
0.02717391304347827,
0.021739130434782705,
0.7326530633444049,
8.577929345041232,
9.612363339581833,
0.7902400406669402,
0.021739130434782636,
2.015331243139118,
-0.9178564384568926,
0.02717391304347827,
0.48256986114160005,
9.539250594534748,
10.782983921811725,
0.02717391304347827,
-2,
0.02717391304347827,
-1.0,
0.42462778969762205,
0.8935231137942543,
8.186343099093698,
0.13275622809045265,
9.803929182748332,
1.2615127516028275,
0.5120524746598587,
6.915289355883378,
0.775735312373445,
0.021739130434782594,
-0.7349619807804433,
0.3052078198609932,
1.9295484990127767,
0.01902173913043459,
-1.0,
8.478522478454881,
0.024456521739130377,
-1.0,
0.02717391304347827,
1.9688832585232374,
0.6904530862252143,
0.008152173913043459,
0.2867771496543394,
10.604582890010763,
0.7306744768662252,
0.5835521731736315,
0.06379854920420769,
0.617100914367794,
5.371252435984109,
1.2964946785762113,
0.021739130434782483,
1.1699979866117844,
11.199339218133128,
0.6474284057433464,
1.203452255024538,
9.371011895264035,
-1.0,
2.3816887644286133,
-0.9237026381080495,
1.3853097624391806,
0.01902173913043459,
2.3939375742217006,
1.282707872172198,
4.810940634515902,
9.477407321469856,
0.866548716546935,
0.04824830690703682,
0.5297997527001301,
7.517308189015121,
0.02717391304347827,
9.016577723700992,
0.0190217391304347,
-1.0,
9.214874519942054,
0.024456521739130377,
8.488811734614128,
0.10075388363108095,
8.595479186835925,
-1.0,
0.38693996436163947,
-1.0,
8.776373512315287,
7.938577999120094,
-1.0,
-0.5051306750384984,
0.09803649232673317,
10.370597921417668,
0.02717391304347827,
-2.0,
0.292211932263035,
0.7274828440972007,
0.45551230596898884,
1.0560653371945323,
0.08716692710934174,
7.729525553008213,
0.18815260321545768,
10.481789362313032,
7.532948800977879,
0.01902173913043459,
0.005434782608695704,
-1.0,
-1.0,
9.579601894286421,
0.42909203721339495,
0.02717391304347816,
0.02717391304347827,
11.218249042180483,
9.356889441411159,
0.02717391304347827,
-1.0,
4.62620427093174,
3.608147448953814,
-1.0,
0.02717391304347827,
8.440963804871478,
0.5960227227348791,
4.774299439385921,
8.060894493164213,
0.42462778969762205,
0.021739130434782594,
11.01083181847675,
7.273181281202275,
8.170122865743718,
0.4787812091119731,
0.005434782608695704,
7.64660955578135,
12.005826049078712,
0.021739130434782705,
1.098648562391531,
0.705379087819485,
0.0,
2.057151770948043,
7.769292439930987,
0.024456521739130377,
7.128894084880933,
0.024456521739130377,
4.86889085965371,
0.024456521739130488,
5.471569609548554,
4.426779713143062,
4.319577115335458,
-0.7349619807804433,
7.838493302044588,
-1.0,
0.02717391304347827,
9.807169813734644,
-0.39744341099523095,
6.960788116074216,
0.0190217391304347,
2.440258968718816,
12.063131607093608,
0.021739130434782483,
-0.3163600426152976,
10.22665286374494,
11.36108960386713,
8.397898863034554,
0.02717391304347827,
7.075648607398572,
0.5702458390805499,
7.788663523995447,
0.021739130434782483,
8.871670671228934,
-2,
1.8643647100805891,
4.885655851967624,
5.484258695493983,
7.316976702979828,
-1.0,
0.021739130434782483,
0.021739130434782594,
-2,
7.282200061322134,
-0.6985628270014775,
7.415007086232719,
9.188561921867915,
6.294613521496046,
7.480680897345154,
-1.0,
0.310642602469689,
-0.4442911295618628,
7.5086085530268685,
3.471665615625621,
9.082664460705013,
0.32861108604200073,
0.02717391304347816,
4.004451390912573,
0.021739130434782483,
0.10075388363108084,
6.471051475241913,
7.294539718463644,
3.5727466587370977,
3.4554918762429043,
0.02717391304347827,
3.0874337767698767,
3.2459892237181274,
6.909466769622694,
-2,
0.02717391304347827,
0.024456521739130377,
4.744618505603153,
0.02717391304347827,
7.848229032939868,
7.569722014589188,
7.5495679737066546,
8.209156907935311,
6.9796089446748,
-0.7200884797139064,
5.949995723209379,
0.3052078198609933,
0.024456521739130377,
3.4901534493115065,
-1.0,
10.152705487124694,
-1.0,
0.962697509387771,
7.553098285300364,
-0.7845814946822887,
5.384451995250355,
1.7750496815407675,
-0.41013324913408444,
10.635933702555151,
-2.0,
6.876818669693327,
0.09803649232673295,
-2.0,
3.0616119377208757,
2.3953041742406356,
8.023220933498633,
-0.14301250651759034,
5.605465999729207,
-0.16601343703332583,
7.110191223570011,
-1.0,
8.294572912011844,
8.132468826892334,
7.14560303544402,
8.99977014350697,
12.07449420348257,
-1.0,
1.7750496815407675,
9.69217965435264,
9.731454717190399,
5.310464933822464,
9.837224504703075,
5.860819135089456,
0.6406790288014439,
9.165198566401186,
8.991692785755935,
0.02717391304347827,
3.686399386932308,
0.5218419345533611,
2.343237552430301,
10.220990973901907,
0.021739130434782483,
1.2554340886501276,
-1.0,
9.026360630258104,
-0.9237026381080495,
-1.0,
7.446442929939492,
0.013586956521739135,
8.268744851228961,
8.948120444955935,
-2,
2.894791665378495,
10.569541344412686,
7.072829691760573,
4.00079986951822,
9.613866358618887,
9.03101667537184,
5.542997876005947,
10.146673847424166,
10.035790296074113,
0.02717391304347827,
7.016558622040093,
10.118190515058432,
3.1533475726479883,
-1.0,
10.175213370951214,
0.617100914367794,
7.0786988055858595,
9.464668874928881,
0.02717391304347816,
8.556804464784545,
4.558626916639522,
9.931333394371956,
8.459464000009104,
8.748657195627638,
1.3558814514040707,
8.08710769958456,
10.337466228463592,
-0.6533391349593307,
-0.7659283383646487,
0.5701614144688901,
7.9919781421136,
5.70600642947317,
0.3079252111653411,
3.4908979783994383,
0.0054347826086956555,
4.88224247821428,
7.338159060253908,
7.739411254666724,
5.407962810390737,
11.459835185470626,
6.646156618770722,
2.4065814731954704,
3.5059356968040687,
-0.5401219035664196,
-2.0,
-1.0,
0.024456521739130377,
8.634245190192873,
-0.747050062861216,
-1.0,
8.20934307163778,
5.081096214414671,
0.617100914367794,
3.478649168606351,
5.027831720946658,
9.866798943011473,
0.02717391304347827,
7.129970161046563,
2.4065814731954704,
8.794001040896248,
10.148073503706875,
3.0046721256326823,
3.530700048810428,
4.520508861238179,
9.088938438916646,
0.024456521739130488,
1.3954088871838608,
9.700163854194612,
8.19510889041795,
6.539019261590955,
7.81484383755187,
9.162250056304048,
7.395604622843757,
6.589882351984052,
6.590783553071289,
9.47890915406951,
7.16039369684762,
6.508975909861345,
-0.2503604650030963,
1.7736561875350216,
8.24765973165283,
7.628745596555042,
0.005434782608695704,
-0.7165313105737893,
11.403515054680847,
2.3939375742217006,
9.479171361809568,
3.003309857147417,
7.281104167236345,
5.552798466702475,
10.723684145740092,
8.588751915502481,
-0.19677353199822,
4.88224247821428,
8.828376419205767,
11.784358636934899,
-1.0,
8.192463044673952,
2.827608375514243,
2.4065814731954704,
-0.752896262512373,
7.441808588952711,
9.005159030032862,
9.842832793822808,
7.978257523000073,
-0.8777292945946723,
8.223809345908794,
5.615039976382555,
7.0627762865688775,
6.267207338755442,
-0.008152173913043473,
-1.0,
3.1524511598937437,
8.576430104270528,
9.390463759175846,
7.380994705495011,
-2,
6.8215989635363155,
7.719144252247754,
8.038319979430725,
7.723019001652311,
6.52993227219803,
10.283396100738257,
10.210179280252772,
7.581390333249478,
10.720309964215877,
9.890436853501035,
-0.8478264136070902,
1.9655641789002951,
8.323279416306038,
4.027840948016541,
3.46413735900936,
0.021739130434782594,
-1.0,
3.2697101448522385,
9.684417931700251,
-1.0,
5.207015935666234,
7.804322279268874,
10.253833175892673,
7.662534426827613,
8.160731444510073,
1.182374063391623,
-0.6707527009692655,
3.9254204384857267,
8.945468954659306,
-2.0,
0.3079252111653411,
1.7750496815407675,
8.16799764835462,
-0.7165313105737893,
4.55873055872616,
1.7107551006801138,
0.08422987826638113,
0.005434782608695704,
3.003309857147417,
3.001943257128482,
3.003309857147417,
10.432148439816917,
-0.7165313105737893,
7.836254349942785,
6.948262476772566,
-0.7610807068869145,
10.206356232979042,
7.56057706632801,
4.054365399458004,
8.788638965059972,
7.941697198296742,
11.092511807714557,
10.224543621017423,
-2,
8.103217300801113,
4.624705883612441,
7.1947421685623265,
10.170948541450214,
7.270145358492746,
3.0046721256326823,
6.301107080751192,
8.762953460921173,
11.366266521181045,
-1.0,
6.6920372589826425,
3.4356140584210246,
3.5568733032857196,
6.042426440154089,
8.546093555889469,
9.761553972685727,
-0.7165313105737893,
7.024180329150927,
7.872042560202698,
-1.0,
7.225680017189558,
7.727559771498218,
7.052927633305068,
6.399632641069223,
9.083742965579296,
7.4375857296150745,
8.28848951692274,
7.971921914769062,
-1.0,
8.582623554879042,
-0.9178564384568926,
6.293817381142746,
4.53346832665538,
8.323594634773427,
6.358448882117576,
-0.26352117732177716,
5.659416008517153,
9.679338111375504,
7.7729761739017,
3.001943257128482,
8.033547033756554,
9.075243030840696,
8.513457366641404,
7.970857709500519,
8.354956327777385,
0.08422987826638113,
2.3939375742217006,
7.01452929300477,
-0.9178564384568926,
...],
[0.00019340023398399354,
0.0003900560274720192,
0.0007008855166360736,
0.0010164677003237977,
0.001043289642007878,
0.0010292720092032076,
0.0013170769275456917,
0.001628187279793034,
0.0017478628696133175,
0.0018651901729329259,
0.002192735480982732,
0.002351617101510443,
0.002297234318913696,
0.0025724673130615243,
0.0027021038589836333,
0.0018678952721428244,
0.0010834584852390501,
0.00036884598128312314,
-0.00017895697622148275,
-0.0007674171236485723,
-0.0013937707085205943,
-0.0020121380251745245,
-0.0023572875275501967,
-0.0026368106701193167,
-0.0035204395176695606,
-0.004607006584516981,
-0.00593471681230988,
-0.006528273789862368,
-0.007187287997142151,
-0.007913864986082908,
-0.008609545180500638,
-0.009151589015677159,
-0.009712332247552089,
-0.010230134889545568,
-0.010695389618711883,
-0.01083936371076706,
-0.011932144585055707,
-0.013131275994269635,
-0.014414831545526923,
-0.015643867625636125,
-0.016727158188793115,
-0.0176689847719403,
-0.01900281680521103,
-0.020065265914124733,
-0.021465409924806035,
-0.02293132005589184,
-0.024020006429798325,
-0.02518780332882075,
-0.026328771169667184,
-0.027205096842255506,
-0.02802128007074126,
-0.029529827267027187,
-0.03082811633045058,
-0.03204471926190562,
-0.0332019402583104,
-0.033802299661404224,
-0.034806118178518114,
-0.03571064749291613,
-0.03698721887207447,
-0.03822620495884355,
-0.0392308508436391,
-0.03984804607481824,
-0.04085691167678248,
-0.04209858811693372,
-0.04305681500447787,
-0.04423167977775069,
-0.045272402372705016,
-0.04643779212704632,
-0.04774083657462375,
-0.04801602251660806,
-0.04841989504193586,
-0.0503854848520045,
-0.05238029878220997,
-0.0543107274996999,
-0.0566434316246335,
-0.059302448446212325,
-0.06180660647013269,
-0.06449845987805912,
-0.06651421145059608,
-0.06846713013133061,
-0.0704555615459606,
-0.07230316824231062,
-0.07447707931579099,
-0.07647075617292565,
-0.078469819100292,
-0.08090570592903447,
-0.08289633595847323,
-0.08516543002807814,
-0.08707389019354482,
-0.08902858966104366,
-0.09123657760167733,
-0.09369946603038799,
-0.09581373332578537,
-0.09809952385868036,
-0.10058579127596991,
-0.10304483080113074,
-0.10510149819337447,
-0.10729323264529013,
-0.1094593573052372,
-0.11149481232926171,
-0.11368752846603687,
-0.11603798034625919,
-0.1170778469246972,
-0.11873756274802849,
-0.11913360715505728,
-0.12017513238185903,
-0.1208439147788315,
-0.12195513371988523,
-0.12313960433743959,
-0.12449229219097746,
-0.12622740334516921,
-0.12750870996629127,
-0.12897317189817978,
-0.13014150138647484,
-0.13183920287660134,
-0.13309434920602556,
-0.13531421761416643,
-0.1375330834090683,
-0.13938810028210016,
-0.14157095431871075,
-0.14351423725673482,
-0.145251016661157,
-0.1471173526251382,
-0.14883424069454732,
-0.14996015136282256,
-0.15035272287146656,
-0.15071615664742716,
-0.15092791913091555,
-0.15156943161436634,
-0.15397593335661264,
-0.15658675284754442,
-0.15775471159133664,
-0.15857233432105963,
-0.159611569226145,
-0.16314670140391338,
-0.16599369626612978,
-0.16858016767566064,
-0.1709104491459562,
-0.17306166347079452,
-0.1751303920043698,
-0.17720892058300228,
-0.1796302307283363,
-0.1822780057879591,
-0.18427701102364485,
-0.18645419220263842,
-0.1889098474625191,
-0.19097274415664112,
-0.19279306077567113,
-0.19402919261544282,
-0.19517344468479245,
-0.1955213917044467,
-0.1966981061184335,
-0.19797358394111284,
-0.19961071832023922,
-0.20072503322291027,
-0.2012746963079573,
-0.2025898028920017,
-0.20476598042869298,
-0.20670129762222975,
-0.20843496090769723,
-0.20999427463379455,
-0.21212933616477367,
-0.21498874570781912,
-0.21823340244219355,
-0.22114077785799927,
-0.22436257443124133,
-0.22750443110950397,
-0.228316590891651,
-0.22866334455990772,
-0.2290829589277015,
-0.2293481364804465,
-0.22960260652335174,
-0.2303600437156114,
-0.2310057619291737,
-0.2333688081684513,
-0.235906610357353,
-0.23861459744001523,
-0.24113548092807302,
-0.2437155752509946,
-0.24552091624185082,
-0.24688028020178687,
-0.24830951322021916,
-0.2501901749646497,
-0.2535360606567515,
-0.25686917824508454,
-0.258177489860325,
-0.25993471003507734,
-0.2614142413303304,
-0.2630479715057436,
-0.26433974016500333,
-0.2658110435927794,
-0.2668309382840257,
-0.2681048751257896,
-0.2690491842410092,
-0.2706237284685392,
-0.27165767690574055,
-0.27170107310344527,
-0.27233574795328674,
-0.27297526670063615,
-0.2736011180003708,
-0.27601069416171553,
-0.27798423195420113,
-0.28104070374782597,
-0.28273505530425547,
-0.2834105155255427,
-0.2841743943670491,
-0.28524245276959775,
-0.2861271580322333,
-0.28757990378761583,
-0.28906655563643746,
-0.29116865349275384,
-0.2931057372758806,
-0.295559868740506,
-0.2977387166021563,
-0.30012826896889067,
-0.3023451854119414,
-0.3065129142883485,
-0.3106902952764084,
-0.3135375837678494,
-0.3172051190231053,
-0.3199028616646269,
-0.32230865371940953,
-0.3250606225496017,
-0.328036941958731,
-0.33057258445411847,
-0.3328686991214551,
-0.3354530277535715,
-0.3382994118305019,
-0.33789736157229655,
-0.33732818384908897,
-0.3369501566473995,
-0.33675834962789547,
-0.33930653146822265,
-0.34125948153793234,
-0.34208332739119846,
-0.34342917646602683,
-0.34482051175244366,
-0.3459389159600007,
-0.3471639243535665,
-0.3478501978847986,
-0.34846978312899046,
-0.34895449828643127,
-0.35035663795253463,
-0.350516129106501,
-0.350683314529427,
-0.3508464537190708,
-0.35067471791472793,
-0.3517052290292673,
-0.35304838405696876,
-0.35460779683505583,
-0.3562078335745286,
-0.35781609630275124,
-0.3597947225730609,
-0.3625631956688748,
-0.3650747294515396,
-0.36728208030398435,
-0.37028833330979016,
-0.37229767164392785,
-0.37383895881175494,
-0.374671746873493,
-0.37691001488339587,
-0.3791112538338088,
-0.38060205767349214,
-0.38207794171419573,
-0.38345704115567203,
-0.3847940187548787,
-0.3853037215064679,
-0.38675581321187424,
-0.3884032749190159,
-0.38962204994151556,
-0.391311663018491,
-0.3923864029235562,
-0.3929459709003553,
-0.3930997331723184,
-0.39382295711693044,
-0.39472792346614194,
-0.3950076867673884,
-0.39546312666797834,
-0.3959842189945765,
-0.39596453492581823,
-0.3961935964605836,
-0.3962631701176087,
-0.3963801198553042,
-0.39627557900391436,
-0.3957384724647622,
-0.39560557159132426,
-0.3952389137306306,
-0.39483407700823747,
-0.39481412313325376,
-0.39456591662996465,
-0.3945329497153291,
-0.39458363809637775,
-0.3941197849379012,
-0.3938855542521376,
-0.39343633042889786,
-0.39295935147188465,
-0.3928643862467651,
-0.3927049376628137,
-0.3941081941496362,
-0.3952505829402978,
-0.39636894029943437,
-0.3975534481083895,
-0.3984514933888284,
-0.39917240418531963,
-0.4003556837454515,
-0.40160063023030773,
-0.40028890894439534,
-0.39902770171020213,
-0.39932647433088736,
-0.39928235556458913,
-0.399475371102955,
-0.399397315963272,
-0.3998128047309746,
-0.40208689931718683,
-0.4035200608856453,
-0.40507828150406866,
-0.4066279626830847,
-0.40825370614327083,
-0.4096382250018329,
-0.41073904530994826,
-0.41244510825781794,
-0.4138897252701444,
-0.4149001919885088,
-0.41609007798048964,
-0.4174500038127208,
-0.4185426899046305,
-0.42045725513590876,
-0.421941468849262,
-0.4227189169186433,
-0.4226365614562024,
-0.42280329237239017,
-0.423165320803793,
-0.4234777164983961,
-0.4220679570898982,
-0.42080810748708686,
-0.4196852187837817,
-0.41928698478371196,
-0.419221250901015,
-0.42048642818723564,
-0.4221718306906171,
-0.42267772392325714,
-0.4225642717054849,
-0.421325632183801,
-0.42003594006876704,
-0.4199967585995958,
-0.41989904264412226,
-0.41992757138314735,
-0.4205931831361788,
-0.42110106815071185,
-0.4211919845821999,
-0.4211164944344888,
-0.42111306034617213,
-0.42118813440081604,
-0.4212508956159427,
-0.4214770389862307,
-0.42139113205682344,
-0.4214055562190319,
-0.4216715396991615,
-0.42061366782024384,
-0.42020716642049655,
-0.4198171886089858,
-0.41891478705624735,
-0.4177189601180841,
-0.4160857673043311,
-0.4150792048053472,
-0.41437339879553975,
-0.41344174749646634,
-0.4125658663308529,
-0.4109728174144952,
-0.4094170157165581,
-0.40796189424206786,
-0.40808521302765527,
-0.4075228695001681,
-0.40679445508190465,
-0.4063690969830069,
-0.4060937640207893,
-0.4057573247703112,
-0.40577195613666733,
-0.40641218966681697,
-0.40697861853944006,
-0.4068970495262564,
-0.40708632163503033,
-0.40954835551815005,
-0.4096022381995875,
-0.4097405602476681,
-0.41036625229239226,
-0.4115755154222763,
-0.4129065418802563,
-0.4140952351530442,
-0.41565183572231224,
-0.4173678678611636,
-0.41695370562156253,
-0.41693325232310907,
-0.4165820639221827,
-0.4172741014842704,
-0.4179507516711049,
-0.41848451781021034,
-0.4181246991287444,
-0.41821876184683243,
-0.4178956785942961,
-0.4177218481848757,
-0.4175995405937602,
-0.41722705173922014,
-0.41685539401958654,
-0.4171199259937139,
-0.4163819188367754,
-0.4162034394660565,
-0.41554466344986135,
-0.41728650083922747,
-0.41886790720651035,
-0.42015168326486485,
-0.4206838747968514,
-0.42180093908356503,
-0.42339016805218305,
-0.42413632662173123,
-0.42429070689400666,
-0.42443742079565955,
-0.4244310406288989,
-0.42526848194045624,
-0.4256705670720099,
-0.4261285354713529,
-0.42559789916573265,
-0.4248442480881493,
-0.42401831853090555,
-0.42318071042657235,
-0.4220235294807408,
-0.42078522520511463,
-0.4194766914731549,
-0.41801272046634114,
-0.41691562889524514,
-0.4153905944199927,
-0.41408787598120267,
-0.41268433374919056,
-0.41121318555418424,
-0.4126835884994373,
-0.41300756799522786,
-0.4138120831251843,
-0.4147998820836047,
-0.4161288393973535,
-0.4175828913025091,
-0.4182431825077702,
-0.41869281991678364,
-0.41942031908071137,
-0.42096075484549916,
-0.4215729376082513,
-0.4221110858224699,
-0.4228425212814763,
-0.42370187651850616,
-0.424139010157974,
-0.4228654453759963,
-0.420706641992062,
-0.4195024104004393,
-0.41957894021569325,
-0.41942085856226224,
-0.41824220089969044,
-0.4172316368571194,
-0.41563915574506083,
-0.41438847464457534,
-0.4125493432082206,
-0.41115137976134647,
-0.4099010169159989,
-0.40906027823223295,
-0.4087230051575696,
-0.40888906395370783,
-0.4119016459738746,
-0.41410366510349084,
-0.4161248217614748,
-0.4179288478234705,
-0.4191728979231517,
-0.4210605361195597,
-0.42132813756083765,
-0.4224012032081012,
-0.4245877008889792,
-0.42684121077740234,
-0.4284402683353088,
-0.42940502585975165,
-0.43034687435525454,
-0.432123736360851,
-0.4335102172097436,
-0.4350754144533343,
-0.4365860064953712,
-0.43768456517949667,
-0.43937971517044794,
-0.44092034700488547,
-0.4426550281639956,
-0.4434205356769842,
-0.44360536368841097,
-0.44346080901218843,
-0.4435685261446578,
-0.4469635980761599,
-0.45036644607279386,
-0.4532139098162077,
-0.4553594917592455,
-0.4569160055005912,
-0.45697254854738134,
-0.45612722484973983,
-0.4546258279627996,
-0.45482572474099253,
-0.4554480739953813,
-0.45640353087386326,
-0.4577028609830323,
-0.4586124860476049,
-0.4585984092965165,
-0.4584872923597065,
-0.4583495849661872,
-0.4582352707109234,
-0.45796000331389647,
-0.45823646369476123,
-0.4574485632676334,
-0.457114889803922,
-0.4565047305429765,
-0.4558305488225584,
-0.45613282883820744,
-0.45323406005734723,
-0.45041714246680686,
-0.44882986252439316,
-0.4495848118107283,
-0.4507583272801399,
-0.4517606461927123,
-0.45284980665250646,
-0.4531172291432918,
-0.45315449392945817,
-0.45368589293331396,
-0.45408406560335196,
-0.45374192154596316,
-0.45389692618855954,
-0.45364140799877123,
-0.45301739091258136,
-0.4527455677688915,
-0.4527326445331469,
-0.4524764162746611,
-0.45227510052276704,
-0.4522532180027791,
-0.451942121416454,
-0.45082773901817585,
-0.44974102576184666,
-0.44947099263082296,
-0.44964154210425716,
-0.44961430523299784,
-0.4491984098557243,
-0.4489470869458309,
-0.4502938192492533,
-0.45170241508869124,
-0.45342595879651953,
-0.4554403236199991,
-0.4582256007826455,
-0.46091830501883696,
-0.4623588938621662,
-0.46368700395151397,
-0.46483241895311866,
-0.46605748218870585,
-0.4679532463467473,
-0.4694349186659626,
-0.469837574557023,
-0.47055443798857827,
-0.47132081381461133,
-0.4713676211637378,
-0.4712042396480947,
-0.470717551240229,
-0.4710906575314789,
-0.4709287342967218,
-0.4714734059824464,
-0.4707511508209157,
-0.47036802267272615,
-0.4706227470215474,
-0.47099836879297424,
-0.4715447599913449,
-0.47117691490547275,
-0.4717837346318258,
-0.47142178956263053,
-0.4720331746128681,
-0.47206466612205356,
-0.47228039503992125,
-0.4727835347741447,
-0.472657266511237,
-0.47205919781073613,
-0.47196169724018333,
-0.47348592857322297,
-0.4740210096925715,
-0.47484143220243535,
-0.47485267445090806,
-0.4754722963573553,
-0.4754185922988263,
-0.47483230554141276,
-0.4745375448809294,
-0.47480159408594147,
-0.47454319427123914,
-0.47577136625411803,
-0.4775478269677846,
-0.4784076868386448,
-0.4777158919073069,
-0.4773657085976441,
-0.47659871897787176,
-0.4762982326952802,
-0.4732275686380412,
-0.4710264699653844,
-0.46930398630709247,
-0.4675279740956698,
-0.4661437874828714,
-0.4654123326903545,
-0.4643236213735872,
-0.4636306402825388,
-0.46207266244335543,
-0.4591852727863029,
-0.4562752241210313,
-0.453234463964362,
-0.45093411409908213,
-0.4518481885694803,
-0.45277001711992665,
-0.45393831930559775,
-0.4549796734749465,
-0.4565040258295032,
-0.4564222163248121,
-0.45647744342253793,
-0.4553882969373798,
-0.4545151513804559,
-0.45365799848036137,
-0.45302796897170133,
-0.4520171576161464,
-0.4519186518542154,
-0.4511656473519825,
-0.4510351078103196,
-0.45179774106624326,
-0.4527649515109975,
-0.45352345477258466,
-0.4536658760593506,
-0.45375961840179974,
-0.4546718880149451,
-0.4549632246484025,
-0.4548399843587195,
-0.4543298111681785,
-0.45455681430230765,
-0.4544824702163098,
-0.45446701351865726,
-0.45407481413626943,
-0.45255059820350557,
-0.45125492722120747,
-0.45088641691978004,
-0.4503933420234059,
-0.44961694462109303,
-0.4488426459838316,
-0.44835682788931513,
-0.44842282771116465,
-0.4505714784051054,
-0.4518073807095635,
-0.45242443600152654,
-0.4538285108830576,
-0.4548057192130799,
-0.45539451601069125,
-0.45576091823131987,
-0.45715741054281983,
-0.4583059975245105,
-0.45898158615776047,
-0.4597367399893046,
-0.46165570688168517,
-0.4606913780824414,
-0.46067467946586915,
-0.4601876343854668,
-0.4591114629597028,
-0.4586530990147697,
-0.45694246765577656,
-0.4571382055900578,
-0.45790575921247145,
-0.45853327606927546,
-0.4591257275177751,
-0.45911615754450813,
-0.4591815158422692,
-0.45944628906969465,
-0.46009897672892225,
-0.4607122182482661,
-0.4616219802137226,
-0.46285374576040406,
-0.46413964913405337,
-0.46374840107248994,
-0.46419971221539713,
-0.4657261279094624,
-0.46806223187188956,
-0.4703283157783146,
-0.47186021661790295,
-0.47394454730304003,
-0.47604622792689166,
-0.47871501385898113,
-0.48215569937261016,
-0.48543862118931524,
-0.4876501786364998,
-0.49000347033298175,
-0.49141887171348314,
-0.49288392659588637,
-0.493893487091672,
-0.4958848637557353,
-0.4962402226334059,
-0.4966722173090992,
-0.496839720644875,
-0.4981441234997233,
-0.5001145494753185,
-0.5023824287762436,
-0.5042178266985855,
-0.5056609718575997,
-0.5071175304583756,
-0.5086385675762481,
-0.5100065948716714,
-0.5120102905969972,
-0.512339820168659,
-0.5132692810433445,
-0.5141395244752021,
-0.5155282343611993,
-0.5165628119866001,
-0.5169085326728372,
-0.5169482937080128,
-0.5172805201082776,
-0.5177365537498397,
-0.5174321893387965,
-0.5177899913704656,
-0.5203347078097543,
-0.5217730865654368,
-0.5218289153226349,
-0.5214349894390397,
-0.520838392557955,
-0.5204200009687194,
-0.5191352808855505,
-0.5176770480385045,
-0.5187513068269756,
-0.5194221151646288,
-0.520318134199821,
-0.5213858239386349,
-0.5210209142934481,
-0.520808422715698,
-0.5205946801905614,
-0.5204244591902453,
-0.520441025835296,
-0.5217047612769508,
-0.5225138953823435,
-0.5234957336426869,
-0.5237372859364637,
-0.5247546261872509,
-0.526093303679827,
-0.5274764825123609,
-0.5289044828784436,
-0.5302071078930408,
-0.5321807404153088,
-0.5318246039344448,
-0.5318130843669782,
-0.5321421526736474,
-0.5320603554797295,
-0.5327723310217622,
-0.5334955024119453,
-0.5341783605574821,
-0.5344977026528576,
-0.5350264928857213,
-0.5368884776045012,
-0.5367729706703706,
-0.5359098117970812,
-0.5355848555680385,
-0.533975249776412,
-0.5328327322680981,
-0.5313429534093376,
-0.5333572895484723,
-0.5344487336081037,
-0.5355526188281934,
-0.5367874524366282,
-0.537504125263747,
-0.5387475258939705,
-0.5399501888949747,
-0.5398020278567155,
-0.5396337674556484,
-0.5395590878194391,
-0.5394678961815923,
-0.5393309776310699,
-0.5388353252811187,
-0.5384330196659702,
-0.53876681996023,
-0.5384533420530176,
-0.5401939979444523,
-0.5420746593767729,
-0.543048043265825,
-0.5427055478779585,
-0.5428400194729041,
-0.5427449037933595,
-0.5423819651556736,
-0.542101226419306,
-0.5414967611523923,
-0.5416177242713168,
-0.5410135376024653,
-0.5406779123475718,
-0.5400711800917898,
-0.5386096884045591,
-0.5380017289010111,
-0.5370442593440399,
-0.5364159056766092,
-0.5354467404064678,
-0.5346415230449296,
-0.5336370030415233,
-0.5329502458448524,
-0.5316182263096112,
-0.5303616190416554,
-0.529364284936649,
-0.5285478626973849,
-0.5272897281061594,
-0.5262347121359834,
-0.5252520735587001,
-0.5244625030505353,
-0.5254514455253835,
-0.5253863747177204,
-0.5255344553968699,
-0.5261577074687168,
-0.5261926791504704,
-0.5295536240665619,
-0.5315100948139888,
-0.5322502826774357,
-0.5337794651834783,
-0.5345581166046236,
-0.5353796906408556,
-0.5364873610934816,
-0.5373360298063552,
-0.5374286802685524,
-0.5377352492924415,
-0.5380296070010766,
-0.538728870534713,
-0.5373302109995443,
-0.535544482809222,
-0.5346103367728061,
-0.5335483153397298,
-0.5322192076579515,
-0.5305256131705746,
-0.528795838455361,
-0.5270351445173244,
-0.5250287852056369,
-0.5228927312901325,
-0.5210081180152946,
-0.5188877045379643,
-0.5167813574989867,
-0.515930661245349,
-0.5143082164384346,
-0.513118118648145,
-0.5114537278576606,
-0.510413011934866,
-0.509054244157053,
-0.5070861563020895,
-0.5051882714787405,
-0.5026300309976424,
-0.5004450920309705,
-0.4979766288022849,
-0.4952629322660515,
-0.4930967921481318,
-0.49207032509579834,
-0.4909372900823246,
-0.4899024025127285,
-0.48880129732165417,
-0.4880648670503131,
-0.48779785844873275,
-0.486243438890824,
-0.485023457517617,
-0.48734480084661747,
-0.48837908597763063,
-0.4891357179434677,
-0.48972726823606316,
-0.4912089797547423,
-0.4909717965848752,
-0.49092944856324505,
-0.49111976428687093,
-0.49102181333144723,
-0.49085297243943826,
-0.490409547009719,
-0.4905546527594917,
-0.49141863955886567,
-0.4919261222477977,
-0.49244520634107225,
-0.4936243314727542,
-0.493803948868163,
-0.4945254197272691,
-0.4934731774231064,
-0.4922481732007629,
-0.49193339200363384,
-0.49157572680004535,
-0.4900327594957914,
-0.48846820352204195,
-0.48697672459919167,
-0.4859397335109285,
-0.4853064687690025,
-0.48417604866451835,
-0.4830862146448362,
-0.48272380774439494,
-0.48255697237943623,
-0.48251772106446367,
-0.48247137248370797,
-0.4825197054639904,
-0.4821686813957464,
-0.4810806344825364,
-0.4798139080131,
-0.4797929048041826,
-0.4795480946106537,
-0.4793188378717313,
-0.479480827299583,
-0.47889447676697267,
-0.47827771857600504,
-0.47730645341123135,
-0.47633918388121094,
-0.4758329709084392,
-0.4752540160827838,
-0.4753523661956129,
-0.4745787851307405,
-0.47383009527446274,
-0.47302597754845854,
-0.47284853839557955,
-0.4732432191745756,
-0.4737935033490694,
-0.47446904065362455,
-0.47528547212224287,
-0.4762472291183211,
-0.47634231919991765,
-0.4759443030811653,
-0.4761261090563753,
-0.47687662732624847,
-0.4767049515899392,
-0.4760716164939692,
-0.47560859648475295,
-0.47604607992816766,
-0.4756498495855088,
-0.4759851318913265,
-0.4763527237580196,
-0.4766636288752105,
-0.4768346856640773,
-0.4766092516535483,
-0.47707308744054955,
-0.47732811120737206,
-0.47707904624790615,
-0.47700544473142836,
-0.47655164882767553,
-0.4759483871042948,
-0.4772563809647481,
-0.4778147491139023,
-0.47824862942697993,
-0.47858351378514746,
-0.47886381267835704,
-0.4796641940944727,
-0.47940360071241545,
-0.4800686831193148,
-0.48146348903004266,
-0.4820855529196741,
-0.4839821281763159,
-0.4860517234224659,
-0.48732640965436785,
-0.4880739888602159,
-0.48894083210313255,
-0.4893674142156195,
-0.48974962995044197,
-0.4895555353737259,
-0.4895637089702986,
-0.4900387698829209,
-0.49029639179984086,
-0.4903854782521919,
-0.4895403004551425,
-0.48937737090191963,
-0.4886165869443388,
-0.48759723992623166,
-0.4867253410321463,
-0.4853864924326022,
-0.4846087693803913,
-0.48326545957577627,
-0.4832550299548421,
-0.48287766579006086,
-0.4822439377625575,
-0.4822251480812024,
-0.48233792916776935,
-0.48202437785429747,
-0.481832086533578,
-0.4820740673868064,
-0.48134254948879907,
-0.48076323781314195,
-0.4796936666799902,
-0.47836878171107694,
-0.4772873374242466,
-0.4762478569305725,
-0.4751030477544668,
-0.4737933584846753,
-0.4725758339219997,
-0.47501338916296176,
-0.47696906040398324,
-0.47648045849538445,
-0.4751985248384666,
-0.474319243736615,
-0.4733463003099088,
-0.4725162284067098,
-0.4717534284798672,
-0.47107524544033685,
-0.4710481060612511,
-0.4715911589665184,
-0.47452021324534754,
-0.47774396976312045,
-0.48106511619962894,
-0.4816336138679708,
-0.48252294938921475,
-0.4832540823892131,
-0.48350439533650846,
-0.4832890042139557,
-0.4834044736058612,
-0.4850289963308914,
-0.48577322492110964,
-0.48711711883011155,
-0.48758217300837614,
...])
[28]:
gres.grids['Ery'] = t_ery.agent.critic(torch.tensor(t_ery.env.state_space.mean(axis=1),device=device)).detach().cpu().numpy().ravel()
gres = project_back(gres, 'Ery')
adata.obs['Ery'] = gres.embedding['Ery']
[215]:
gres1.grids['Ery'] = t_ery1.agent.critic(torch.tensor(t_ery1.env.state_space.mean(axis=1),device=device)).detach().cpu().numpy().ravel()
gres1 = project_back(gres1, 'Ery')
adata1.obs['Ery'] = gres1.embedding['Ery']
[33]:
sc.pl.umap(adata, color='Ery',s=50,title='',cmap='plasma',show=False)
plt.savefig('F7.png',dpi=600,bbox_inches='tight')
[216]:
sc.pl.umap(adata1, color='Ery',s=50,title='',cmap='plasma',show=False)
plt.savefig('F8.png',dpi=600,bbox_inches='tight')
[172]:
gres = lineage_rewards(gres, ['HSC_1','HSC_2'], ['Mono_1','Mono_2','DCs'], mode='Contribution')
Reward generating: 100%|██████████████████| 1163/1163 [00:00<00:00, 2446.68it/s]
Time used for generating rewards : 0.50 seconds
[218]:
gres1 = lineage_rewards(gres1, ['HSC','MPP'], ['GMP'], mode='Contribution')
Reward generating: 100%|██████████████████| 1699/1699 [00:00<00:00, 2497.06it/s]
Time used for generating rewards : 0.71 seconds
[173]:
t_mye = trainer('ActorCritic', gres, reward_mode='Contribution', X_latent=X_pca, num_episodes=5e3)
t_mye.train()
Iteration1: 100%|█████████████| 500/500 [00:03<00:00, 148.67it/s, E=500, R=1.50]
Iteration2: 100%|████████████| 500/500 [00:04<00:00, 103.11it/s, E=1000, R=2.98]
Iteration3: 100%|█████████████| 500/500 [00:05<00:00, 97.73it/s, E=1500, R=3.57]
Iteration4: 100%|█████████████| 500/500 [00:05<00:00, 87.66it/s, E=2000, R=4.13]
Iteration5: 100%|█████████████| 500/500 [00:06<00:00, 82.20it/s, E=2500, R=5.26]
Iteration6: 100%|█████████████| 500/500 [00:06<00:00, 79.24it/s, E=3000, R=5.24]
Iteration7: 100%|█████████████| 500/500 [00:06<00:00, 72.65it/s, E=3500, R=6.23]
Iteration8: 100%|█████████████| 500/500 [00:07<00:00, 70.50it/s, E=4000, R=5.86]
Iteration9: 100%|█████████████| 500/500 [00:07<00:00, 70.30it/s, E=4500, R=5.84]
Iteration10: 100%|████████████| 500/500 [00:07<00:00, 68.98it/s, E=5000, R=6.77]
[173]:
([-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
-1.0,
-0.7303062662743388,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-2.0,
0.15293603128073396,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
-0.8322059498408995,
-1.0,
-1.0,
-1.0,
-1.0,
-0.7426960858895953,
-1.0,
-1.0,
-2,
-1.0,
-0.8323150002058387,
-1.0,
-1.0,
0.026058631921824144,
1.3829519039438143,
-0.9386701501888537,
-1.0,
-0.8218457680455684,
-2.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
1.2479796632282603,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-0.9688499110743902,
-1.0,
-2,
-1.0,
-0.17840819555099152,
0.30285978486401555,
-2,
-1.0,
-0.9566632814389918,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
-1.0,
-1.0,
-1.0,
-1.0,
-0.7912215869868346,
0.48257672924902506,
-1.0,
-0.5262253480493764,
-0.02267429608293159,
-1.0,
-1.0,
-1.0,
0.3520678866144886,
-1.0,
0.013029315960912058,
-1.0,
-1.0,
-1.0,
-2.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-2.0,
-0.8218457680455684,
-1.0,
-1.0,
-1.0,
0.011792982982937517,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
-1.0,
-1.0,
-1.0,
0.1661431973993521,
-0.26620368983412,
-1.0,
-2.0,
-1.0,
-1.0,
-1.0,
-1.0,
-0.6754304664544102,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-0.9566632814389918,
-0.8979912660685001,
-2,
-0.7912215869868346,
-1.0,
-0.9075200612632439,
-1.0,
-1.0,
-0.0310425593748459,
-1.0,
-1.0,
-1.0,
0.5348121271323207,
0.3654146541916279,
-1.0,
-1.0,
-2,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
-1.0,
-1.0,
-1.0,
3.2190299023875717,
-0.8668411771428903,
-1.0,
-1.0,
-1.0,
-1.0,
0.4915076945449998,
-1.0,
5.205426892054861,
0.026058631921824116,
-1.0,
-1.0,
-1.0,
-2.0,
-1.0,
-1.0,
0.0,
-1.0,
-1.0,
-1.0,
-0.9566632814389918,
-1.0,
-1.0,
-1.0,
0.0,
-1.0,
-1.0,
-1.0,
-0.8375995221932201,
-1.0,
-1.0,
-1.0,
0.01954397394136806,
-1.0,
4.885040950641152,
-0.5043141107853206,
-1.0,
-1.0,
3.439555709755742,
1.0835257544710735,
-1.0,
1.7778777532538688,
-2,
-1.0,
-0.7287272962311542,
-1.0,
-0.7735339344704077,
-1.0,
-1.0,
-1.0,
-1.0,
-0.6892128530553348,
8.382493358475118,
1.4317315379651534,
-1.0,
-0.8218457680455684,
-1.0,
-1.0,
0.026058631921824116,
-1.0,
5.969275201045212,
3.927124454268081,
-1.0,
-1.0,
0.019543973941368142,
-2,
-1.0,
3.743242461062365,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
-1.0,
0.032573289902280145,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.0,
-1.0,
0.029315960912052186,
0.019543973941368142,
0.032573289902280145,
-1.0,
0.22329877465355535,
-1.0,
-0.9688499110743902,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
-1.0,
-1.0,
2.99410831429437,
0.022801302931596046,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
4.633571482907529,
-1.0,
-1.0,
-1.0,
1.1743007824580198,
-0.8755426684019076,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.9231116065599434,
4.495860846729423,
0.022801302931596046,
5.709396237042219,
-1.0,
7.454166571738374,
-2,
-1.0,
-1.0,
-1.0,
-0.9566632814389918,
3.479980730531745,
-0.6927482595676453,
3.4907361782357698,
-1.0,
-1.0,
-1.0,
3.995165098887372,
-0.5989014444668634,
-1.0,
-2.0,
-1.0,
-1.0,
1.8200568435126394,
4.1397163866303845,
4.22822485713346,
3.0779982184424197,
3.745577440984937,
-2.0,
-1.0,
3.687679510392802,
-1.0,
-1.0,
0.032573289902280145,
-1.0,
3.988274360107548,
4.748553972457177,
4.9703620655988665,
-1.0,
-1.0,
2.9408343776632564,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-0.6970825772162857,
-1.0,
6.718860853943092,
-1.0,
-0.8979912660685001,
-1.0,
-1.0,
1.944385458683326,
3.1221416458667886,
-1.0,
0.026058631921824005,
-1.0,
-1.0,
2.975346986614766,
-1.0,
-0.9036927788236973,
5.491292744908113,
-1.0,
3.1757888086688166,
-1.0,
0.02605863192182417,
4.95214991511473,
1.4385931174901625,
-1.0,
1.3136355737976269,
0.019543973941368142,
3.5650738272536766,
-1.0,
-1.0,
5.28905142069278,
-1.0,
-1.0,
2.278791857223476,
2.8619159557722345,
-1.0,
-1.0,
0.032573289902280145,
3.861287844110038,
0.019543973941368142,
0.026058631921824116,
3.671934841409684,
-1.0,
-1.0,
1.7273617422139615,
3.4506211146277797,
5.4768811027263435,
-1.0,
-1.0,
4.23653677244267,
-2,
6.040385410088042,
3.6656168041128288,
-1.0,
3.4119167068396594,
-1.0,
3.95181989339616,
3.104801657430019,
4.113968345129069,
4.485502439515063,
3.423404808347857,
-2.0,
0.026058631921824116,
-1.0,
1.2886654080967812,
-1.0,
0.3391855144431999,
3.710896427891074,
-1.0,
3.4084536051680168,
3.52353951161356,
4.068533425405829,
0.5521948805820447,
2.585128376693631,
3.214083618151164,
2.385887483150676,
4.0375158930332695,
-1.0,
-2,
4.913193934947029,
3.4299943242984665,
-1.0,
-1.0,
3.034089000018746,
-1.0,
-1.0,
3.840268722530894,
0.9225101295778142,
0.3922139104407912,
0.026058631921824005,
6.8971433950696746,
2.2355707657800035,
5.038437183039772,
0.019543973941367976,
4.158438261846797,
3.5888558522862395,
-1.0,
3.6130666690206277,
4.0889226671476,
-1.0,
3.70486101992693,
0.5126536546878322,
-1.0,
-1.0,
2.7034088871052457,
-1.0,
2.820940551352024,
1.084910607384594,
-1.0,
3.2058153344411715,
4.478000182137894,
2.296010525854755,
2.875804544722044,
1.3682601317272058,
1.411504899749651,
0.5533013470551849,
-1.0,
3.6902646535721018,
1.406735820735015,
-2,
-0.0032573289902280145,
-1.0,
0.0228013029315961,
2.9117651077231095,
-1.0,
-1.0,
-1.0,
2.69028469320963,
4.460656597887931,
-1.0,
3.190796579025076,
0.0228013029315961,
0.02605863192182413,
4.5023875282124415,
1.8968514982457023,
-2.0,
-2,
0.0228013029315961,
4.8791269874436605,
4.919554753896622,
0.01954397394136803,
-1.0,
-2,
5.892057036628467,
6.809120055190924,
0.026058631921824116,
4.041501547376971,
6.896507883759648,
-2,
5.082991314109917,
6.52145011127614,
1.1268664072721306,
2.21504231542174,
0.4238998584647326,
-1.0,
-1.0,
-1.0,
3.2160992033382096,
4.158220226862979,
0.9225101295778142,
-1.0,
-1.0,
0.02605863192182406,
2.993509553082194,
6.549747471579505,
-1.0,
-0.18252105267265872,
-0.9386701501888537,
3.195876453073919,
3.9330385157791876,
0.0032573289902280145,
-1.0,
-1.0,
3.2803829386300225,
4.074148099816181,
-1.0,
5.89167377838977,
-1.0,
3.396999302767813,
-0.5989014444668634,
3.9473908766541346,
2.520829447110745,
3.6417971314935347,
3.874697888111969,
2.874055435753021,
-0.8755426684019076,
5.2097384348149225,
-0.43111920717931174,
3.204351285992373,
4.7412858857627675,
0.0228013029315961,
3.1924442495003174,
-1.0,
-1.0,
-1.0,
0.0,
4.453784557585636,
5.054309221208266,
0.026058631921824116,
-1.0,
0.019543973941368142,
4.475144534527407,
6.103736852683404,
5.833340202531081,
0.4238998584647326,
0.0228013029315961,
-1.0,
0.4915076945449998,
-2,
5.513091663698702,
3.182273443814854,
-1.0,
5.700143211546942,
-1.0,
1.8807960346735246,
-0.00325732899022807,
4.132235065236946,
4.395319820258355,
-1.0,
-1.0,
4.6729073370766985,
3.999198608295247,
-2,
7.588776064334197,
3.0748700281065466,
-1.0,
-0.09050337808579778,
3.464435864000303,
3.8075847322800627,
-1.0,
3.343644925091152,
2.8755138335159307,
7.843940704659429,
-1.0,
-1.0,
-1.0,
-2,
0.0228013029315961,
-0.4189213107814026,
3.19542310792181,
-1.0,
3.6150413137776543,
1.411504899749651,
-0.8979912660685001,
-1.0,
-1.0,
0.25053407007317086,
-1.0,
-1.0,
3.5094066420295413,
3.9450297840729536,
3.4605611997070778,
0.01954397394136803,
3.925421071933546,
0.4915076945449998,
3.9417358927269337,
4.552465330254976,
0.026058631921824116,
-1.0,
0.0228013029315961,
3.1821376320942942,
3.696580867516099,
-1.0,
-1.0,
4.9292977577074,
3.834603385894369,
4.876069562616559,
6.134913041497637,
-1.0,
0.019543973941368142,
5.531597019552763,
6.200547695044953,
-1.0,
-2,
-0.8979912660685001,
6.169200257977811,
0.026058631921824005,
4.331992724646974,
-1.0,
4.011607223540102,
1.1635154306986708,
5.192920093609299,
3.1226722965650393,
5.344688937867477,
-1.0,
-1.0,
4.399264718707143,
3.295614805661976,
5.837702285429917,
5.451123239797944,
5.65640788685922,
3.192763672134928,
0.9225101295778142,
5.290744467735678,
3.2263725563324375,
4.056626680457368,
4.8172106469807545,
3.182961732479226,
3.5318502691638822,
0.026058631921824116,
-1.0,
3.5457205990381637,
4.2965771191518165,
3.1997852909083937,
1.091475337761067,
0.019543973941367976,
6.264483565987315,
4.347649817106077,
3.5838141220166575,
2.9658477482549612,
3.6722895390847006,
-1.0,
-0.8270638189402404,
3.167786084115646,
-2,
1.9882503789777495,
2.9620179055040867,
3.1870253040607133,
4.513564631068841,
4.022265584793493,
6.385708615308459,
4.021257132399155,
4.255759884032976,
-1.0,
0.026058631921824116,
2.4498877246600483,
-0.9386701501888537,
4.500765537885558,
0.9225101295778142,
-1.0,
0.026058631921824116,
3.649669657174592,
3.711977154889515,
2.804999198583869,
3.750625873469198,
3.128096424534859,
-0.8668411771428903,
0.01954397394136803,
5.750493693602706,
-1.0,
4.335687909305411,
3.7127191652232745,
3.124283479365795,
3.7092117183727793,
-1.0,
-1.0,
3.0832270812675575,
0.5971923645940189,
0.0228013029315961,
-1.0,
3.6689583563103185,
3.7434675311104972,
4.0258778217369136,
3.7644877268516193,
-2,
0.8576629730639669,
2.285529438607476,
3.8423178336409505,
3.1506905755949792,
0.9225101295778142,
4.518972574310247,
-1.0,
5.810972318066323,
0.019543973941368142,
-1.0,
4.706929709283036,
3.3531192366567444,
-1.0,
-0.9566632814389918,
5.69765001561417,
-0.8979912660685001,
-2.0,
5.5431584408684715,
-1.0,
-0.21918976241121946,
3.161713681013343,
3.6685826415556004,
0.019543973941368142,
3.257437434388226,
2.852236940024098,
0.0228013029315961,
4.438908527144097,
4.8236455680362464,
3.814870248105471,
0.032573289902280145,
-2,
-1.0,
4.325344437262492,
-1.0,
3.3539589040545,
0.5281719357939458,
4.043300270707054,
-0.8979912660685001,
4.928187759570303,
6.385151055145102,
1.2611371689246988,
-1.0,
0.0228013029315961,
-1.0,
6.269051836662111,
3.367659445169796,
1.2289779501620703,
3.2195680770070227,
1.3588933674031658,
4.1470524287583395,
6.026718785611954,
-1.0,
3.713300237080887,
-0.44587933734516494,
4.780189388461006,
3.176650163344002,
3.736828713589182,
2.8485615099808164,
0.019543973941368142,
4.854950539026996,
0.026058631921824116,
4.0277698520934635,
1.4317315379651534,
0.019543973941368142,
3.148605064584543,
-2,
5.036861602464654,
5.524437542134084,
3.3098223910652873,
-1.0,
6.389303834235407,
0.01954397394136806,
3.297578603044172,
-0.7962451992878128,
6.009861487240233,
4.291430917002373,
3.2503556728918164,
3.529326130394426,
5.909771876880994,
7.5045582134468205,
0.026058631921824005,
2.7866257602262854,
3.3836285506165478,
6.274524942352274,
3.6842443951734474,
4.860999646314627,
5.039466454160345,
3.6411661961392032,
6.781132108182231,
0.02605863192182417,
-1.0,
3.291373596590594,
0.026058631921824116,
4.306288331412522,
4.674289874327283,
0.01954397394136803,
5.048888868091991,
-1.0,
2.7866257602262854,
3.2693430753562986,
3.723007556809458,
0.026058631921824116,
4.42299636378294,
-1.0,
5.315750231768547,
3.234940747289817,
5.449680146632415,
0.0228013029315961,
4.577934283010914,
5.424269692930218,
0.019543973941368142,
0.02605863192182417,
3.373265572526089,
0.0228013029315961,
-0.9386701501888537,
4.334815663793838,
3.7705262167934817,
7.641223598347184,
-1.0,
3.7432387264087823,
1.944385458683326,
6.175819071491592,
4.8984894773397345,
6.031425132795127,
-1.0,
7.019834667213416,
0.032573289902280145,
5.527527400883814,
0.3239831130781332,
3.5778150468810614,
5.787523283478762,
4.065350110144454,
4.582458566943745,
3.207319305651815,
3.647369257661038,
5.892524632425094,
3.1674610478217944,
3.871612196179559,
0.026058631921824116,
6.362451321629855,
3.109880504535175,
3.1478424602192066,
5.233079797884833,
4.492731761405192,
2.601981497202203,
-1.0,
0.026058631921824116,
3.3029073348365765,
0.032573289902280145,
5.365322405758015,
3.939530413408617,
-2,
0.019543973941368142,
5.095949740864438,
4.283285646143797,
-1.0,
5.385573122155526,
2.895457221419977,
1.0133416273949503,
-1.0,
4.356494597121301,
2.8713222001904755,
3.74908884671793,
6.5728255385654135,
3.405185490352025,
3.911228978673801,
3.2160992033382096,
5.413705755243415,
3.232929971633492,
2.9644835496923037,
3.231333507394564,
3.4523177555444375,
4.01138284041568,
3.6187584579759715,
3.749437892953946,
0.02386447036929873,
2.7859049421889015,
6.945503309786654,
3.611561805736961,
4.823278156680619,
0.032573289902280145,
0.0,
5.147770027805533,
-1.0,
3.28033492875623,
3.3746384747713547,
4.044924092361704,
5.7968505070360505,
5.409707430182173,
3.202182485979637,
6.191024050849517,
4.154854422113275,
-1.0,
4.417201286971618,
-0.36658000307856786,
6.888783135595107,
-0.08918569248910602,
5.32519263003879,
-1.0,
-1.0,
7.389634610369094,
-0.026058631921824116,
5.097656179158671,
0.0228013029315961,
-1.0,
0.0228013029315961,
-1.0,
5.332831481651945,
-0.8482694364230224,
5.3558392153622485,
3.8504960753023325,
0.026058631921824005,
6.008773224022318,
3.216008255009106,
3.7707817507700865,
-0.9036927788236973,
3.6912098451551403,
0.0228013029315961,
5.090696719234663,
0.026058631921824116,
4.684651673075877,
-2,
4.289006517097092,
0.019543973941368142,
0.019543973941368142,
3.489109383562546,
3.1380003276493738,
6.230081861588587,
0.8926062500781364,
4.046350347240104,
0.01954397394136803,
4.547447891309287,
4.087477039577492,
-1.0,
3.3681369351315387,
3.8487052473546712,
5.424286330525371,
0.0228013029315961,
2.9516705236349847,
6.086128911266965,
8.244755412320156,
3.7300573669727113,
3.206224486554822,
5.7781437891588,
5.963211750174501,
4.759181825835913,
3.7920476909666956,
6.611955196490501,
-2.0,
4.266331114823554,
-1.0,
-2,
2.7878533052357937,
5.658283377013905,
6.064813403254681,
4.536751686362193,
4.987139349005272,
4.610286355322604,
0.026058631921824116,
0.0228013029315961,
0.019543973941368142,
5.377372694825786,
0.032573289902280145,
5.419079258067828,
3.9435606964570202,
5.561718617821901,
1.0963610507903236,
5.797794754661722,
5.394915523266755,
3.723138035690867,
-0.11039947100166791,
0.026058631921824116,
3.874030319182368,
4.703605109727991,
5.322119123910623,
-1.0,
5.7463715195104825,
5.299050542560208,
7.706647925455157,
0.02931596091205213,
3.2051808568971243,
0.029315960912052186,
0.0032573289902280145,
4.1247995681586875,
4.590141544314286,
4.015231009593098,
0.026058631921824116,
-1.0,
5.823659179802336,
-2,
5.063015451849181,
0.01954397394136803,
5.809836569650008,
4.21309419261249,
3.6656168041128288,
0.4027557594103994,
2.3811317186169387,
2.9165875185277113,
3.5851722144493134,
4.727155519400811,
0.0228013029315961,
6.382157137062611,
6.0651749476621415,
0.019543973941368142,
-2,
7.4715206388819695,
0.4915076945449998,
3.1939738235862105,
6.641059172431854,
-0.7959825321370002,
1.7977217709904822,
4.0224172329681975,
5.773909309437711,
...],
[-9.705509059131146e-05,
-0.00029163724691607057,
-0.000228340322061209,
-0.0001162240105990658,
8.956428405297863e-06,
3.73781913086472e-05,
7.650316392071501e-06,
-0.00010416590389458933,
-0.00017870382518335538,
-0.00024421379189203715,
3.158104648780843e-05,
-0.0003002821830964182,
-0.0005457983643726322,
-0.0008143563555937244,
-0.00105542378150671,
-0.0013292879359487002,
-0.0018985062583367516,
-0.002496785824036607,
-0.003329561322940716,
-0.004296016583008828,
-0.0050039495326255215,
-0.005938249704310157,
-0.006458403406226151,
-0.00693510476896673,
-0.007586364712603509,
-0.008800271245296976,
-0.009946777003004054,
-0.01098619983505103,
-0.012106059993121412,
-0.01307596421220831,
-0.014439118481666222,
-0.01582039437105797,
-0.01721247867945323,
-0.018497956266229073,
-0.01979152123915513,
-0.02106960765504264,
-0.022346454672252197,
-0.023796373628749333,
-0.025570242755669367,
-0.027408288923196716,
-0.028936353298282882,
-0.030609330671424646,
-0.03202675971558492,
-0.03372094921474602,
-0.03532469171031238,
-0.03694212514415584,
-0.038780831127007066,
-0.04021308115571346,
-0.04139683028054593,
-0.042635061175548994,
-0.04401184170620575,
-0.04517268890073945,
-0.04607828277013098,
-0.04747763031297016,
-0.048576896586072664,
-0.04985705472237067,
-0.05129809906006024,
-0.052545940093900415,
-0.05383358949089261,
-0.05499754325445385,
-0.056200775911573686,
-0.057351686301939986,
-0.05856885080973082,
-0.060495913452034936,
-0.06266237077513845,
-0.06498017751686289,
-0.06696040728981248,
-0.06901199790635185,
-0.07094921764666323,
-0.07290599660525533,
-0.07502697270977064,
-0.07673513447302804,
-0.078801565838684,
-0.08107905875192603,
-0.08357295795374899,
-0.08577054199649214,
-0.08970689922360534,
-0.09209704338549589,
-0.09471432089153746,
-0.09765411119408508,
-0.10018093444152043,
-0.10264344217337319,
-0.10506586428431038,
-0.1076703987019025,
-0.11030745048217762,
-0.11273351094323719,
-0.11498349912258321,
-0.1169767326837368,
-0.1186496841402808,
-0.12033568276509636,
-0.12209252766050169,
-0.12374481141587974,
-0.12512446122488158,
-0.126864764379811,
-0.12861324039192493,
-0.13306749725000103,
-0.13762664933341504,
-0.14197738904397755,
-0.1463756660515851,
-0.15009781692378843,
-0.1537446277249193,
-0.15680632138488632,
-0.15964778163549057,
-0.16207677780612476,
-0.16454695548344697,
-0.16679282159905037,
-0.16880856658462584,
-0.171141588408914,
-0.1734519731010705,
-0.1758887402564964,
-0.17845069350688933,
-0.18143398232241306,
-0.18446430478140646,
-0.1872709535467298,
-0.18966761124065842,
-0.19239921030870746,
-0.19429755711738578,
-0.19632243833604843,
-0.19835652433887196,
-0.20027691558440325,
-0.20260629398884972,
-0.2048306136980284,
-0.20699666334255098,
-0.20976976475217185,
-0.21193099500231694,
-0.2143492936997144,
-0.2165422128348535,
-0.2184396043693464,
-0.22028962274383146,
-0.222492324734635,
-0.2245467249431037,
-0.2267983968216612,
-0.228976450769369,
-0.23138140658162323,
-0.23322875961188652,
-0.23513832515678362,
-0.2370114158796325,
-0.23892455339938595,
-0.2407973853280906,
-0.2447844652626028,
-0.24874465393539716,
-0.251949015496958,
-0.25515339366852713,
-0.2583166298697211,
-0.2604396144293416,
-0.2627594121042843,
-0.2673380581046378,
-0.2716392400332003,
-0.2757490064556768,
-0.28025881706934114,
-0.2849832598166131,
-0.28985662924026256,
-0.2940986348037018,
-0.29763065456150706,
-0.30201382880811634,
-0.3061661514458827,
-0.31042201140062836,
-0.3150276059353763,
-0.31716824113053005,
-0.3187785228692324,
-0.32086645028986704,
-0.3232563957541007,
-0.3253500469370657,
-0.3277040173416092,
-0.32952080146031876,
-0.3310437818932485,
-0.332229772455008,
-0.3350116393469558,
-0.3368208135759107,
-0.33761360302242593,
-0.3384024285217086,
-0.34287065714848636,
-0.346530613879376,
-0.35065496890953507,
-0.35496156299675774,
-0.3568384745731199,
-0.35859557623855004,
-0.3603243733646052,
-0.3623684783454308,
-0.36350069174937316,
-0.3645895897460287,
-0.3656967659013215,
-0.36710636936830077,
-0.36791538563957377,
-0.368386661119785,
-0.37100451393126294,
-0.3728985189118271,
-0.37546746926751673,
-0.3771266292756866,
-0.37865769291618867,
-0.380574039494752,
-0.38151871921259195,
-0.3823708561343932,
-0.3830280675437618,
-0.38415485323238724,
-0.38521494688853136,
-0.38722541740688865,
-0.3887296522368731,
-0.39067649361354045,
-0.39293619035956884,
-0.3952043722975377,
-0.39613904908831743,
-0.39689724717297303,
-0.39772666164626036,
-0.3984887710715076,
-0.3992748349852579,
-0.4002135765053313,
-0.4016674814263973,
-0.4033419260732128,
-0.4045551757519478,
-0.40603623716061404,
-0.40720960595592826,
-0.40845767669770167,
-0.40977261307665286,
-0.41067696346456245,
-0.41153060744152825,
-0.41341390324827665,
-0.41493976923456444,
-0.41685752956636246,
-0.4188890058211948,
-0.42116211080753835,
-0.4233469090171954,
-0.4248710270426432,
-0.42652935313416035,
-0.42744222119049574,
-0.4275614096266365,
-0.427486866680247,
-0.4272931889868032,
-0.4270180531636248,
-0.42952071119883584,
-0.43243305203409227,
-0.4335362104128378,
-0.43449958757686863,
-0.4365228000595928,
-0.43734684997779005,
-0.43852352238607367,
-0.4392346112055322,
-0.4407132632813977,
-0.4418940975711461,
-0.4430303013596423,
-0.44436715573987556,
-0.445570703230963,
-0.4454736114574,
-0.44531701157762227,
-0.44534572263084105,
-0.4452615258894825,
-0.44558606221412134,
-0.44613602485024767,
-0.4468078033341469,
-0.4469240326814288,
-0.4472507728176089,
-0.44749255792017656,
-0.4479113782111535,
-0.4493291408658436,
-0.44977965600154884,
-0.4513136681281306,
-0.45147691649009425,
-0.45146184866031597,
-0.45153060576199083,
-0.45153957298173697,
-0.45145871557116823,
-0.45332731630140255,
-0.45502716140553395,
-0.45693876969240127,
-0.4587104386516899,
-0.4608697337007868,
-0.4635046285277472,
-0.46530575504664945,
-0.46704093084743165,
-0.46827950118661416,
-0.4694587995458353,
-0.4709991344610318,
-0.4727379544730452,
-0.473933902962475,
-0.4750883530036128,
-0.47651515828601904,
-0.47761976326403244,
-0.47882229801886017,
-0.4797930242944595,
-0.4816115822113745,
-0.4835880681960391,
-0.48525134162735584,
-0.48705384998965745,
-0.48697308267256856,
-0.48851670421437154,
-0.48880835532436123,
-0.4887768163133949,
-0.48835570645134085,
-0.4892243838970009,
-0.49003399880536624,
-0.4906740125462332,
-0.4916969957711989,
-0.4926746857810896,
-0.49399174141741165,
-0.49591365797735343,
-0.49756763276159766,
-0.49964464582221213,
-0.5012232688350521,
-0.5025540003326165,
-0.5039156851272677,
-0.5058366652543734,
-0.5074380394055759,
-0.5091770896765732,
-0.5109598628089703,
-0.5119723085014867,
-0.5127697465252482,
-0.513472728534981,
-0.5146799741600178,
-0.5151433963698299,
-0.5160253597325624,
-0.5166947351159064,
-0.5171111602316399,
-0.5178909530079812,
-0.5181702987042335,
-0.5186592066892813,
-0.5192705934232261,
-0.5189508100609836,
-0.5188299283146414,
-0.5186075689331446,
-0.5183139650350884,
-0.5181054944082543,
-0.5180810458375039,
-0.5184891839900074,
-0.5192019965229497,
-0.5202731709528143,
-0.5210435626649791,
-0.5214664086257631,
-0.521812303148949,
-0.522401789592532,
-0.5228927537480926,
-0.5224892029818432,
-0.5222621968396757,
-0.5219107271187715,
-0.5213322393048253,
-0.5218564327745343,
-0.5236545260655643,
-0.5246618799992623,
-0.5247563406393012,
-0.5242327965440606,
-0.5228310003932858,
-0.5212815737407667,
-0.5196024156613008,
-0.5182413715489549,
-0.5183101372992995,
-0.5184325559626641,
-0.5186854253979692,
-0.5184541263201146,
-0.5183408402828591,
-0.5181485155434485,
-0.5180100294962545,
-0.5182449331432526,
-0.5199187224107181,
-0.5209733509890446,
-0.5218688015692282,
-0.5225208246439779,
-0.5251326934011215,
-0.5276634968950228,
-0.5293257546668954,
-0.5308271946196237,
-0.5325166598137275,
-0.5332843446831083,
-0.5341415969709231,
-0.534071971013027,
-0.534377121218749,
-0.5345699242475277,
-0.5349627373083465,
-0.5349450575586868,
-0.5352567127287715,
-0.5366363717601327,
-0.53748203491352,
-0.5382431083848683,
-0.5389350715538815,
-0.539232629532084,
-0.5382123078947194,
-0.5378593094760877,
-0.537441884793503,
-0.5364988309553013,
-0.5351423735517951,
-0.5340538842005729,
-0.5325345783840202,
-0.534373620198521,
-0.5356982131313495,
-0.5348160156223829,
-0.533982080834169,
-0.532897383822971,
-0.5322095873452263,
-0.5316412851596426,
-0.5310122941292951,
-0.5302893953011276,
-0.5295596314274681,
-0.5285491895516112,
-0.5279296070416966,
-0.5288414052059053,
-0.5291823776041616,
-0.5299781422136003,
-0.5305960409856026,
-0.5309024766933028,
-0.5317006116382131,
-0.5323631318654111,
-0.532476835696326,
-0.5321197755954505,
-0.5318336150629056,
-0.5318239709014514,
-0.5318359882010464,
-0.5331937539201553,
-0.5337045660896567,
-0.5347635484662702,
-0.5332830462597226,
-0.5319324412617785,
-0.5297710211356813,
-0.5278842340632214,
-0.5262411520650301,
-0.5251513028980753,
-0.5239713544962062,
-0.5225162272444037,
-0.520744024660857,
-0.5191364796478928,
-0.5176733147811675,
-0.5204380198968674,
-0.5205462350875099,
-0.520655855293851,
-0.5207589320659657,
-0.5207871563293953,
-0.5203943472328909,
-0.5201127104080728,
-0.5213558933393584,
-0.5221241702586557,
-0.5230800198515648,
-0.5232714656557036,
-0.523580384189642,
-0.5233749892066745,
-0.5234856806220685,
-0.5264851066482031,
-0.5306383456733728,
-0.5337239451723466,
-0.5347533633092625,
-0.5352753317088569,
-0.5358897203358046,
-0.5363084949435067,
-0.5367643812293178,
-0.537491531083921,
-0.5386187551969188,
-0.5400446025491882,
-0.5410724435370488,
-0.5418500537028627,
-0.5427570726651909,
-0.5435123849161533,
-0.544110760510646,
-0.5446886752978755,
-0.5452371573707575,
-0.5450890033026347,
-0.5453725324806482,
-0.5457370933297501,
-0.5456467472633928,
-0.546328930666606,
-0.5472749140535866,
-0.5481566719553569,
-0.5498696734189977,
-0.5524786365858307,
-0.5552119329142007,
-0.5561136780177152,
-0.5571701747282964,
-0.5582084037854372,
-0.5600201227371026,
-0.5626563191824762,
-0.5636968384793937,
-0.5651099234579485,
-0.5657880123465945,
-0.5671548801590642,
-0.5686282816668344,
-0.5698663582031223,
-0.5714509432192812,
-0.5733714883479266,
-0.5755007804461345,
-0.5780781505826001,
-0.579057192934679,
-0.5799206271295363,
-0.5801468718699606,
-0.5807371282089484,
-0.5805280210367033,
-0.5810079212767117,
-0.5815544549230061,
-0.5819517357632821,
-0.5817477192052085,
-0.5838269613325635,
-0.5868999684879521,
-0.5889013954405181,
-0.587496633049068,
-0.5857347062156956,
-0.584590145436101,
-0.5862222269621858,
-0.58750942534905,
-0.5883811678565326,
-0.5861873153593539,
-0.5834823102630841,
-0.5804443830932954,
-0.5779258492030054,
-0.5760585890735351,
-0.5743874821456808,
-0.57218400866544,
-0.5731669704079824,
-0.5742875612537459,
-0.5757624855018252,
-0.5774502295876256,
-0.5793430364063966,
-0.5809993623844714,
-0.5821734311934482,
-0.5814204767388493,
-0.5818840369847594,
-0.582333077762608,
-0.5822294268262523,
-0.5817965926911313,
-0.5806871527805874,
-0.5798000496132248,
-0.5784078224495608,
-0.5768766666030467,
-0.5754824461790624,
-0.57436209423755,
-0.5732551866858931,
-0.5724430195807698,
-0.5707218766220099,
-0.5685173020668475,
-0.566112187423121,
-0.5635627589828988,
-0.5647824818686826,
-0.5659213640016518,
-0.5670015664730064,
-0.5671489750916187,
-0.5677481120821388,
-0.5689651266601253,
-0.5695712269730604,
-0.570069096970588,
-0.5703942425803243,
-0.5756830654061953,
-0.5801067650426959,
-0.5850221191454914,
-0.5886810377474568,
-0.5934875846365851,
-0.5973508944369816,
-0.6016525577809588,
-0.6051557585149652,
-0.6097938680576184,
-0.6089094323026403,
-0.6081089256601261,
-0.6067360756302619,
-0.6057139804877063,
-0.604191488977535,
-0.6024913998161575,
-0.6005835708882656,
-0.5987455675524191,
-0.5970873074108469,
-0.5950290239544945,
-0.5931397039501644,
-0.5913703374827636,
-0.5946638797820518,
-0.5973922596400386,
-0.6003468800679126,
-0.6032533982644281,
-0.606318782126263,
-0.6087816939786855,
-0.6086428416873619,
-0.608229936345426,
-0.607934837617564,
-0.607914502573706,
-0.6108038177857139,
-0.6131300143416217,
-0.6149168231045617,
-0.6157088060046868,
-0.6167004175952384,
-0.6182901300620489,
-0.619122231448024,
-0.619678262494115,
-0.6202645391265525,
-0.6211900680849725,
-0.6226123499613827,
-0.6237854516608632,
-0.6245261886042953,
-0.6253700351745871,
-0.628144894197666,
-0.6319702247622687,
-0.6344129503710929,
-0.6369021741190696,
-0.6380089062055894,
-0.6401927133314751,
-0.6412302128089843,
-0.6433002857620826,
-0.6461919616375401,
-0.6492611823837424,
-0.6522342849839391,
-0.6511929140610813,
-0.6503677330009839,
-0.6495243410055576,
-0.648602421312115,
-0.6472496629282222,
-0.6492583450001244,
-0.6513759461879884,
-0.6530206469695722,
-0.6548142429849456,
-0.6567286839760984,
-0.6564863735163466,
-0.6563068646843866,
-0.6558637109957494,
-0.6554829940323577,
-0.6553010357219897,
-0.6547970531120825,
-0.6536839910294864,
-0.652966559867712,
-0.6517764768361538,
-0.6506717218113632,
-0.6499453131444184,
-0.6485987390445166,
-0.6474756402710736,
-0.6509975015049142,
-0.6549427491257923,
-0.6579188889186766,
-0.6607946618389665,
-0.6632680189283312,
-0.6653665819975995,
-0.6671212089674866,
-0.6692726062490653,
-0.6661376019214927,
-0.6629389963052782,
-0.6605744983051819,
-0.6589226476518442,
-0.6571074081368535,
-0.6555132498982303,
-0.6538340000797848,
-0.6524788805094452,
-0.652280413697745,
-0.6523546440130797,
-0.6524239043804702,
-0.6527252533148361,
-0.6527332857668479,
-0.6523073705477495,
-0.651565498459415,
-0.6505247329337756,
-0.6473424080302361,
-0.6444741808447831,
-0.6422573131778067,
-0.6411487109905416,
-0.6393633142321015,
-0.6372754234505356,
-0.6342783992442486,
-0.6302818096258472,
-0.6260911516492903,
-0.6215130990430329,
-0.621942443366467,
-0.6217636476974099,
-0.6216828318402475,
-0.6217237602179725,
-0.621852202917432,
-0.6229260879623579,
-0.6232531560737241,
-0.6230738805544334,
-0.6233328224795955,
-0.6232188806305338,
-0.6227866024815201,
-0.6223138105857315,
-0.6217611538696293,
-0.6218935393086437,
-0.6216105116483973,
-0.6210729478410899,
-0.6207599724947372,
-0.6201104624262318,
-0.6215500987246544,
-0.6229186463248269,
-0.6241605190289098,
-0.6247084398381727,
-0.6245712673680239,
-0.6249050289229723,
-0.6249145905064535,
-0.6245888862696842,
-0.6242292563834904,
-0.623565725238673,
-0.6229516660102152,
-0.6221272367192611,
-0.6210025575621464,
-0.6199101015656412,
-0.6189668732092355,
-0.618559116067444,
-0.6179411163650402,
-0.6174344668754773,
-0.6184467929322514,
-0.618938115977287,
-0.6195019662423179,
-0.6204936771733591,
-0.6211342523294006,
-0.6209644811598786,
-0.6203569796743081,
-0.6197467064784742,
-0.619209555570994,
-0.6185344459571347,
-0.6197028385547911,
-0.6183353499386086,
-0.6162311289592889,
-0.6154084409887478,
-0.613685897349001,
-0.6147747532545405,
-0.6157262171843433,
-0.616708491972197,
-0.6174935669277642,
-0.6184035227419596,
-0.6189543386591527,
-0.6197866511733917,
-0.620662375572287,
-0.6222691368674717,
-0.6211546858109438,
-0.6200030624327676,
-0.6186310370326368,
-0.6170590743385281,
-0.6166128458418164,
-0.6149476513890947,
-0.6123238118018093,
-0.6096526558789368,
-0.6068084842304182,
-0.6041767267816358,
-0.6050581866593091,
-0.605676684421348,
-0.6062914274869732,
-0.608993125361669,
-0.6108357921644605,
-0.6134205642667944,
-0.6132885586630202,
-0.6133661994888229,
-0.613291029920784,
-0.6129206528928423,
-0.6130743225528013,
-0.6132554877909665,
-0.6150401895013533,
-0.6172531901243574,
-0.6200216076921453,
-0.6215587931712742,
-0.6246439903429224,
-0.6276408674323378,
-0.630085943420112,
-0.6324387384335031,
-0.6352529790913493,
-0.6337073193570826,
-0.6326408475486387,
-0.6310313942431122,
-0.6299799632416879,
-0.6291446682443005,
-0.6278928680366906,
-0.6280052343339622,
-0.6280433007016027,
-0.6281221844349874,
-0.6282338103559215,
-0.6281528963548011,
-0.6250198611425912,
-0.622233410096518,
-0.6224214906685253,
-0.6218801154510911,
-0.6215133027978392,
-0.6207193187340014,
-0.6198674237933351,
-0.6190173621203066,
-0.6184407271195881,
-0.6179096945388303,
-0.616986143094487,
-0.616065218165195,
-0.6152823130231129,
-0.6144613394281587,
-0.6139542920684432,
-0.6131199749290085,
-0.6121878650505583,
-0.6115136646812802,
-0.6113349047370471,
-0.6116208634607374,
-0.6106190715554572,
-0.6094965462040505,
-0.6086966859331571,
-0.6082530653174409,
-0.6082657703277677,
-0.608333684392236,
-0.6082420554762333,
-0.6081192245056454,
-0.6084262797455362,
-0.6081900942200691,
-0.6080802742774188,
-0.6112802717898513,
-0.6129252124175583,
-0.6155764923794497,
-0.6177186124495577,
-0.6168784766104868,
-0.6158207206789171,
-0.6150211943307716,
-0.613810801193476,
-0.6125202188063994,
-0.611385776263822,
-0.6098546787540486,
-0.6085718833325474,
-0.6072454077604987,
-0.6061246953398546,
-0.6050360914747523,
-0.6039317817089165,
-0.6030035477125861,
-0.6018030624030031,
-0.6005264017021464,
-0.5996563894620168,
-0.5983583024397765,
-0.5971613884269196,
-0.596172894090166,
-0.5952324772124504,
-0.5944351354960392,
-0.593313973121362,
-0.5920725555396621,
-0.5904808218002977,
-0.5888201559928119,
-0.5874866910298987,
-0.5908956180197718,
-0.5893596751920192,
-0.5875069176867256,
-0.5858259941474673,
-0.590323302508334,
-0.5947907041451682,
-0.598605262496734,
-0.6025299137059559,
-0.6019964913226754,
-0.6009291547734641,
-0.5998947056639301,
-0.5986681056862639,
-0.5974674296857256,
-0.5965687862156761,
-0.5953579800291198,
-0.5944107920605461,
-0.5933550095483787,
-0.5925371671662233,
-0.5920560769062017,
-0.5910904023311208,
-0.5901419802700839,
-0.5893192803138877,
-0.5886786184904985,
-0.5880546063370529,
-0.5911334779596416,
-0.5933923175536003,
-0.5960136848041807,
-0.5997002307934213,
-0.6018445060095027,
-0.6033925202105075,
-0.6039572671731871,
-0.6042249037923573,
-0.6025055707923221,
-0.6002414173259824,
-0.5978762277854102,
-0.5952150083256913,
-0.5954463387916274,
-0.595668682641073,
-0.5954130773150449,
-0.595493555563838,
-0.5958754568255543,
-0.5940621296775158,
-0.592976869266307,
-0.5910620595420104,
-0.5894156395274082,
-0.5894927958034764,
-0.5892983258253707,
-0.5876126120571237,
-0.5859270309342465,
-0.5844760871786726,
-0.5830188905372777,
-0.5814539421696153,
-0.5795797502948039,
-0.5772854525445329,
-0.5749248363728756,
-0.5727600410744208,
-0.5723424946157967,
-0.5713876721177886,
-0.5700792789687532,
-0.5676653313640425,
-0.5650038154411963,
-0.5621840389091479,
-0.5594736909355833,
-0.5598978048174266,
-0.5601346234858672,
-0.5611405628600454,
-0.563067990381553,
-0.5639837024110943,
-0.5648205002457796,
-0.5649104664434338,
-0.563963916397174,
-0.5634955350693062,
-0.5627110159611021,
-0.5624325361285843,
-0.5616211911044585,
-0.5608624793988524,
-0.5614372207733539,
-0.5619865569911882,
-0.5625086269652121,
-0.5638353862033185,
-0.5646375991381771,
-0.5647474001437603,
-0.566155042771223,
-0.5680540096671424,
-0.571084506258516,
-0.5741717305882998,
-0.5772928428320793,
-0.5794756970316534,
-0.5805323833925339,
-0.582353480173081,
-0.5837304377311122,
-0.5849383661980314,
-0.5856777107602068,
-0.5858836548036614,
-0.5867479717357703,
-0.586778557722333,
-0.5864497446442049,
-0.5863881506827751,
-0.5858510829821967,
-0.585807437134451,
-0.5860615100070864,
-0.5865696549392745,
-0.5871117431498686,
-0.5876396845762167,
-0.591394243759842,
-0.5917087742013897,
-0.5924157538594355,
-0.5930792992699784,
-0.593815123226414,
-0.5928562974038115,
-0.5918039867407956,
-0.5915714897892121,
-0.5916154685805577,
-0.5918843986267235,
-0.5918606365189963,
-0.5915114097042564,
-0.5913760866902734,
-0.5911896825980697,
-0.5903096736615693,
-0.5895578969955511,
-0.5888122507326669,
-0.5880692572842937,
-0.587951439777379,
-0.5876766920770882,
-0.5876311076961209,
-0.5874958736912249,
-0.5870730400780598,
-0.5865869841075203,
-0.5857549409559151,
-0.5865458534149652,
-0.5864534705438599,
-0.5864965967248472,
-0.5861640048673789,
-0.5852622418391491,
-0.5849308337414112,
-0.5846762730494764,
-0.5844816313630887,
-0.5845377433016217,
-0.5849768864885712,
-0.5848310769634312,
-0.5853117710482757,
-0.5851826542716246,
-0.5850015947948413,
-0.5844878167293334,
-0.58419206761618,
-0.5837570724704171,
-0.584370285802008,
-0.5840794155798918,
-0.5841327112171604,
-0.5838993364818181,
-0.58411649966002,
-0.5845761046135594,
-0.5850514008201707,
-0.5855264660149376,
-0.5858629783439053,
-0.586496603215255,
-0.5874937513131847,
-0.5878431744342699,
-0.5886571599275694,
-0.5883078211808872,
-0.5894316562109538,
-0.590220341826765,
-0.590578072167001,
-0.5913045857668707,
-0.5912886487493104,
-0.5915416921093007,
-0.5906702792832623,
-0.5882856077187681,
-0.5857760413713512,
-0.5868993471767625,
-0.5882919357570598,
-0.5862398030083206,
-0.5848889324875893,
-0.5841288776142559,
-0.5820241637417124,
-0.5783800482304399,
-0.5755598264116791,
-0.5726643473871403,
-0.5697034312027707,
-0.56675731956207,
-0.5636568107098046,
-0.5606001128827784,
-0.5575152928779401,
-0.5542697262812782,
-0.5516854897800966,
-0.5510748821780646,
-0.5501259151890016,
-0.5490248358125652,
-0.5485579468901743,
-0.5489450325176429,
-0.5496903059340801,
...])
[219]:
t_mye1 = trainer('ActorCritic', gres1, reward_mode='Contribution', X_latent=X_pca1, num_episodes=5e3)
t_mye1.train()
Iteration1: 100%|████████████| 500/500 [00:03<00:00, 144.45it/s, E=500, R=-0.26]
Iteration2: 100%|████████████| 500/500 [00:05<00:00, 90.86it/s, E=1000, R=-0.19]
Iteration3: 100%|████████████| 500/500 [00:06<00:00, 78.22it/s, E=1500, R=-0.07]
Iteration4: 100%|█████████████| 500/500 [00:06<00:00, 79.26it/s, E=2000, R=0.03]
Iteration5: 100%|████████████| 500/500 [00:06<00:00, 72.41it/s, E=2500, R=-0.10]
Iteration6: 100%|█████████████| 500/500 [00:07<00:00, 68.54it/s, E=3000, R=3.29]
Iteration7: 100%|█████████████| 500/500 [00:07<00:00, 64.99it/s, E=3500, R=6.40]
Iteration8: 100%|█████████████| 500/500 [00:08<00:00, 59.52it/s, E=4000, R=7.54]
Iteration9: 100%|█████████████| 500/500 [00:08<00:00, 59.63it/s, E=4500, R=9.65]
Iteration10: 100%|████████████| 500/500 [00:08<00:00, 61.59it/s, E=5000, R=9.12]
[219]:
([-1.0,
-2.0,
-1.0,
-1.0,
-1.0,
0.0027173913043478104,
-0.7568792632174316,
-1.0,
-1.0,
-1.0,
-1.0,
0.021739130434782636,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
-1.0,
-1.0,
0.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.02173913043478265,
-1.0,
-0.9172722351583259,
-0.02173913043478254,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-0.016304347826087,
-1.0,
-1.0,
-1.0,
-1.0,
1.208991434268428,
-1.0,
-2.0,
-1.0,
-1.0,
-1.0,
-2.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-0.7568792632174316,
-0.0081521739130435,
-1.0,
-1.0,
-1.0,
-0.02173913043478254,
-2,
-2,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-0.027173913043478215,
-1.0,
-1.0,
-1.0,
-2.0,
-1.0,
-1.0,
-1.0,
-2.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.02717391304347827,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.021739130434782483,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-2.0,
-1.0,
0.02717391304347827,
-1.0,
-1.0,
-1.0,
-1.0,
-2.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-2.0,
0.019021739130434756,
-1.0,
-1.0,
-1.0,
0.021739130434782705,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-0.9172722351583259,
-1.0,
-1.0,
-0.7568792632174316,
-1.0,
-1.0,
-1.0,
0.02717391304347827,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.021739130434782594,
0.02717391304347827,
-1.0,
0.02717391304347827,
-1.0,
0.027173913043478243,
-1.0,
-1.0,
-1.0,
-1.0,
0.019021739130434756,
-1.0,
0.02717391304347827,
-1.0,
0.021739130434782483,
-1.0,
-1.0,
-1.0,
-1.0,
0.02717391304347827,
-1.0,
-1.0,
-1.0,
0.019021739130434756,
-1.0,
-1.0,
-1.0,
0.021739130434782705,
-1.0,
-1.0,
-1.0,
0.02717391304347816,
-0.9172722351583259,
1.2810236374709563,
-1.0,
-1.0,
-1.0,
-0.9172722351583259,
-1.0,
0.021739130434782636,
-1.0,
-1.0,
0.0054347826086956555,
-1.0,
-1.0,
-1.0,
0.010869565217391311,
-1.0,
0.02717391304347827,
-0.9172722351583259,
-1.0,
-1.0,
-1.0,
-1.0,
0.027173913043478243,
-1.0,
-1.0,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02717391304347827,
0.23579887093459662,
-1.0,
0.02717391304347827,
0.02717391304347827,
-1.0,
-2.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.02717391304347827,
-0.6332914650258737,
0.02717391304347827,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-0.9172722351583259,
0.02717391304347827,
-1.0,
-1.0,
-2,
-1.0,
-1.0,
-1.0,
0.019021739130434784,
0.02717391304347827,
-0.9172722351583259,
-1.0,
-0.9172722351583259,
-2,
-1.0,
-1.0,
0.02717391304347827,
0.021739130434782636,
0.0,
-1.0,
-1.0,
0.02717391304347827,
-1.0,
0.02717391304347827,
-1.0,
-1.0,
-1.0,
0.02717391304347816,
0.019021739130434756,
-1.0,
0.02717391304347827,
-1.0,
-1.0,
-1.0,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02717391304347827,
-0.7913750421088817,
-0.7568792632174316,
0.02717391304347827,
0.010869565217391318,
-1.0,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.027173913043478215,
-1.0,
-1.0,
0.02173913043478265,
0.02717391304347827,
0.02717391304347827,
-1.0,
-1.0,
0.02717391304347827,
-1.0,
0.005434782608695635,
0.02717391304347827,
0.02717391304347827,
0.021739130434782594,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02173913043478265,
-1.0,
-1.0,
-1.0,
-1.0,
-0.40607725637696246,
-1.0,
0.010869565217391311,
6.47891483520057,
0.02717391304347827,
0.02717391304347816,
0.02717391304347827,
0.02717391304347827,
0.027173913043478215,
-1.0,
-1.0,
0.02717391304347827,
-1.0,
0.01086956521739129,
-1.0,
-1.0,
-1.0,
0.02717391304347827,
-0.008152173913043473,
1.065008498914202,
0.02717391304347827,
-1.0,
0.02717391304347827,
-0.008152173913043473,
0.010869565217391311,
-1.0,
0.0,
-0.005434782608695621,
-1.0,
0.23579887093459662,
0.02717391304347816,
0.02717391304347827,
0.0,
0.02717391304347827,
0.23579887093459662,
0.3185266357762707,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.10990167788515237,
0.02717391304347827,
-1.0,
0.0,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347816,
-1.0,
0.23579887093459662,
0.02717391304347827,
0.10990167788515237,
-1.0,
-1.0,
0.02717391304347827,
0.02717391304347827,
-1.0,
-0.019021739130434756,
0.5983876293454207,
-1.0,
0.02717391304347816,
0.027173913043478215,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-0.6770757342838012,
-1.0,
0.10990167788515237,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-0.7913750421088817,
-2.0,
0.02717391304347827,
0.024456521739130377,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.0244565217391306,
-1.0,
0.02717391304347827,
0.02717391304347827,
-2.0,
-1.0,
-2,
0.01086956521739129,
0.02717391304347827,
0.021739130434782594,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-2.0,
-1.0,
-2.0,
-1.0,
-1.0,
0.02717391304347827,
-1.0,
0.02717391304347827,
0.02717391304347816,
0.02717391304347827,
-0.9172722351583259,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.5745877565541375,
0.02717391304347827,
-1.0,
0.02717391304347827,
-1.0,
0.0244565217391306,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.3185266357762706,
-1.0,
0.02717391304347827,
-2,
0.02717391304347827,
-1.0,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.024456521739130488,
0.02717391304347827,
0.008152173913043459,
0.23579887093459662,
0.02717391304347816,
-1.0,
-1.0,
-1.0,
1.1118886490611353,
0.21694903320942238,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.3185266357762707,
-0.15078303663398396,
-0.9172722351583259,
0.02717391304347827,
0.4337656130585752,
-1.0,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
1.5902039525979026,
0.02717391304347827,
0.23579887093459662,
0.02717391304347827,
0.021739130434782594,
0.02717391304347827,
2.186158861220792,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02717391304347827,
0.02717391304347816,
0.2357988709345965,
0.10990167788515226,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.23579887093459662,
0.10990167788515237,
-1.0,
0.02717391304347827,
0.021739130434782483,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347816,
0.02717391304347827,
0.5983876293454207,
1.1050486441843785,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.013586956521739128,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02717391304347827,
-0.9172722351583259,
0.2357988709345965,
-2,
-0.7079343612242919,
0.02717391304347827,
-1.0,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02717391304347816,
0.10990167788515237,
-1.0,
0.02717391304347827,
-1.0,
-1.0,
-2,
-0.02717391304347827,
-1.0,
-1.0,
0.02717391304347827,
-1.0,
-1.0,
0.027173913043478243,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-0.9172722351583259,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02717391304347827,
0.02717391304347816,
-1.0,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02717391304347816,
-0.7913750421088817,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.02717391304347816,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.23579887093459662,
-2,
0.0244565217391306,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-2,
0.021739130434782705,
0.02717391304347816,
0.02717391304347827,
0.02717391304347827,
0.10990167788515237,
-1.0,
0.027173913043478243,
-1.0,
0.02717391304347827,
0.021739130434782483,
0.8620188331177028,
0.008152173913043459,
0.02717391304347827,
0.02717391304347827,
0.01086956521739129,
-1.0,
-1.0,
0.02717391304347827,
0.02717391304347827,
-2,
0.10990167788515237,
0.02717391304347816,
0.02717391304347827,
0.02717391304347827,
0.02717391304347816,
0.02717391304347816,
0.02717391304347827,
-1.0,
0.02717391304347838,
-1.0,
0.0,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02717391304347838,
0.02717391304347827,
-1.0,
0.02717391304347827,
0.02717391304347838,
0.02717391304347827,
-0.7079343612242919,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.23579887093459662,
0.010869565217391318,
0.23579887093459662,
0.02717391304347827,
-1.0,
0.010869565217391311,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02717391304347827,
0.02717391304347816,
0.23579887093459662,
0.10990167788515248,
0.02717391304347827,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.0,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-1.0,
-1.0,
-1.0,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.02717391304347816,
-1.0,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-1.0,
-1.0,
0.02717391304347838,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.010869565217391318,
0.02717391304347827,
0.02717391304347827,
0.2702946498260467,
-1.0,
0.33325227522797507,
0.021739130434782483,
0.02717391304347816,
0.02717391304347816,
0.02717391304347816,
0.02717391304347827,
0.024456521739130377,
-1.0,
0.02717391304347827,
0.5411261917627854,
0.02717391304347827,
0.02717391304347816,
0.02717391304347816,
0.02717391304347827,
0.021739130434782705,
0.02717391304347827,
0.02717391304347827,
0.01086956521739129,
0.10990167788515237,
-0.5159403354682376,
-0.7913750421088817,
0.02717391304347816,
0.10990167788515237,
0.02717391304347827,
0.02717391304347827,
0.021739130434782594,
-1.0,
0.01086956521739127,
-2.0,
0.02717391304347827,
0.02717391304347816,
0.02717391304347827,
1.7892428975816284,
-1.0,
0.02717391304347816,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-2,
0.10990167788515237,
0.3185266357762707,
-0.7913750421088817,
0.02717391304347827,
0.23579887093459662,
7.057075963240165,
0.02717391304347827,
0.02717391304347816,
0.02717391304347816,
0.02717391304347827,
0.23579887093459662,
3.4576743451760925,
0.02717391304347827,
0.10990167788515237,
0.02717391304347827,
-1.0,
0.02717391304347827,
0.0244565217391306,
1.6780304085676951,
0.02717391304347827,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.10990167788515237,
-1.0,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.021739130434782705,
0.23579887093459662,
0.02717391304347827,
-1.0,
0.02717391304347827,
-2,
0.02717391304347827,
0.021739130434782594,
0.02717391304347816,
0.02717391304347827,
0.02717391304347827,
0.02717391304347816,
-1.0,
0.02717391304347827,
0.010869565217391318,
0.02717391304347827,
0.5775945566428947,
0.02717391304347827,
0.01086956521739127,
0.010869565217391311,
0.5983876293454207,
0.02717391304347816,
0.02717391304347827,
0.02717391304347827,
0.02717391304347816,
-0.7913750421088817,
0.02717391304347827,
0.23579887093459662,
0.02717391304347827,
0.02717391304347816,
0.02717391304347816,
0.02717391304347827,
0.0827277648416741,
-1.0,
0.02717391304347816,
0.02717391304347827,
0.021739130434782594,
-1.0,
-1.0,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.0244565217391306,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02717391304347816,
0.10990167788515237,
0.02717391304347827,
0.02717391304347827,
0.024456521739130377,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02717391304347827,
0.02717391304347827,
-0.008152173913043473,
0.0,
0.02717391304347827,
-1.0,
-1.0,
0.021739130434782705,
0.02717391304347827,
0.02717391304347827,
0.10990167788515226,
0.024456521739130488,
0.02717391304347827,
-1.0,
0.021739130434782594,
-1.0,
0.024456521739130377,
0.02717391304347816,
0.02717391304347827,
0.02717391304347827,
0.2357988709345965,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.0244565217391306,
0.02717391304347827,
0.02717391304347816,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-1.0,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.10990167788515237,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02717391304347827,
0.23579887093459662,
0.02717391304347827,
0.05555385179819583,
0.005434782608695704,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347838,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.021739130434782594,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.23579887093459662,
0.021739130434782594,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02717391304347816,
-0.12244185270804031,
0.02717391304347827,
0.02717391304347827,
0.0244565217391306,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02717391304347827,
-1.0,
0.10990167788515237,
0.010869565217391318,
0.02717391304347816,
0.3185266357762707,
0.10990167788515237,
0.02717391304347827,
0.10990167788515237,
0.02717391304347827,
-1.0,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.027173913043478243,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347816,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.016304347826086946,
0.02717391304347827,
-1.0,
0.0,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02717391304347827,
-1.0,
-0.01630434782608696,
-1.0,
0.02717391304347827,
-1.0,
0.02717391304347827,
-1.0,
0.024456521739130377,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.024456521739130488,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.024456521739130488,
0.02717391304347827,
0.024456521739130377,
-1.0,
0.02717391304347827,
-1.0,
2.043643285109566,
0.02717391304347827,
0.02717391304347827,
0.02717391304347816,
0.02717391304347816,
0.02717391304347827,
0.02717391304347827,
0.02717391304347816,
0.02717391304347827,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.02717391304347827,
-0.7913750421088817,
0.02717391304347827,
0.02717391304347827,
0.10990167788515237,
0.02717391304347827,
-1.0,
-1.0,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
-1.0,
0.008152173913043459,
-0.9172722351583259,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347827,
0.02717391304347816,
-2,
0.02717391304347827,
0.02717391304347827,
-1.0,
-2,
-1.0,
0.02717391304347827,
...],
[-0.00045067168772220615,
-0.0008936563830822707,
-0.0012761728219930083,
-0.0020447228969613742,
-0.0030058955498906605,
-0.003979736335240878,
-0.004839057945536834,
-0.005697101923039184,
-0.006539264216372939,
-0.007055491581437811,
-0.007532983271284337,
-0.008244134338461774,
-0.009039793277784786,
-0.009555791003683783,
-0.0100197903809584,
-0.010422640535746876,
-0.01110497956578661,
-0.011590493553670301,
-0.01224805923265526,
-0.012792597332621591,
-0.014064634460637819,
-0.01502634701166322,
-0.01604564372647406,
-0.017726670027065856,
-0.018839798935937027,
-0.01937648187661539,
-0.020205976867988196,
-0.020722386879516556,
-0.021368692124465058,
-0.021982894768869932,
-0.022726949973308323,
-0.023533937423215568,
-0.02382773003562523,
-0.024385513811074813,
-0.0250364743064039,
-0.025435698293471542,
-0.02585626324167856,
-0.026188819053274925,
-0.02697973000535371,
-0.027613377966397575,
-0.028554181671067082,
-0.029267847700759155,
-0.0302436621616534,
-0.03083457651457194,
-0.031976347488238396,
-0.03281438787327569,
-0.033830592655625234,
-0.03461836782631164,
-0.03563279392817816,
-0.03643113404598539,
-0.03730766221817604,
-0.03830159210872242,
-0.039553893866072415,
-0.04105556502503223,
-0.04211303544133163,
-0.04378228020994674,
-0.04591201667156981,
-0.047920226102534234,
-0.05042629445616005,
-0.05255949437616746,
-0.05487058520613599,
-0.05717850963768359,
-0.05894746218417595,
-0.060737336527536684,
-0.06196521607734185,
-0.06320183295268748,
-0.06432535806464791,
-0.0662268142041743,
-0.06814678186540746,
-0.06997583822402476,
-0.07172063806070042,
-0.07293106724144108,
-0.07441622998589756,
-0.07603721148116499,
-0.07804290786098833,
-0.08024502121446368,
-0.08186295754137285,
-0.08401869436890418,
-0.0859834633498051,
-0.08768525727763919,
-0.08930241324637604,
-0.09067091893994413,
-0.09203961441004657,
-0.09375611463525853,
-0.09575297481558985,
-0.09709547322500303,
-0.0984756844212712,
-0.0996110143746188,
-0.10127176592477406,
-0.10264103294392034,
-0.10579161323681183,
-0.10755803823656672,
-0.10869407596176764,
-0.11007714422817996,
-0.1113440638931055,
-0.11276815552718458,
-0.11567278442890427,
-0.11821381170968638,
-0.12034103214565242,
-0.12324105754618057,
-0.12573816378760921,
-0.1286554200435613,
-0.13148077266117036,
-0.13420755601939163,
-0.13738530757359185,
-0.14061542305270694,
-0.14419820123071733,
-0.1452861295351335,
-0.14653096679626942,
-0.14771645171801392,
-0.1487320006275509,
-0.14983777172192064,
-0.15071369486043856,
-0.1514024510543054,
-0.15427856660760472,
-0.15722607564720156,
-0.15924662219319421,
-0.16081285225847872,
-0.16265094179672016,
-0.16425888319083257,
-0.1662500798341817,
-0.1682328895865878,
-0.16976943875931755,
-0.17125665346041463,
-0.17306240959225958,
-0.17539330453120242,
-0.17811834742417293,
-0.1804584290597976,
-0.1827108185374806,
-0.18512788228985166,
-0.1877322454127919,
-0.1901015281258906,
-0.19207481845031088,
-0.19421605102510112,
-0.19649983051547806,
-0.19899923861139768,
-0.2008693363647976,
-0.20238464640075088,
-0.20478504318656177,
-0.20621969050733588,
-0.20761399743790923,
-0.2089052365863951,
-0.2105026707859247,
-0.21136406332079094,
-0.2124211439338764,
-0.21384884522390396,
-0.21504587419829638,
-0.21583670353454215,
-0.21680097078963173,
-0.21800064548060927,
-0.2187946276534061,
-0.22129660839687965,
-0.22355165238059485,
-0.22594723715486667,
-0.22789115454785058,
-0.23050411335927118,
-0.23311037762304504,
-0.23577523627503372,
-0.23785791522890865,
-0.23974901425835876,
-0.2413594435459117,
-0.24265653612730018,
-0.24428073136910325,
-0.24626205574532353,
-0.24795263071859583,
-0.24982540482982676,
-0.2516609171165144,
-0.2540092332599014,
-0.25624979427658146,
-0.2585617108816565,
-0.26062124368114153,
-0.26236928462565007,
-0.2634690154570556,
-0.2642037341727143,
-0.2649208330000101,
-0.266143700358295,
-0.26686287723247054,
-0.26785670000565576,
-0.270390519170575,
-0.27224471472230516,
-0.27445092867825754,
-0.2763387283251609,
-0.2785687551859116,
-0.2814898416830381,
-0.28429420061966915,
-0.2867321548036817,
-0.2894039722568018,
-0.29165576988704917,
-0.29458332269168575,
-0.2961693295611222,
-0.2974828338950289,
-0.29954890798010086,
-0.3018443064741817,
-0.30354490115923327,
-0.30516014549642034,
-0.3064526228432028,
-0.307593722520525,
-0.3089632097694908,
-0.3101827796592878,
-0.31094936915368776,
-0.31173145802011376,
-0.3124499224229091,
-0.3131614675214307,
-0.31383914027015014,
-0.3141018958591684,
-0.31476871139255647,
-0.3159831838470225,
-0.31755439920010337,
-0.31949667205779014,
-0.32034173637644864,
-0.32095646977291836,
-0.32161871611343823,
-0.3220683945136335,
-0.32249127962713253,
-0.3229448230349241,
-0.3232893646882775,
-0.3238164212923416,
-0.32602595175187415,
-0.32775297552800403,
-0.3294244040698205,
-0.3309925979874673,
-0.33253713543908114,
-0.3332428196094218,
-0.33423619128531956,
-0.33571861102164197,
-0.33815574580838786,
-0.34007330114382955,
-0.34202061909302833,
-0.3440768059469803,
-0.3461506753857589,
-0.34853928901227094,
-0.3513827131130737,
-0.3533614118803292,
-0.3553880840251054,
-0.35760573841737303,
-0.3596690614632622,
-0.36055625200408664,
-0.36089993950264926,
-0.3614418180719474,
-0.36201748615262724,
-0.36313004482715355,
-0.3641405109860935,
-0.36475919006039165,
-0.36559373027265685,
-0.3665359518602462,
-0.36747616928484006,
-0.36899219403324157,
-0.3704764716566537,
-0.3721034508324891,
-0.373595527953937,
-0.37596841840575057,
-0.37815402197526665,
-0.3803722282891307,
-0.3818871467850218,
-0.38343144586621736,
-0.38514819935246625,
-0.3871704566409975,
-0.38865879493863736,
-0.39013333321930765,
-0.39176637793893804,
-0.394954787403232,
-0.3974043845895297,
-0.3994197451238384,
-0.4012768874713507,
-0.4030407376188023,
-0.4048757519883408,
-0.4068475520342272,
-0.4089479913265539,
-0.4105018660030045,
-0.41304380011342673,
-0.414925515455244,
-0.41550165365460195,
-0.41637742827903296,
-0.4170495207013509,
-0.4185706163671923,
-0.4196068897149141,
-0.4208389795849392,
-0.4218758105878553,
-0.42263917961183173,
-0.4235429905282524,
-0.4243037203664513,
-0.42472404243711204,
-0.4249600413655515,
-0.4252684741218089,
-0.42590548265518774,
-0.4265858731687001,
-0.42692315623261845,
-0.42705520987384343,
-0.4268562945710963,
-0.4266887644650945,
-0.42814818283158507,
-0.42982116077280813,
-0.4303640370594173,
-0.4318229720792746,
-0.4329705497595238,
-0.4336085869538491,
-0.4339610897401339,
-0.4347278954669704,
-0.4358426281486398,
-0.4367351001432611,
-0.43741489346836193,
-0.43764340481692665,
-0.43898822092539513,
-0.442294996553747,
-0.44542847749215136,
-0.44810238126157387,
-0.4506124060354876,
-0.4522899526354905,
-0.4541619070676217,
-0.45449914495803057,
-0.45518598736180715,
-0.4557783762807606,
-0.4564530873690033,
-0.457220276323161,
-0.4582459016904885,
-0.459227905655337,
-0.4603159828528866,
-0.4638372140653311,
-0.46720170757569296,
-0.47046766601493395,
-0.4735293385672369,
-0.47582354518784675,
-0.475746991695449,
-0.4753843658160943,
-0.4753221312092562,
-0.4751553131373908,
-0.4746745401885137,
-0.4740361184770559,
-0.47367454169593465,
-0.4745774846813103,
-0.4757137468092953,
-0.4771232940534898,
-0.47847033799601074,
-0.4803460606396985,
-0.48253826445524767,
-0.4854272626385485,
-0.48896969660447714,
-0.49027692236309295,
-0.492173154483398,
-0.4933302247857147,
-0.49453704785440544,
-0.49556833431103336,
-0.49557500005119653,
-0.4957143655990744,
-0.4957783753293066,
-0.496069410537106,
-0.4959220704922578,
-0.49592205463866923,
-0.4960592599324925,
-0.49559824531818236,
-0.4959430934112974,
-0.49572734250784906,
-0.4951364902465561,
-0.4953938598702325,
-0.49564808625912904,
-0.4973089744532263,
-0.4991163431241845,
-0.50109517927384,
-0.5030934586489055,
-0.5054497153055703,
-0.5066428798774456,
-0.5084377745040135,
-0.5093812417141236,
-0.5084147559400279,
-0.5083802880110243,
-0.5078256197328954,
-0.5067573710995724,
-0.5071374693606517,
-0.5071732652682812,
-0.507845618648952,
-0.5074124710579788,
-0.508414026194411,
-0.5091508987676396,
-0.5103761012669045,
-0.5104989523727755,
-0.5104990220530694,
-0.5104691618066575,
-0.5110891993060348,
-0.510650134835498,
-0.5107521840632828,
-0.5103277002828684,
-0.5101484166465282,
-0.5107025454787084,
-0.5109254358804156,
-0.51103098903129,
-0.5117189272787108,
-0.5110417383534913,
-0.5100341101721017,
-0.5097009914551092,
-0.5092428707129502,
-0.5083117729556074,
-0.5076620984475665,
-0.506729881004378,
-0.505894773836638,
-0.5051764909600485,
-0.5054381770744316,
-0.5057407614032547,
-0.5064567449150403,
-0.5070044048473865,
-0.5072345263368291,
-0.5077631008598577,
-0.5082441812071705,
-0.5089797950870729,
-0.5092388163210453,
-0.509016293818801,
-0.5093237452133239,
-0.5086615359745047,
-0.5082827076397154,
-0.508063206151764,
-0.5080982148947937,
-0.507956960231176,
-0.5062290380030476,
-0.5080486876648123,
-0.5106221681005804,
-0.5117070595364981,
-0.5130972920200733,
-0.5142952636927167,
-0.5153195105860184,
-0.5162284573570096,
-0.5175081057997473,
-0.5186362946861652,
-0.5193937305022776,
-0.5194010982903294,
-0.5194086068612823,
-0.5192747017814494,
-0.5199071387021151,
-0.5196831930647855,
-0.5191681430166674,
-0.5190238075155599,
-0.5187246966476331,
-0.5179758616561208,
-0.5171931570304573,
-0.5163929602608557,
-0.5153851295411536,
-0.5156548260624656,
-0.5159823868454071,
-0.5147754497241646,
-0.5135380725241812,
-0.513235184319439,
-0.5130048625705484,
-0.5128217863413348,
-0.5127811455464155,
-0.5123568056143434,
-0.5120483081267799,
-0.5108607409917207,
-0.5093207196176328,
-0.50790547118598,
-0.506682328354157,
-0.5054722751289435,
-0.5047174292290488,
-0.5032768246528365,
-0.5021921400737637,
-0.501735473274123,
-0.5011935720105337,
-0.500131787738509,
-0.4993912837623561,
-0.49855809503897125,
-0.4980001960559048,
-0.4967508442989529,
-0.4964783858907802,
-0.49655030690573854,
-0.4962015721234529,
-0.4968025162982627,
-0.49671643106061675,
-0.49660951169608897,
-0.4961683353872843,
-0.4957756628678529,
-0.4952644451892234,
-0.5004921341651358,
-0.505695775031061,
-0.5109253198947667,
-0.5125888606598903,
-0.5147848477549825,
-0.5164448440903958,
-0.5177745528748,
-0.5190157911371899,
-0.5201455718364073,
-0.5234805433209065,
-0.526531509539887,
-0.5285280109658814,
-0.5313045852789186,
-0.5370882946294404,
-0.5430747436535008,
-0.5486471698896478,
-0.5541184435273516,
-0.5585641790961605,
-0.5621410693613395,
-0.5664722128170993,
-0.5663212236206705,
-0.5661739523171155,
-0.5661424152934527,
-0.5661319637417351,
-0.568206471741096,
-0.5709288820894522,
-0.5735385459408764,
-0.5760806136863308,
-0.5782421752680533,
-0.5808139547948884,
-0.5833359336573505,
-0.5856990548809399,
-0.5878949312543699,
-0.5900657293632576,
-0.5904672521201545,
-0.5922106350420451,
-0.5933176975184423,
-0.5943211848765685,
-0.5960662372463865,
-0.5978099752978636,
-0.5984934277602606,
-0.5998825669022629,
-0.6027868147227733,
-0.6054902028794985,
-0.6084331750866891,
-0.610985744952871,
-0.6131966893026382,
-0.6137086424458428,
-0.6142594243945937,
-0.6146168355875163,
-0.6147962755470757,
-0.6144174114641286,
-0.6152425124146396,
-0.6159478608099981,
-0.6165935214769563,
-0.6170754719108008,
-0.6169490944234544,
-0.6173641876611684,
-0.6176823047054218,
-0.6181437997933373,
-0.6174790819259052,
-0.6169011642508414,
-0.6164638950152043,
-0.6161177011285454,
-0.6154530343109824,
-0.6148079870354122,
-0.6139199301620256,
-0.6134426384364399,
-0.6131474176296451,
-0.6129851127915197,
-0.6125721501634865,
-0.6120550446202078,
-0.6116905423429876,
-0.6144223703310026,
-0.6163987242081073,
-0.6180417409821167,
-0.618630926999191,
-0.619779550618704,
-0.6204131159870246,
-0.6209133280436175,
-0.6216655770991621,
-0.6218572347416585,
-0.6211620047796602,
-0.6206023314330271,
-0.6221137385209029,
-0.6233312004741457,
-0.6251712899771079,
-0.6269849160373123,
-0.6281489603682967,
-0.6295086139042962,
-0.6308442949882934,
-0.6320780822270742,
-0.6330131364951991,
-0.6341084334974498,
-0.6343932062642162,
-0.6359299806460841,
-0.6375772045817553,
-0.6393414837452517,
-0.6391130840600612,
-0.6380810943784293,
-0.637698341856824,
-0.63727307647782,
-0.6367380338774705,
-0.636360360510871,
-0.6363598403941458,
-0.6351947934054148,
-0.6341872592140931,
-0.6335885855031858,
-0.6324928199559933,
-0.6317200710211132,
-0.6310955651188656,
-0.6304622089611331,
-0.6299584300088987,
-0.6290592181994781,
-0.628989516712496,
-0.6286253463448912,
-0.628697834170433,
-0.6286262479899221,
-0.6284236093799773,
-0.6282251191673975,
-0.6279413746769835,
-0.6279505585373174,
-0.6279320381350345,
-0.6274814438775869,
-0.6269756443099095,
-0.6276981104773217,
-0.6280489121889198,
-0.6278802709023206,
-0.629811418797458,
-0.6320653284412179,
-0.633147640446568,
-0.6340847450521049,
-0.6348061005111858,
-0.635818116728181,
-0.635961687961614,
-0.6363562580122539,
-0.6359686682614802,
-0.6360232453389122,
-0.6356095097202994,
-0.6350972232848647,
-0.6353466844302507,
-0.6361616394980133,
-0.6368502679817938,
-0.637709177318841,
-0.6383845862743374,
-0.6383700352621208,
-0.6383652567668328,
-0.6384101465746315,
-0.637719245615356,
-0.6377624561423452,
-0.6371035171135484,
-0.6365204554420012,
-0.636301271529316,
-0.636466436037682,
-0.6364468195905449,
-0.63760853385685,
-0.6380482217955522,
-0.6383582121910147,
-0.6383281358031019,
-0.6385436569559421,
-0.6387834956579711,
-0.6389807027858138,
-0.6400561776230963,
-0.641153505468158,
-0.6440599624004653,
-0.6461473405727006,
-0.6472390039629157,
-0.6484548175481045,
-0.6478430376973101,
-0.6466592462155935,
-0.6457264654574044,
-0.6451493314478359,
-0.6447464816287849,
-0.6440854872815922,
-0.6432276882753124,
-0.6422118810748282,
-0.6413203878298945,
-0.6407838093320598,
-0.6437660072192222,
-0.6456240069741951,
-0.6450979875142944,
-0.6450085828485582,
-0.6445082092119835,
-0.643048741967918,
-0.6415756535119655,
-0.6401353047916202,
-0.6391789194241925,
-0.6382793936048234,
-0.6374179681290898,
-0.6366784174093569,
-0.6371417337511699,
-0.6366451589649366,
-0.636388468478473,
-0.6349763783272905,
-0.6345010080828783,
-0.633512653857474,
-0.6322842067085251,
-0.6316295031184487,
-0.6306230889416893,
-0.6295972357018663,
-0.6289319096381222,
-0.6284191337111473,
-0.6278463379788861,
-0.6272949325409753,
-0.6276695472628263,
-0.6274866609689826,
-0.6274318642589101,
-0.6277685965534832,
-0.628331310491721,
-0.6287193483176384,
-0.6292715897294126,
-0.6294999731562119,
-0.6295064953880184,
-0.6297455238875835,
-0.6299690586864157,
-0.6300529620673764,
-0.6298425363221144,
-0.6302123067661904,
-0.6292859027679125,
-0.6291942765658978,
-0.6292523936921511,
-0.6287283248217586,
-0.6283825025736415,
-0.6282520125160841,
-0.6273480448326445,
-0.6266007186209134,
-0.6267006089715955,
-0.6264284820334767,
-0.6264744908731948,
-0.6267272816664142,
-0.6267446313930881,
-0.6267552666326528,
-0.6267307186124588,
-0.6264769257185733,
-0.6262927784495042,
-0.6254912079674625,
-0.6250643585121741,
-0.6248220972941448,
-0.6243233475945889,
-0.6241409732791966,
-0.6238565247380454,
-0.6239596447465917,
-0.6236034143877536,
-0.6230144659050253,
-0.6228630631736027,
-0.6223713400088997,
-0.6244849354935322,
-0.6266496597685487,
-0.626123895929583,
-0.6265983227222129,
-0.6267762013387999,
-0.6288546678395827,
-0.629715511022697,
-0.6311096913363503,
-0.6322788490764535,
-0.6339107500953153,
-0.635020782123552,
-0.635535749020868,
-0.635985889992694,
-0.63647069431024,
-0.6368652105052651,
-0.6376679106673384,
-0.6386580045322756,
-0.6388488439146359,
-0.6390009522722723,
-0.6395024231359491,
-0.6403959372072123,
-0.6412000721232651,
-0.6418703442026055,
-0.6398059230529102,
-0.6374725467438914,
-0.6350547078393937,
-0.6329876383520489,
-0.6307615964735983,
-0.6282271020218543,
-0.6258741649232097,
-0.6231386538054127,
-0.6206165021734487,
-0.6178429919974671,
-0.6149508782728694,
-0.6119224259989123,
-0.6092645108787196,
-0.6064913134587344,
-0.6039654593798989,
-0.6045619996615058,
-0.605032158639696,
-0.6053952289451494,
-0.606510550306756,
-0.6075224370498321,
-0.6076516965314912,
-0.6082284135608614,
-0.6080420997315444,
-0.6075505170862803,
-0.6071213617794439,
-0.6072511740722617,
-0.6074574078974494,
-0.6076121903884492,
-0.6082899688224932,
-0.6091695330488915,
-0.6094958038567001,
-0.6104520486972036,
-0.610568985893865,
-0.6111294859913655,
-0.6114368011649778,
-0.6127538974330672,
-0.6132491019139309,
-0.6137465906973452,
-0.6140883669725647,
-0.6143001365606221,
-0.6132962971632193,
-0.6119932623064506,
-0.6113772323130774,
-0.6112314206110647,
-0.6112436301547761,
-0.6116391140027129,
-0.6117057157769071,
-0.6105048178084885,
-0.6094637409702891,
-0.6084399396058594,
-0.607169545790284,
-0.6064878592046355,
-0.6056032282815867,
-0.6048361742688181,
-0.6038668975007532,
-0.6030299885718164,
-0.6022451460887885,
-0.60123179265134,
-0.5999225612355381,
-0.5985781749282026,
-0.5969166508011793,
-0.595163621995778,
-0.5932656735693032,
-0.5947819998325945,
-0.5961529134918978,
-0.5976295085364265,
-0.5977552682713284,
-0.5986415478391286,
-0.5994824374853395,
-0.5997826251499979,
-0.5998782930918101,
-0.600379248465779,
-0.6005695314264835,
-0.600188052535182,
-0.6003450065858416,
-0.6007362676121012,
-0.6012149933074842,
-0.6012157095153586,
-0.6007679389135101,
-0.6003588434840221,
-0.601092797498013,
-0.6012094417911817,
-0.601222233643486,
-0.6011112771302483,
-0.6008732350330225,
-0.600672235042092,
-0.6006720386947051,
-0.6007178149014543,
-0.6007217906696479,
-0.6007534695733553,
-0.600407952259344,
-0.6004035257492565,
-0.600804120031807,
-0.6009977363339803,
-0.6009457006333057,
-0.6014379784272506,
-0.6016678285779915,
-0.6011591340424071,
-0.6005039204055908,
-0.6002951962699858,
-0.6002163309291617,
-0.6003207013352153,
-0.6007439246889671,
-0.6007096339624263,
-0.6013359863076936,
-0.6020001928331216,
-0.6018820646921943,
-0.6022651218675126,
-0.6025423299457665,
-0.6022780176729069,
-0.601988832210149,
-0.6017966737889969,
-0.6014613589834179,
-0.6013672858263105,
-0.6009891253944362,
-0.6012692703927501,
-0.6007001633300701,
-0.6001690226475446,
-0.5983659997027763,
-0.5989503750770727,
-0.5987454141300512,
-0.5986415431594834,
-0.5985400982963547,
-0.5981684092408585,
-0.5981552051412599,
-0.5983726059072215,
-0.598374273806774,
-0.5985321979699667,
-0.598389637974227,
-0.597800368661471,
-0.597752584240649,
-0.5966760365224927,
-0.5964138876216376,
-0.5961139807067991,
-0.5960978692688412,
-0.5962935347148058,
-0.5966040467713611,
-0.5960067975140478,
-0.5955625221410177,
-0.5955770263127871,
-0.5953055762059615,
-0.5937346475912224,
-0.5934123121008401,
-0.5937094792419274,
-0.594100888885074,
-0.593398411507833,
-0.5929519672575105,
-0.5918211916770137,
-0.5903929076380698,
-0.589622110553407,
-0.590431429421588,
-0.591296677081094,
-0.5909923804470543,
-0.5908894429808159,
-0.5914141272261016,
-0.5915413332065445,
-0.5920599860866963,
-0.5922693735465903,
-0.5911592852547736,
-0.589972980262597,
-0.5892109574919451,
-0.5878135914142213,
-0.5865655042491957,
-0.5857272816969744,
-0.5848774138994438,
-0.5838540433633214,
-0.5832365319722838,
-0.5826263832813479,
-0.5831187654263921,
-0.5828093411806734,
-0.5830113937131658,
-0.5839484105928474,
-0.5846268176606909,
-0.5819896376752612,
-0.5809718010863303,
-0.5796457081884578,
-0.5786747579873784,
-0.5782763958847202,
-0.5773251090319255,
-0.5766344232064429,
-0.5749750734754834,
-0.5735537570597222,
-0.5724354328783436,
-0.5726491289696816,
-0.5729619639093592,
-0.5723932893663684,
-0.5726257087818869,
-0.5724899159294294,
-0.5721582819511312,
-0.5723520786804326,
-0.5723185640460408,
-0.5721675368524317,
-0.5709611499125601,
-0.5702245141263571,
-0.5701998318900454,
-0.5697693538110892,
-0.5690929066523147,
-0.5675550887512476,
-0.5653801081657086,
-0.5630620985219157,
-0.5616969934745957,
-0.5600423799242683,
-0.5582501081232903,
-0.5565067450122688,
-0.5549175153490972,
-0.5527419823547687,
-0.5512382904936655,
-0.5511136548368667,
-0.5497797267799865,
-0.5499304886141881,
-0.5498925280275015,
-0.5497157380524832,
-0.5497042284921646,
-0.5498138496064405,
-0.5502260289231284,
-0.5511114446154383,
-0.5513334788473438,
-0.5515725683176549,
-0.5515860904901237,
-0.5515634818574554,
-0.5489200712797306,
-0.5465318585310852,
-0.5464801720529897,
-0.5469729952108217,
-0.5470630753865734,
-0.5472229805277528,
-0.5478407933566279,
-0.5474606337926825,
-0.5459870957203836,
-0.5440855902983537,
-0.5424601312618476,
-0.5403135591879802,
-0.5384548904761315,
-0.5376269837472158,
-0.536353467022583,
-0.5345749678459059,
-0.5322911887005031,
-0.5297937462247296,
-0.5271570565719703,
-0.5268631044037344,
-0.5261783742598858,
-0.5261678649955696,
-0.5267545416160263,
-0.5272866958412347,
-0.5277491534414543,
-0.527979240918094,
-0.5268284336958472,
-0.5255130551708711,
-0.5243211969574996,
-0.5229155737078691,
-0.5213809767193518,
-0.5199046105675685,
-0.5177480383892977,
-0.516518630550228,
-0.5146190262348381,
-0.5121920334501439,
-0.5095274993347483,
-0.5067097142536958,
-0.5074333419624489,
-0.5073635804526412,
-0.5066094458334686,
-0.5062523889473951,
-0.5056092398754971,
...])
[174]:
gres.grids['Mye'] = t_mye.agent.critic(torch.tensor(t_mye.env.state_space.mean(axis=1),device=device)).detach().cpu().numpy().ravel()
gres = project_back(gres, 'Mye')
adata.obs['Mye'] = gres.embedding['Mye']
[220]:
gres1.grids['Mye'] = t_mye1.agent.critic(torch.tensor(t_mye1.env.state_space.mean(axis=1),device=device)).detach().cpu().numpy().ravel()
gres1 = project_back(gres1, 'Mye')
adata1.obs['Mye'] = gres1.embedding['Mye']
[175]:
sc.pl.umap(adata, color='Mye',s=50,title='',cmap='plasma',show=False)
plt.savefig('F9.png',dpi=600,bbox_inches='tight')
[221]:
sc.pl.umap(adata1, color='Mye',s=50,title='',cmap='plasma',show=False)
plt.savefig('F10.png',dpi=600,bbox_inches='tight')
[40]:
FateID = pd.read_csv('FateIDprobs.csv',header=0,index_col=0)
[44]:
adata.obs['Ery_fateid'] = FateID[['tEry_1','tEry_2','tMega']].mean(axis=1)
adata.obs['Mye_fateid'] = FateID[['tMono_1','tMono_2','tDCs']].mean(axis=1)
[193]:
FateID1 = pd.read_csv('../../../pheno_FateIDprobs.csv',header=0,index_col=0)
[207]:
adata1.obs['Ery_fateid'] = FateID1['tMEP'].values
adata1.obs['Mye_fateid'] = FateID1['tGMP'].values
[201]:
adata1.obs['lin1'] = pr_res1.branch_probs.iloc[:,0]
adata1.obs['lin2'] = pr_res1.branch_probs.iloc[:,1]
adata1.obs['lin3'] = pr_res1.branch_probs.iloc[:,2]
adata1.obs['lin4'] = pr_res1.branch_probs.iloc[:,3]
adata1.obs['lin5'] = pr_res1.branch_probs.iloc[:,4]
[209]:
adata1.obs['palantir_Ery'] = pr_res1.branch_probs.iloc[:,0]
adata1.obs['palantir_Mye'] = pr_res1.branch_probs.iloc[:,[1,3]].mean(axis=1)
[222]:
sc.pl.umap(adata1, color=['palantir_Ery','palantir_Mye','Ery_fateid','Mye_fateid'])
[ ]:
[49]:
for i in range(adata.obsm['palantir_branch_probs'].shape[1]):
adata.obs[f'palantir_lin{i}'] = adata.obsm['palantir_branch_probs'][:,i]
[50]:
sc.pl.umap(adata, color=[f'palantir_lin{i}' for i in range(6)])
[51]:
adata.obs['palantir_Ery'] = adata.obsm['palantir_branch_probs'][:,[1,3]].mean(axis=1)
adata.obs['palantir_Mye'] = adata.obsm['palantir_branch_probs'][:,[0,2,5]].mean(axis=1)
[54]:
sc.pl.umap(adata, color=['palantir_Ery','Ery_fateid','palantir_Mye','Mye_fateid'])
[59]:
adata.obs['umap_dis'] = np.linalg.norm(adata.obsm['X_umap'][adata.uns['iroot'],:]-adata.obsm['X_umap'], axis=1)
adata1.obs['umap_dis'] = np.linalg.norm(adata1.obsm['X_umap'][adata1.uns['iroot'],:]-adata1.obsm['X_umap'], axis=1)
[61]:
adata.obs[['umap_dis','Ery','palantir_Ery','Ery_fateid']].corr()
[61]:
| umap_dis | Ery | palantir_Ery | Ery_fateid | |
|---|---|---|---|---|
| umap_dis | 1.000000 | 0.098318 | -0.228703 | -0.565418 |
| Ery | 0.098318 | 1.000000 | 0.903516 | 0.683332 |
| palantir_Ery | -0.228703 | 0.903516 | 1.000000 | 0.858363 |
| Ery_fateid | -0.565418 | 0.683332 | 0.858363 | 1.000000 |
[62]:
adata.obs[['umap_dis','Ery','palantir_Ery','Ery_fateid']].corr(method='spearman')
[62]:
| umap_dis | Ery | palantir_Ery | Ery_fateid | |
|---|---|---|---|---|
| umap_dis | 1.000000 | 0.217304 | -0.598203 | -0.599813 |
| Ery | 0.217304 | 1.000000 | 0.370568 | 0.423275 |
| palantir_Ery | -0.598203 | 0.370568 | 1.000000 | 0.940198 |
| Ery_fateid | -0.599813 | 0.423275 | 0.940198 | 1.000000 |
[63]:
adata.obs[['umap_dis','Ery','palantir_Ery','Ery_fateid']].corr(method='kendall')
[63]:
| umap_dis | Ery | palantir_Ery | Ery_fateid | |
|---|---|---|---|---|
| umap_dis | 1.000000 | 0.177310 | -0.450463 | -0.465661 |
| Ery | 0.177310 | 1.000000 | 0.242150 | 0.290237 |
| palantir_Ery | -0.450463 | 0.242150 | 1.000000 | 0.796544 |
| Ery_fateid | -0.465661 | 0.290237 | 0.796544 | 1.000000 |
[176]:
adata.obs[['umap_dis','Mye','palantir_Mye','Mye_fateid']].corr()
[176]:
| umap_dis | Mye | palantir_Mye | Mye_fateid | |
|---|---|---|---|---|
| umap_dis | 1.000000 | 0.489865 | -0.241363 | 0.168013 |
| Mye | 0.489865 | 1.000000 | 0.517934 | 0.792049 |
| palantir_Mye | -0.241363 | 0.517934 | 1.000000 | 0.837977 |
| Mye_fateid | 0.168013 | 0.792049 | 0.837977 | 1.000000 |
[177]:
adata.obs[['umap_dis','Mye','palantir_Mye','Mye_fateid']].corr(method='spearman')
[177]:
| umap_dis | Mye | palantir_Mye | Mye_fateid | |
|---|---|---|---|---|
| umap_dis | 1.000000 | 0.722406 | 0.148283 | 0.172018 |
| Mye | 0.722406 | 1.000000 | 0.617483 | 0.660454 |
| palantir_Mye | 0.148283 | 0.617483 | 1.000000 | 0.955802 |
| Mye_fateid | 0.172018 | 0.660454 | 0.955802 | 1.000000 |
[178]:
adata.obs[['umap_dis','Mye','palantir_Mye','Mye_fateid']].corr(method='kendall')
[178]:
| umap_dis | Mye | palantir_Mye | Mye_fateid | |
|---|---|---|---|---|
| umap_dis | 1.000000 | 0.569801 | 0.169206 | 0.188116 |
| Mye | 0.569801 | 1.000000 | 0.403333 | 0.472620 |
| palantir_Mye | 0.169206 | 0.403333 | 1.000000 | 0.829449 |
| Mye_fateid | 0.188116 | 0.472620 | 0.829449 | 1.000000 |
[ ]:
[ ]:
[223]:
adata1.obs[['umap_dis','Ery','palantir_Ery','Ery_fateid']].corr()
[223]:
| umap_dis | Ery | palantir_Ery | Ery_fateid | |
|---|---|---|---|---|
| umap_dis | 1.000000 | 0.277291 | -0.241954 | -0.606381 |
| Ery | 0.277291 | 1.000000 | 0.368041 | 0.428587 |
| palantir_Ery | -0.241954 | 0.368041 | 1.000000 | 0.567192 |
| Ery_fateid | -0.606381 | 0.428587 | 0.567192 | 1.000000 |
[224]:
adata1.obs[['umap_dis','Ery','palantir_Ery','Ery_fateid']].corr(method='spearman')
[224]:
| umap_dis | Ery | palantir_Ery | Ery_fateid | |
|---|---|---|---|---|
| umap_dis | 1.000000 | 0.317487 | 0.062320 | -0.436132 |
| Ery | 0.317487 | 1.000000 | 0.551669 | 0.409955 |
| palantir_Ery | 0.062320 | 0.551669 | 1.000000 | 0.526824 |
| Ery_fateid | -0.436132 | 0.409955 | 0.526824 | 1.000000 |
[225]:
adata1.obs[['umap_dis','Ery','palantir_Ery','Ery_fateid']].corr(method='kendall')
[225]:
| umap_dis | Ery | palantir_Ery | Ery_fateid | |
|---|---|---|---|---|
| umap_dis | 1.000000 | 0.246639 | 0.140031 | -0.330621 |
| Ery | 0.246639 | 1.000000 | 0.395373 | 0.281934 |
| palantir_Ery | 0.140031 | 0.395373 | 1.000000 | 0.375852 |
| Ery_fateid | -0.330621 | 0.281934 | 0.375852 | 1.000000 |
[226]:
adata1.obs[['umap_dis','Mye','palantir_Mye','Mye_fateid']].corr()
[226]:
| umap_dis | Mye | palantir_Mye | Mye_fateid | |
|---|---|---|---|---|
| umap_dis | 1.000000 | 0.621515 | 0.352129 | 0.606381 |
| Mye | 0.621515 | 1.000000 | 0.419072 | 0.882633 |
| palantir_Mye | 0.352129 | 0.419072 | 1.000000 | 0.333034 |
| Mye_fateid | 0.606381 | 0.882633 | 0.333034 | 1.000000 |
[227]:
adata1.obs[['umap_dis','Mye','palantir_Mye','Mye_fateid']].corr(method='spearman')
[227]:
| umap_dis | Mye | palantir_Mye | Mye_fateid | |
|---|---|---|---|---|
| umap_dis | 1.000000 | 0.690151 | -0.153834 | 0.436132 |
| Mye | 0.690151 | 1.000000 | 0.159101 | 0.801490 |
| palantir_Mye | -0.153834 | 0.159101 | 1.000000 | 0.259570 |
| Mye_fateid | 0.436132 | 0.801490 | 0.259570 | 1.000000 |
[228]:
adata1.obs[['umap_dis','Mye','palantir_Mye','Mye_fateid']].corr(method='kendall')
[228]:
| umap_dis | Mye | palantir_Mye | Mye_fateid | |
|---|---|---|---|---|
| umap_dis | 1.000000 | 0.500853 | -0.158823 | 0.330621 |
| Mye | 0.500853 | 1.000000 | 0.083739 | 0.608485 |
| palantir_Mye | -0.158823 | 0.083739 | 1.000000 | 0.226775 |
| Mye_fateid | 0.330621 | 0.608485 | 0.226775 | 1.000000 |
[ ]:
[67]:
gres = lineage_rewards(gres, ['HSC_1','HSC_2'], ['Ery_1','Ery_2','Mega'])
gres1 = lineage_rewards(gres1, ['HSC','MPP'], ['MEP'])
[69]:
t_ery = trainer('ActorCritic', gres, X_latent=X_pca, num_episodes=5e3, gamma=.9)
t_ery.train()
t_ery1 = trainer('ActorCritic', gres1, X_latent=X_pca1, num_episodes=5e3, gamma=.9)
t_ery1.train()
Iteration1: 100%|█████████████| 500/500 [00:03<00:00, 153.48it/s, E=500, R=4.76]
Iteration2: 100%|████████████| 500/500 [00:05<00:00, 86.53it/s, E=1000, R=11.18]
Iteration3: 100%|████████████| 500/500 [00:06<00:00, 72.41it/s, E=1500, R=12.58]
Iteration4: 100%|████████████| 500/500 [00:07<00:00, 68.07it/s, E=2000, R=13.28]
Iteration5: 100%|████████████| 500/500 [00:07<00:00, 65.16it/s, E=2500, R=14.67]
Iteration6: 100%|████████████| 500/500 [00:07<00:00, 66.18it/s, E=3000, R=13.91]
Iteration7: 100%|████████████| 500/500 [00:07<00:00, 65.32it/s, E=3500, R=15.17]
Iteration8: 100%|████████████| 500/500 [00:07<00:00, 65.62it/s, E=4000, R=12.90]
Iteration9: 100%|████████████| 500/500 [00:08<00:00, 62.25it/s, E=4500, R=14.74]
Iteration10: 100%|███████████| 500/500 [00:07<00:00, 64.17it/s, E=5000, R=14.94]
Iteration1: 100%|█████████████| 500/500 [00:03<00:00, 162.78it/s, E=500, R=5.32]
Iteration2: 100%|█████████████| 500/500 [00:06<00:00, 80.72it/s, E=1000, R=8.59]
Iteration3: 100%|█████████████| 500/500 [00:06<00:00, 71.90it/s, E=1500, R=9.66]
Iteration4: 100%|█████████████| 500/500 [00:06<00:00, 73.35it/s, E=2000, R=9.99]
Iteration5: 100%|████████████| 500/500 [00:06<00:00, 75.14it/s, E=2500, R=10.14]
Iteration6: 100%|████████████| 500/500 [00:06<00:00, 76.24it/s, E=3000, R=10.35]
Iteration7: 100%|█████████████| 500/500 [00:06<00:00, 77.46it/s, E=3500, R=9.87]
Iteration8: 100%|█████████████| 500/500 [00:06<00:00, 75.94it/s, E=4000, R=9.66]
Iteration9: 100%|█████████████| 500/500 [00:06<00:00, 76.48it/s, E=4500, R=9.61]
Iteration10: 100%|███████████| 500/500 [00:06<00:00, 78.70it/s, E=5000, R=10.25]
[69]:
([-1.0,
-1.0,
-2.0,
0.0054347826086956555,
-1.0,
-0.22674225951680937,
-0.2340716616353513,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
-2,
-0.2857397851782073,
0.88742606279873,
-1.0,
-1.0,
-2,
-0.5026258396566519,
-1.0,
-1.0,
-0.23891929311308546,
-1.0,
-1.0,
-1.0,
3.22059357898765,
-0.008152173913043473,
-1.0,
-2.0,
-2.0,
-1.0,
-1.0,
-1.0,
0.008152173913043471,
0.7614003644717731,
0.8207828553709413,
-1.0,
0.8357221271754058,
1.9908581301165156,
-1.0,
-1.0,
-1.0,
-1.0,
0.008152173913043471,
0.9375149296822101,
-1.0,
-0.028167124967018897,
0.7393035890851603,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.0054347826086956555,
-2,
2.588127597041744,
-1.0,
-0.03431794535077115,
-2.0,
-1.0,
-0.08214356154310742,
-1.0,
-0.2902604043108745,
-1.0,
2.7401989410493615,
-1.0,
-2,
-1.0,
5.804219082865021,
-0.4581133394024697,
-1.0,
0.02717391304347827,
-1.0,
-1.0,
1.1636165010988653,
1.5446888669543513,
-1.0,
1.315103968829781,
-1.0,
-1.0,
-1.0,
2.3756754616312428,
0.005434782608695704,
-1.0,
0.8777292945946722,
-1.0,
-1.0,
0.3962230811838233,
-2.0,
-0.08795276005455654,
-1.0,
-1.0,
-0.07629736189195047,
-1.0,
-1.0,
-0.19416237603612851,
0.9734908235277459,
2.5926589720118205,
-0.23891929311308546,
-0.13586972995778712,
0.2707242764576805,
-1.0,
2.4720842545244466,
-0.2650380192195567,
-2,
2.806719391972073,
-1.0,
1.8689744045572496,
-1.0,
-1.0,
-1.0,
-1.0,
3.168065974752376,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-0.06449301496838222,
-1.0,
0.013586956521739128,
-1.0,
0.9796221484591169,
-2.0,
-1.0,
-0.13036573404774232,
1.808101878923209,
-0.1786659716775636,
-2.0,
-0.2340716616353513,
-0.02988424401930012,
-1.0,
-2,
-1.0,
-1.0312474167582744,
0.0,
1.9259390589433845,
-0.028167124967018897,
-1.0,
-1.0,
-1.0,
-1.0,
-0.38278612768563525,
7.460603261964678,
-1.0,
-1.0,
-0.48821019218302464,
-1.0,
-1.0,
-2,
-1.0,
0.8023122891920016,
-1.0,
-1.0,
1.5796813858086116,
2.4925706068843216,
-1.0,
-0.13036573404774232,
-1.0,
-1.0,
-1.0,
2.473745599152948,
6.5776991857094265,
-1.0,
0.005434782608695704,
-1.0,
-1.0,
-1.0,
0.9791805546771162,
-0.5823100520537943,
0.4423066557168671,
-1.0,
-0.06632942866383362,
0.016304347826086946,
-1.0,
0.9375092521684015,
-1.0,
-1.0,
-0.1521735863929098,
-1.0,
2.3306139393444525,
-1.0,
-0.09696040417773777,
-2.0,
1.8777646081024324,
-2.0,
1.78568439527495,
1.3570396224184722,
-1.0,
-1.0,
-1.0,
-1.0,
-0.17080637559567657,
-1.0,
0.583697224726941,
9.03253667128569,
-0.028167124967018897,
-2,
0.02717391304347816,
-2.0,
1.6107873752899033,
-1.0,
3.046941865798659,
-1.0,
-1.0,
-1.0,
-0.23891929311308546,
-1.0,
5.034434805378973,
-0.22674225951680937,
3.9176393390875406,
-1.0,
-2.0,
-1.0,
-1.0,
0.7874907044091501,
-1.0,
-1.0,
-0.11364250863792447,
-1.0,
4.496951892542433,
0.479405771856108,
-1.0,
0.6137940775074959,
-1.0,
-1.0,
-1.0,
6.095915153919222,
-0.03431794535077115,
-0.11364250863792447,
-1.0,
-1.0,
-1.0,
-1.0,
0.8454607884537233,
2.8074914723523143,
-1.0,
-1.0,
-2.0,
1.2796432493425458,
1.960347341714554,
-1.0,
-1.0,
2.9328471399917015,
-0.17080637559567657,
2.9151644707474427,
-0.3296799539643607,
0.449222195602236,
-2.0,
2.5597543119623802,
-1.0,
-1.0,
-0.08505277126996902,
1.5243625035056425,
0.3450112891119774,
-1.0,
-0.07922510155462525,
-1.0,
-2.0,
0.6963386308903794,
0.9042595682733434,
1.5880181202478938,
-0.08214356154310742,
0.02717391304347827,
-0.1521735863929098,
0.7874907044091501,
-0.0054347826086956486,
-1.0,
3.004386010337095,
-1.0,
0.3731524130818382,
-1.0,
-0.40017126795849167,
-1.0,
-0.03124741675827436,
-1.0,
1.8017551777028267,
-1.0,
-1.0312474167582744,
-1.0,
-2.0,
-1.0,
0.8934274124812114,
1.2814511551419452,
-1.0,
-2,
-1.0,
-1.0,
0.8864569530946036,
6.706975546761938,
-1.0,
0.5325058915335954,
-1.0,
14.667314937545497,
0.9347918608640536,
2.037607952097627,
-1.0,
5.225071522907785,
-0.17080637559567657,
0.7598736535525337,
-1.0,
-0.2340716616353513,
0.8454607884537233,
-1.0,
0.9741873658504213,
0.4938110135538003,
-2,
3.354618350346249,
7.812735305329598,
-1.0,
-1.0,
-1.0,
0.024456521739130377,
6.377656901839138,
12.850646364321404,
5.448126373921533,
-1.0,
-1.0,
9.035494312846106,
0.8864569530946036,
-1.0,
6.661051596603262,
4.856349505020725,
3.9778231323332918,
2.5406083091772667,
0.0054347826086956555,
2.5634498476875183,
2.5257541720234156,
4.350297784914152,
-0.19416237603612851,
4.9068886492547,
0.0,
-1.0,
3.6142099180830987,
1.279298144546189,
1.9813289688587838,
0.8838801149784246,
0.9375092521684015,
-0.08214356154310742,
2.7851587831563034,
-2,
0.4937131746261303,
-0.06449301496838222,
2.6461060255910045,
-1.0,
2.0510379689395393,
-0.17080637559567657,
3.9997622577142233,
-0.17080637559567657,
-1.0,
-1.0,
-1.0,
-1.0,
0.021739130434782483,
-1.0,
12.18570784907725,
2.556380927150457,
-0.07922510155462525,
0.021739130434782636,
0.590274331291238,
-1.0,
1.2519716075479566,
2.7412821078705925,
10.298982106316645,
0.5367584157856338,
-1.0,
0.0054347826086956555,
-1.0,
-1.0,
3.0353664211046754,
9.726875501199144,
0.7816815058977011,
0.8548111455060228,
4.759207004066333,
4.711652584389062,
1.405838094740138,
-2.0,
-0.08505277126996902,
5.186932331957432,
2.634512560977196,
11.177503016574546,
12.69828927496345,
-2,
-1.0,
9.590272697201659,
-0.08795276005455654,
3.5559056866810153,
6.783965272004837,
2.055677080944224,
4.309800321016347,
-0.07629736189195047,
0.7437052236172675,
11.126831427053695,
7.0687995006108455,
-1.0,
6.85760007885715,
-0.16020979526184986,
7.546582386197455,
1.279298144546189,
6.023027350536356,
2.4920736244309936,
1.5499566594560776,
3.7168157218329694,
-1.0,
6.476998971258598,
11.194200791669749,
-0.23891929311308546,
4.618134231302765,
3.3198026868144312,
7.204846331137892,
2.6594052697440533,
-1.0,
8.41777334522941,
6.036330596468796,
9.41793566495785,
8.355231464230492,
3.7414393832427626,
3.445052380471714,
9.000713467846973,
8.353494431643549,
-2.0,
0.4263773465017714,
10.56752291600799,
8.81610945188342,
10.150871908228575,
11.925470442502462,
12.911412550138042,
-1.0,
-2.0,
4.33342606738471,
8.729900098502235,
1.547474444437897,
1.529263731075237,
3.0870732252825324,
5.560554685332499,
10.929862879557119,
10.981669786087048,
15.581639330794733,
13.35354964397673,
5.311398717440307,
0.4093670109535399,
9.98402479469738,
-0.008152173913043473,
9.94431691212491,
10.600949413792724,
1.6567624475696991,
-2,
7.225562157268167,
0.4335248077819207,
2.5634498476875183,
0.7437052236172675,
8.684428722465668,
11.465569480113114,
6.538579692145161,
5.27760827745932,
10.173836494083668,
5.123444775826766,
3.7782956638277625,
0.0190217391304347,
-0.07922510155462525,
-1.0,
8.297188640988272,
6.254150553835935,
3.695563991305106,
3.1473952930123494,
12.002484633114566,
6.434328872813147,
4.859524187551438,
0.0,
-2,
11.999730362818882,
3.4311450941374035,
2.497474522801237,
9.294047176314072,
9.316405576254622,
-0.3669101078108187,
9.983759025339968,
4.236164128907875,
7.760910446558224,
10.69524170369764,
7.040576179623169,
-1.0,
14.282116754584367,
6.999974499768101,
5.767831417253216,
12.679860786187582,
-1.0,
3.0235053390882287,
10.472069117872673,
4.215554251642763,
1.0693772242984685,
-1.0,
3.803974725366708,
1.906261835410127,
10.979671309881741,
2.9687177311192907,
8.172165688257815,
11.087698416597465,
7.004940965321519,
6.730349906363277,
1.6585067176816555,
5.1827152505456375,
0.024456521739130377,
-1.0,
12.089755085515556,
8.106190009670824,
9.829611736452744,
0.8415590765649421,
9.024710560572315,
1.6477663528914863,
6.961883801049824,
14.002770949777721,
9.601048468313762,
14.700339791823097,
5.005098033106007,
10.01355842027664,
7.942601237071519,
11.022096195997262,
9.086784244873826,
0.8454607884537233,
-1.0,
13.946937925316401,
13.141918244950508,
10.874599596896118,
8.37669144304179,
14.592218379574875,
4.405075549531961,
-0.4581133394024697,
3.535021785724645,
13.852598861194169,
9.696651342589691,
10.44999266248123,
-1.0,
1.102543331005668,
12.015864285156374,
0.9796221484591169,
0.9734908235277459,
0.9734908235277459,
8.687301762030215,
2.0524045689584747,
16.164112137027494,
6.3696554458267824,
4.675902115487458,
3.699001061191401,
11.264618172184063,
8.060808952082542,
10.402146294755141,
0.9734908235277459,
13.007257892798025,
-0.07629736189195047,
10.608702839037395,
10.226954327852116,
14.415075487997123,
1.6590436518463207,
1.7007965388207085,
13.253102944137655,
14.455791946763998,
9.128020433057161,
-0.07922510155462525,
0.9345722033254408,
15.061999563472806,
15.231579060185622,
8.579599345288168,
-2,
9.981300819005535,
11.925791526022035,
5.999117293210897,
-2,
-2,
11.954346243882057,
3.700881985361553,
7.0560748939221805,
6.414149645629067,
6.0776431169553256,
10.079470885494116,
12.54762457114295,
12.136220235202142,
8.405382037575302,
14.48506281156447,
0.021739130434782483,
11.501423784808614,
15.701244955669218,
9.34301204494793,
4.310828391794024,
2.522367231568094,
11.426062931658773,
0.021739130434782594,
0.9375092521684015,
15.31218878106583,
11.36917688158343,
6.728415226364339,
9.562174624383184,
2.1588116316205297,
16.198146219267418,
11.736470173861195,
4.07843292997114,
2.4819395266103257,
5.18165032087032,
-1.0,
14.924647789755747,
10.99965558522166,
8.390496718165236,
0.021739130434782594,
11.075581926871196,
11.062506744453135,
9.416052135512126,
-0.23891929311308546,
6.690410099409743,
3.493559270815483,
7.27936913293234,
10.276144463226796,
5.57249390171213,
11.770068987872103,
14.787094071032369,
12.166915640588403,
1.9033247865671665,
11.598770156516666,
15.904912534747396,
9.79985517900961,
2.298242692883464,
6.518393248931951,
9.403451796994963,
3.924432161597193,
-0.3124379332472218,
13.75291034449703,
14.12930040025265,
9.368900399834327,
9.233855662754182,
1.8532793739020204,
4.889583020533855,
10.016463789736703,
8.208957390736405,
8.678573139913937,
10.633094880493555,
9.477208565133955,
6.33799063936378,
9.185615588691693,
14.95315545829168,
11.49754382729764,
2.0510379689395393,
16.513774914159914,
6.332291012463022,
9.189764562252329,
6.506201947637197,
10.071484376247328,
0.9375092521684015,
2.2267394505727136,
14.219347688960827,
0.29392256929741967,
15.591371307242964,
2.6046261145512237,
4.707922208114223,
9.246971545658598,
4.373550445006763,
9.066702013986138,
0.9796221484591169,
1.6956258240071298,
-1.0,
10.286794634051732,
9.506007981242195,
13.740060825723614,
7.211629503278302,
8.50058333228059,
5.149135060456819,
6.459761499527163,
11.109746409693225,
13.562246034862047,
5.364072923956469,
4.580867051726775,
7.874905273205053,
11.07827803759612,
-2.0,
3.803974725366708,
-1.0,
8.737858030050953,
1.8700791883570584,
5.286004715675294,
0.021739130434782594,
6.776715034072023,
4.309729320483804,
11.489784555679497,
5.085985638204732,
8.345340146596184,
13.23761964549336,
10.00205441624076,
7.77250089381732,
11.421952824667839,
15.801249988059391,
16.152044027184342,
-1.0,
2.540058679940496,
9.908075558346335,
15.312372734833447,
-1.0,
10.194953649096451,
9.642952420367601,
9.98885991022814,
13.276886381402393,
0.479405771856108,
4.454238438408612,
8.126370502017947,
6.406305525231818,
10.082941553231382,
10.14796672672832,
2.883731699048084,
10.868448933022941,
14.561564907878624,
0.8998524675617212,
0.024456521739130377,
3.5908860149519057,
0.9734908235277459,
2.955444164780737,
15.231774958761324,
-2,
0.9375092521684015,
6.54812188773363,
14.067211597662027,
6.0655083953794735,
11.180153299567205,
0.8996951921895512,
7.208347143648981,
12.560372792396613,
9.29526845384379,
12.313382021058604,
1.6960528453280501,
6.089509849570623,
12.662142295167467,
11.467841766434866,
18.531276443348343,
3.926580781645556,
7.879833025038655,
10.160485540975165,
12.320727633743754,
0.8048786253413382,
10.12908469442102,
7.810468276512969,
11.205578854845674,
12.13596725412888,
0.024456521739130377,
0.021739130434782594,
16.442590572776037,
0.4937131746261303,
7.082308345574947,
1.5499566594560776,
9.750801466643644,
12.863593302467605,
11.574281972578902,
10.589778834614652,
13.398970488642995,
16.385302807582892,
10.938913250343791,
10.418178169094132,
10.87163026328583,
3.0751247937813453,
7.255613386909334,
10.633309118382797,
2.572162670069923,
4.525515389747988,
5.254682508888324,
15.157010359345355,
11.275323597345647,
8.08240486618617,
15.81480950805757,
7.888506879302065,
4.78850956019012,
12.414496197794897,
1.985136500364609,
11.67922566987237,
10.826541477136551,
3.46001236055407,
17.3853424955579,
-1.0312474167582744,
12.390503451203497,
11.986586577108735,
11.48005586074127,
9.491756486976461,
12.416225547633177,
13.736368218183546,
12.614017965434284,
0.9734908235277459,
-1.0,
9.811046156191416,
4.624828265405675,
14.783075146086112,
13.84371673604658,
15.243520596214864,
2.0524045689584747,
0.9375092521684015,
10.759388694140034,
3.16130257934666,
2.482200636447991,
14.994719238500979,
15.072016374406129,
-0.18645106977881942,
6.5362669833484945,
0.9734908235277459,
-1.0,
9.809339483657862,
14.207169476052583,
5.2478814313662046,
8.507412630998688,
15.282467457508332,
10.909690140929113,
2.9286371903096886,
17.737362755419237,
4.359681921989203,
7.657212596797669,
10.764828353798134,
-0.08214356154310742,
8.9884138731795,
11.537143345438908,
10.810699205986591,
11.844333045122948,
9.940988817533764,
16.115575310215007,
9.972273538157234,
1.8532793739020204,
4.278219472666947,
13.926186846113604,
-1.0,
8.833528388146288,
9.264242719321834,
14.855361312432004,
13.63831286035996,
0.9796221484591169,
12.160451661512305,
15.338704922796857,
6.494720515403314,
14.557624383458936,
11.464257054968051,
15.945137284668851,
10.749188270829722,
14.651067166129396,
2.482200636447991,
15.627076151926083,
16.091127406360304,
15.815798695973465,
17.276855474179417,
10.449990533362012,
6.976229691754807,
10.191511893955994,
11.0325453344779,
8.345256309838625,
11.822249664492894,
-2,
6.2142896686633105,
12.29957347318373,
-2,
6.5478329226158305,
0.9347918608640536,
10.254422253836017,
8.718380507794702,
9.872809661927029,
8.23578911633734,
10.281228816868966,
13.78937277698895,
4.110088869343226,
12.108855345104208,
9.930002023920759,
15.650657820514006,
15.206243862785861,
5.193813421725389,
14.095023697008019,
12.31313709757816,
0.005434782608695704,
0.9375092521684015,
12.56202397579712,
0.024456521739130377,
12.686380954503807,
14.47821299407743,
9.45078625596129,
4.699734569472403,
11.341805597137146,
13.70033112073663,
16.651655591275507,
6.204708600944604,
14.37885793662614,
8.388744396774978,
12.083443775132622,
0.02717391304347827,
12.8346810501106,
1.566278989813111,
9.665045087205296,
2.0781001998114617,
11.69305449802516,
15.566214625399965,
11.936648997691504,
1.7284556969863503,
15.967226156659574,
7.407475399860759,
-2.0,
11.895347527176646,
7.367613050864055,
12.35079830810503,
0.021739130434782483,
12.499150060333585,
4.726214853787949,
15.730391225945887,
11.776041933432573,
7.379960646802072,
6.826225486632365,
9.894734600668734,
11.793655366508625,
2.494107346056299,
9.714968024731574,
9.79454029096376,
15.037456894768962,
-2.0,
-1.0,
11.717102429570689,
-0.07922510155462525,
11.185297653649574,
10.903926029067708,
8.631316215650761,
11.477619378575653,
5.116036452487458,
-0.008152173913043473,
3.4005141186234993,
11.99394066594969,
10.101589528611083,
12.211050867033096,
11.003851700791357,
3.980305323467503,
13.998002861226235,
6.566897967855708,
12.151196145512529,
7.233333981374699,
7.271510220888906,
12.267235654995446,
9.185684222112172,
8.500596724576654,
8.844012783308793,
11.485640016072265,
11.254119668614699,
7.854515289253056,
15.544621449641882,
5.925527840513705,
0.9718328750329812,
10.401234004008748,
12.513494496980465,
-1.0,
0.9025698588660691,
8.300794307033035,
13.541177628087599,
11.704745847116545,
16.104009717914536,
7.226846250598776,
0.0,
10.303478208113379,
-0.07629736189195047,
7.813941004702888,
10.531897741283185,
8.203769108978088,
-0.45639033080223057,
12.00923659655939,
10.162207448363583,
15.283379713814373,
-1.0,
16.026900430717678,
11.002401257780932,
14.360346772580847,
8.100153632423616,
9.916844459143622,
9.939207660496711,
2.6064505177872155,
10.473845457127014,
8.199179254617114,
8.580321558188452,
4.891283989799025,
12.07784472740776,
10.624866775855342,
5.541022078064911,
0.02717391304347827,
11.163885458865911,
13.225085139774068,
6.186113957731145,
9.729896873457468,
0.8152770376543197,
14.430979400698215,
4.411845069036025,
12.825406821885538,
-0.008152173913043473,
15.751446173774708,
11.495467672028562,
18.112916011494118,
11.278526959657935,
5.361164453210024,
7.571971129145767,
7.08019767826565,
12.566355322788345,
7.791178364634076,
8.699604402048537,
12.060771827471656,
11.41293887592547,
7.158706653304344,
...],
[-8.198991417884827e-07,
-0.0002503188682720065,
-0.0008513523908415809,
-0.0013095276855527934,
-0.0017487178113643406,
-0.0024502556539824764,
-0.003021929175870111,
-0.003561141422550289,
-0.0042347737347132024,
-0.004897845392830255,
-0.005933366509656158,
-0.006963799725888319,
-0.008045639101926044,
-0.00934957164202356,
-0.010725266726671186,
-0.011964000221986805,
-0.01283004658630961,
-0.013941810462131266,
-0.014751079855946593,
-0.015637597752307806,
-0.016418894063563623,
-0.017203121961629212,
-0.018430000874964835,
-0.019585358204345506,
-0.020320767230183976,
-0.02155433947449837,
-0.022505870166747613,
-0.0233516729372861,
-0.024204224826458235,
-0.02507103505646718,
-0.02635061738690689,
-0.027642016389091313,
-0.028702541395255826,
-0.029380174461213507,
-0.030677930437814912,
-0.03211999321348991,
-0.03296523727422643,
-0.03376428539811034,
-0.03449243445180025,
-0.03534279319929337,
-0.036259213517316376,
-0.036984368794219846,
-0.038171812305740384,
-0.03956597679639102,
-0.04112463529522538,
-0.042423955489568344,
-0.043804462283775776,
-0.04520655845828448,
-0.04668093278359827,
-0.04818343621074855,
-0.04998438983233572,
-0.0520301094842597,
-0.05375073393550326,
-0.055303057433813564,
-0.056451816161117455,
-0.0577359567141963,
-0.05889771423798311,
-0.0601756474559625,
-0.061040050380348605,
-0.06192117113367204,
-0.0628273445378046,
-0.06394480945867789,
-0.0653910458663253,
-0.06677137717368724,
-0.06869241973001469,
-0.07007419142462329,
-0.0722089964943213,
-0.07420599649380617,
-0.07633711496075807,
-0.07838005156403197,
-0.0806930744591354,
-0.08325995380911069,
-0.0861356802618173,
-0.08849243333900858,
-0.0904419283659266,
-0.09263246052345152,
-0.09509012966271353,
-0.09698721895189615,
-0.10079204761906141,
-0.10309554184778587,
-0.10517488857187365,
-0.1083962273138478,
-0.11116040913065534,
-0.11400503627420723,
-0.11599857229393178,
-0.11804719582507457,
-0.12028838521473506,
-0.12234246193967,
-0.12372616174125399,
-0.1255102627087852,
-0.12720439963004734,
-0.12945021094679274,
-0.13148017999818365,
-0.13296332732741026,
-0.13679981501921482,
-0.1400938913292124,
-0.14338730321736157,
-0.14721115761676395,
-0.14882421684275635,
-0.14960230152855827,
-0.15076624162242078,
-0.1525910685778562,
-0.15485624287220828,
-0.15697028770669824,
-0.15888627680094444,
-0.16118123968831347,
-0.16362796372363655,
-0.165173425529984,
-0.1670235369437083,
-0.16928161839286274,
-0.17114242435834395,
-0.1728960119558859,
-0.17679286923598453,
-0.18046100727675604,
-0.18425526900091227,
-0.18781959414068325,
-0.19050675513928678,
-0.19275936576895533,
-0.19557270991510903,
-0.19837109684713902,
-0.20086244203219197,
-0.20349386116148568,
-0.20582969612260787,
-0.20863502232480277,
-0.21109983387795078,
-0.2139147974837914,
-0.2170362364749262,
-0.21999719143337493,
-0.22588159549657855,
-0.22942716309311223,
-0.23180321074265064,
-0.23375102749123308,
-0.2357662740975704,
-0.2376208658528264,
-0.23936995622857174,
-0.24113499625083845,
-0.24322558657367283,
-0.24480388293622987,
-0.24701649120757244,
-0.24967748870901976,
-0.2515806441078628,
-0.2534801047193204,
-0.25823138989423305,
-0.2634273968460909,
-0.26788573119154946,
-0.2723325456166845,
-0.27712798487739354,
-0.2805087409390868,
-0.2846624927484981,
-0.28767025275828156,
-0.2907077361621728,
-0.2932819831401983,
-0.29549436474747703,
-0.2998212283987076,
-0.3043634517597735,
-0.3074814671764316,
-0.30960073386799236,
-0.3116090466935941,
-0.3135549832888157,
-0.31694832468630596,
-0.319775753413426,
-0.3231577758280567,
-0.3265391917890997,
-0.3306244725194929,
-0.33221006777249984,
-0.33373630577754376,
-0.3352019127384746,
-0.33525634462585496,
-0.33563265032247397,
-0.33529545746785716,
-0.33616648120810194,
-0.33758949362351454,
-0.3396988871445098,
-0.34188976654768877,
-0.3441964306981771,
-0.346198644633954,
-0.34741204903909156,
-0.34879620091872066,
-0.35015424083345004,
-0.35156334162473185,
-0.35311937955137,
-0.3544078215358687,
-0.3556905958728037,
-0.3569793028441729,
-0.3575669009679182,
-0.3581489358144656,
-0.358265772375332,
-0.3580232192459726,
-0.35816560658177815,
-0.35862382541099463,
-0.3592207614933379,
-0.3601985389424516,
-0.3620237617056556,
-0.363912484826563,
-0.36556720144848887,
-0.3670909405774311,
-0.3686507804216249,
-0.3683435034956731,
-0.3681648650909629,
-0.3679685674855551,
-0.3685778039530609,
-0.36917487577065977,
-0.37025384303418624,
-0.37136708414063246,
-0.37181143534111843,
-0.3721375610338472,
-0.37430340361369535,
-0.37598587403907396,
-0.37804832611047173,
-0.3796899693289909,
-0.38200571717760123,
-0.3845261396868174,
-0.38672432766294773,
-0.3886703863601547,
-0.3908584216024834,
-0.3915084769618935,
-0.39221183463344617,
-0.39285802925018065,
-0.39331148394908166,
-0.39417548971693545,
-0.39497745729818173,
-0.39555962417371626,
-0.39642896976250724,
-0.39731892300195915,
-0.3980115720707644,
-0.3981715276572184,
-0.3979314351637573,
-0.3977868378298098,
-0.39817716102162315,
-0.3988404471005749,
-0.3999534689718607,
-0.40104321302150214,
-0.40262660307555054,
-0.40355403659993716,
-0.4039465803510252,
-0.4045234391603144,
-0.40321878308213804,
-0.4017233910594013,
-0.4006003361067631,
-0.399777113598173,
-0.3988626950537932,
-0.3976364135034872,
-0.39645562000985474,
-0.3955153738536035,
-0.3942276904982534,
-0.3934006025544997,
-0.39482476587111104,
-0.3960573918982275,
-0.3970189345009235,
-0.3948578026137225,
-0.392608553909785,
-0.3904081965509144,
-0.3892355593142879,
-0.3881028826969347,
-0.3869689196355933,
-0.3847743574090556,
-0.3844931924632407,
-0.3843108402957281,
-0.384198587172569,
-0.38388454395351257,
-0.38329452639250317,
-0.3841497576594473,
-0.38499107767922885,
-0.3862570310208628,
-0.3864817327410541,
-0.3866136868417073,
-0.3862658902130236,
-0.3856205929618181,
-0.3847225488577878,
-0.38469357182063885,
-0.3848812131586754,
-0.38540945582196795,
-0.3856128700270519,
-0.38571261186955313,
-0.38597266431113236,
-0.38607957917136804,
-0.38381700339808505,
-0.3818078604567048,
-0.3796934235857782,
-0.37743772832284594,
-0.37555034268788073,
-0.37583286372171953,
-0.375535871171061,
-0.3765734877737247,
-0.3772011170108242,
-0.3790417163046725,
-0.37767739172827847,
-0.3761918125492472,
-0.3745378064602542,
-0.373091918088742,
-0.37236422950869713,
-0.37158588222237116,
-0.37172251749350455,
-0.3717870162851836,
-0.37149214731579916,
-0.3710537071723865,
-0.3704479524116348,
-0.3701956565854478,
-0.37157174201797843,
-0.37225763550133945,
-0.3726736768879273,
-0.37283916954932506,
-0.3736992817750991,
-0.37411742964618044,
-0.37418761577642434,
-0.3746207028409272,
-0.3755766765705275,
-0.37579428507381374,
-0.3780469076506915,
-0.38047732410721574,
-0.3828385259747816,
-0.38368900657793986,
-0.3836879382123113,
-0.38369396322385596,
-0.3842632631306752,
-0.38414777070737677,
-0.3845035570532532,
-0.3853026463570296,
-0.3855676838569034,
-0.3857977280386416,
-0.38599787199708696,
-0.3853870413103879,
-0.38559600189250554,
-0.3853229591503465,
-0.3826326205043445,
-0.38038063602794286,
-0.37890493794643215,
-0.3773878603775453,
-0.3760150232812917,
-0.37510001665419834,
-0.3759662089351432,
-0.3767155116513966,
-0.37746784579624937,
-0.3783569761555478,
-0.37886874425400097,
-0.37924784387398613,
-0.37940100203377614,
-0.3792412617163906,
-0.37865819162778697,
-0.3781247272940415,
-0.3780291507321277,
-0.3793445484369288,
-0.38095393898553087,
-0.38175349341684683,
-0.38307428024530243,
-0.38462662333258224,
-0.3873087608400801,
-0.38862376306115587,
-0.3903065050561299,
-0.39135763876581936,
-0.3930467415231469,
-0.39264692784707866,
-0.3924071799889635,
-0.39170111826256454,
-0.3901447201335387,
-0.38855933698178696,
-0.3870350284566538,
-0.3853858438133305,
-0.38363512402913075,
-0.3818403900194704,
-0.380099171448588,
-0.37829044750317475,
-0.37652542042389137,
-0.3769745930375293,
-0.37729650783736773,
-0.3776433804925111,
-0.37894568578395726,
-0.380569160255924,
-0.3825948190408642,
-0.38457970082353615,
-0.38596459724796917,
-0.3874024653017684,
-0.3888045862378939,
-0.39069952860344975,
-0.3921372765639939,
-0.3939709145792147,
-0.3956125721904617,
-0.39653723615856135,
-0.3987337949132811,
-0.40033399932032937,
-0.4006570186523982,
-0.40086896879244316,
-0.401813579245951,
-0.4031383958273366,
-0.404307437239008,
-0.40524538540485233,
-0.4035327506584378,
-0.40144517944850916,
-0.39986043391839066,
-0.3979716921808752,
-0.3957327311573049,
-0.39280580200860227,
-0.390165447513449,
-0.387907297907856,
-0.3864560724706391,
-0.38374215817986773,
-0.3820527306808149,
-0.3830991631800979,
-0.38412357884891574,
-0.38472919951534773,
-0.3852598147015097,
-0.38637406359495924,
-0.38384107328186723,
-0.3813395593697492,
-0.3786336696807534,
-0.37578851978785505,
-0.37941449409527256,
-0.3819042778827117,
-0.3842810534569898,
-0.386147673866909,
-0.3875418822587057,
-0.38471907196118654,
-0.38237925550426893,
-0.37960511873345,
-0.37709936310131864,
-0.37396284376813094,
-0.37095517390029586,
-0.3682659759192831,
-0.36627004563548377,
-0.3645150888923756,
-0.36873078225246386,
-0.372172778832916,
-0.3726048606217539,
-0.3726471868547532,
-0.37260320150412807,
-0.37297016960124074,
-0.37302418434452217,
-0.3731640359700923,
-0.3742527226643263,
-0.37509907829128863,
-0.37607639054086156,
-0.3769655971182209,
-0.3774949268212475,
-0.3782449139090384,
-0.3783824007776722,
-0.3786073450507728,
-0.38120226926015793,
-0.3836186377413565,
-0.3877306117580788,
-0.3918030310965205,
-0.39502548168601015,
-0.39844368830868515,
-0.40210068723431397,
-0.4049918975270471,
-0.40628639819299156,
-0.40830139202142357,
-0.409548618424468,
-0.4109591895723244,
-0.41158946276823494,
-0.4127671130648674,
-0.41408793023334584,
-0.41440106766075996,
-0.41501518676646404,
-0.41561084654945146,
-0.4161157780754856,
-0.41685701121876145,
-0.41770459936499155,
-0.41791968800432844,
-0.4179988579106164,
-0.41878638573200233,
-0.41956271934680317,
-0.4209341014139982,
-0.4221533617068893,
-0.42382712684930546,
-0.42434002712614216,
-0.42518393820991757,
-0.42634658111471224,
-0.42687337480854587,
-0.4270172658409401,
-0.42799918563480127,
-0.4290933427985348,
-0.42927950443694574,
-0.4290006135678315,
-0.42779227722705837,
-0.42886020457621743,
-0.42990997967418976,
-0.4303576804162111,
-0.43124020473919716,
-0.43201530709742103,
-0.43310737024947205,
-0.4333940890346783,
-0.4342926659365737,
-0.4349238809535247,
-0.4348279788997168,
-0.4346468451750142,
-0.4347653976198239,
-0.4360700309436144,
-0.4349413198093393,
-0.43365950643524726,
-0.43197761573600446,
-0.43058471083856265,
-0.4288530954143957,
-0.4270202979946581,
-0.42644683417448653,
-0.4262867792674443,
-0.42662170972500224,
-0.4268062039598188,
-0.4259555226328412,
-0.4241481229621795,
-0.42328881600835266,
-0.42261424732646996,
-0.42146521386583097,
-0.41995497970972506,
-0.41825905708768046,
-0.4171109722252348,
-0.41563793846117264,
-0.4145729828030474,
-0.41358368555305935,
-0.4125554024408315,
-0.41200049300331915,
-0.41078668873948204,
-0.41043036174014347,
-0.4069529159494138,
-0.40387955794332,
-0.4001178678090332,
-0.39628232772488226,
-0.3919769399271621,
-0.3878997975132547,
-0.3840927637094233,
-0.3797782489351038,
-0.3787994055994497,
-0.37863657034465725,
-0.3774617709839732,
-0.3763896627857058,
-0.3767326487218936,
-0.3764384290128968,
-0.3758168357657663,
-0.3743684812368985,
-0.3735897437594459,
-0.3728567695501263,
-0.3699403035346072,
-0.36715928674388765,
-0.3658505282138347,
-0.36404326793580116,
-0.3624492678750924,
-0.36110541405685986,
-0.3598773684501271,
-0.35866676820989674,
-0.35856792363929596,
-0.3578909518146595,
-0.35584402983784286,
-0.35358959411206453,
-0.3519011024112452,
-0.3488805146075859,
-0.3467044330316073,
-0.34461050858784714,
-0.34094531796907934,
-0.3383824260554997,
-0.3347312091156519,
-0.33103326533961824,
-0.3280647444909303,
-0.3280869658236267,
-0.32809049400362755,
-0.327679042817255,
-0.3275530035566237,
-0.3304290458355935,
-0.3261318568756798,
-0.3221169086842503,
-0.3187740122960033,
-0.3151888517844271,
-0.3119647166099204,
-0.3086541678171578,
-0.30590901364713086,
-0.3029598868079983,
-0.2999249096519811,
-0.29991839561144784,
-0.3003958099793779,
-0.3007250762028327,
-0.30170697777098576,
-0.3017139058767063,
-0.300715931154888,
-0.30095402946880767,
-0.3006128859326964,
-0.30027376312481335,
-0.3002584668494725,
-0.2995629073465841,
-0.2961458922404599,
-0.29173042080538064,
-0.2876975868466288,
-0.28351486441008017,
-0.28079652123579585,
-0.27790437873467366,
-0.27546905177417635,
-0.27453620733415407,
-0.2744490838953589,
-0.2734478414778104,
-0.27257561221426424,
-0.27235501738421286,
-0.27138556327295305,
-0.27015949676501394,
-0.27174150768038935,
-0.27281133372586686,
-0.2733705082417201,
-0.2739057610617347,
-0.27208598659290234,
-0.27116147735291807,
-0.27121591630857406,
-0.270916149347671,
-0.26666332433919104,
-0.26324334089506163,
-0.25887749485995126,
-0.2551865840292138,
-0.2507233875010889,
-0.24598983682487496,
-0.24185947615412492,
-0.23675947336668848,
-0.23174611214373017,
-0.22682091758803166,
-0.2277586756678905,
-0.22822219252981976,
-0.229955177603128,
-0.2325129661882645,
-0.23570087195983555,
-0.23970115650041174,
-0.240696170787032,
-0.24140925746730515,
-0.24367072884106328,
-0.24527885338012748,
-0.24769845228634926,
-0.24907389281328957,
-0.25152497751658914,
-0.2536531563284996,
-0.25699381076341743,
-0.2599970853609904,
-0.26101380283650255,
-0.26093882631799986,
-0.2605271059521407,
-0.259636047796123,
-0.2619796195617658,
-0.2635456589854146,
-0.2656421085850798,
-0.26742497320504194,
-0.26994515577309874,
-0.27181224439299884,
-0.2737242816059589,
-0.27586713969488497,
-0.2777269322880174,
-0.2790250231834278,
-0.2800270851216679,
-0.2816553836150125,
-0.2826105634826163,
-0.2827715447600137,
-0.28313507727783654,
-0.2837744994117988,
-0.2843324379065038,
-0.28503426867313275,
-0.28548368352452075,
-0.28712069725106315,
-0.2882831803603431,
-0.289945794948463,
-0.2908867000932313,
-0.2928044732806924,
-0.29413396653690477,
-0.2962227865504498,
-0.2994336775367497,
-0.3008663188385877,
-0.302161387335566,
-0.3034365324901052,
-0.30512933353412897,
-0.3063758604499659,
-0.3070913797924018,
-0.30804219758287577,
-0.3090981098134977,
-0.31095458714754026,
-0.3119544192189742,
-0.31136620238568335,
-0.30945935818473713,
-0.3085661630636018,
-0.30712183041389124,
-0.3046259394725189,
-0.2993988591316169,
-0.2958818401787094,
-0.2908884319925253,
-0.28630813927428167,
-0.2818557380251225,
-0.27857811449160924,
-0.2748507066786269,
-0.2701441344816366,
-0.26537527667610694,
-0.2604604769447764,
-0.2549047567105118,
-0.25527388107454224,
-0.25474545057035547,
-0.2547208276087043,
-0.2501506875614849,
-0.24632841182820248,
-0.24649833856927242,
-0.2465428641717866,
-0.24691819912441856,
-0.24744615606881226,
-0.2484822415228184,
-0.24972375449547354,
-0.25246763483607904,
-0.25597653284315774,
-0.2587037607746451,
-0.258480518991107,
-0.2590642232544049,
-0.25958279217805375,
-0.26019846775430716,
-0.26095886450416633,
-0.26094720904330165,
-0.2605679956682349,
-0.2602959083487377,
-0.2599973180825449,
-0.26047299528521917,
-0.2647493687597971,
-0.2649036897014996,
-0.26538230876400704,
-0.2653257408814953,
-0.26686283223648266,
-0.26745443176682093,
-0.2681463362604183,
-0.2690406896492494,
-0.2687112588715106,
-0.2681628137863072,
-0.2660789963042945,
-0.2642308697903185,
-0.266264874604842,
-0.26765813218868123,
-0.2671735935745613,
-0.26797690173698324,
-0.2687620616933633,
-0.2664217322812502,
-0.2660100623118176,
-0.2641928613758641,
-0.2626237835708931,
-0.2640586828582045,
-0.2649514169211779,
-0.26583032729844414,
-0.26586551197376906,
-0.26592265044020635,
-0.2658728377222537,
-0.2649926274263383,
-0.2675420147773925,
-0.26964153797272017,
-0.27100156805007614,
-0.2725196149526389,
-0.2739844028398851,
-0.27502338376881996,
-0.2750713933090975,
-0.27487906329708367,
-0.27616593818180446,
-0.27642271719784656,
-0.27611914146342936,
-0.275947346429597,
-0.2762183145879386,
-0.276447975508142,
-0.27647865032395685,
-0.276858357232459,
-0.27702297588531116,
-0.2771097620948376,
-0.27670814485560863,
-0.27622637397800837,
-0.27611387452007513,
-0.275581489822453,
-0.2742907109157044,
-0.2724458866227984,
-0.27102258764900494,
-0.2702233420772527,
-0.2690861940461753,
-0.26638828942954207,
-0.264136255518901,
-0.2610778911239168,
-0.25754795559342997,
-0.25394005524770236,
-0.24972306234555974,
-0.24568018545908676,
-0.24108504150362742,
-0.2365197251198855,
-0.23258655989253282,
-0.22847198422216713,
-0.2284665980993313,
-0.22944928617907656,
-0.2331838929114235,
-0.236804146254083,
-0.23905680625697015,
-0.24022022688204783,
-0.24167986516948206,
-0.2430917557653952,
-0.24535737096213128,
-0.24605008880941184,
-0.2467118924463279,
-0.2468940131839578,
-0.2463872005702637,
-0.24930808139947797,
-0.2526721802069963,
-0.2561906901479413,
-0.2592542697830247,
-0.2623102947268914,
-0.2650768763594886,
-0.2684235707659716,
-0.2704127532303829,
-0.27236334259810013,
-0.2726351898076579,
-0.2764553839719924,
-0.28126622931985545,
-0.28451185622159986,
-0.2867711753880245,
-0.28346304698577385,
-0.2863381569660893,
-0.2886568103980824,
-0.2917739695090101,
-0.29494908541929277,
-0.29912558808961603,
-0.3028080451186885,
-0.30590474662759976,
-0.3035935871033984,
-0.3002474161155991,
-0.29834280478776815,
-0.2959858906018954,
-0.2933385569442789,
-0.291139361073229,
-0.2892970131467829,
-0.28621253239094163,
-0.2835967679584429,
-0.28033777515745,
-0.27754094345820507,
-0.27468987914656895,
-0.27728970666400216,
-0.2797064251757985,
-0.28200005061646694,
-0.28463711365445743,
-0.2839398630386826,
-0.2827940376785006,
-0.2827877012119365,
-0.283881498494699,
-0.28352029726242983,
-0.28397360391725385,
-0.28431408532036084,
-0.28432764483426887,
-0.28555252495974504,
-0.28569978795302264,
-0.2855708440169006,
-0.2866848274890768,
-0.2908002375563052,
-0.29395523168693644,
-0.2956823330676596,
-0.29745840116821337,
-0.3001504217491567,
-0.30216624771868084,
-0.3031644927773706,
-0.30194388818887496,
-0.29857046680834776,
-0.2951893344104385,
-0.2909258149968778,
-0.2863155458562234,
-0.281751561057736,
-0.27781298900913065,
-0.2740451451594086,
-0.2701483450007617,
-0.26679925250647646,
-0.2647471965551375,
-0.2618642568582295,
-0.25940577277481836,
-0.2562165192116854,
-0.25170096851317186,
-0.2479784030362314,
-0.24422912388554457,
-0.23974453425967385,
-0.2409862109669136,
-0.2436454627419359,
-0.2462028338350179,
-0.2524776251582439,
-0.25752261961607087,
-0.2610052902170262,
-0.26519695642341173,
-0.26981374605631087,
-0.2727495741766152,
-0.2751249067348093,
-0.2797028289636017,
-0.283607045617505,
-0.28804081977185614,
-0.29362887590401493,
-0.2958207297029769,
-0.298616069144424,
-0.30125652084597365,
-0.30374710309703323,
-0.3060305419113058,
-0.30587737808953613,
-0.3052718156584028,
-0.30486039692539807,
-0.3049347423266067,
-0.30491027520467245,
-0.30445093423066094,
-0.30438347694663076,
-0.3033624944309486,
-0.30151844154387636,
-0.29905028561688435,
-0.29840842488246444,
-0.2980140787345478,
-0.2973491896462836,
-0.2969274870580471,
-0.2939052539334601,
-0.29112100327805446,
-0.29032299857508925,
-0.29009014106259673,
-0.2897856529830257,
-0.2889387384103704,
-0.28838828351812895,
-0.2820844913620129,
-0.27517877457269857,
-0.2696122310115912,
-0.2643205620493738,
-0.2667857388812321,
-0.2701581625399219,
-0.27336952286123645,
-0.27548375071260944,
-0.27587557215956593,
-0.27685854243805413,
-0.27943663299612753,
-0.2806605742179343,
-0.2803546778682841,
-0.279979375140106,
-0.2789074794953606,
-0.2829066719038301,
-0.2862743932402033,
-0.2885638298992235,
-0.2914279887370168,
-0.2934481077736059,
-0.29552787914660694,
-0.2990593956203579,
-0.3014684815267585,
-0.30393747047231223,
-0.3061462718036512,
-0.3080324687955584,
-0.3094594587490774,
-0.3095486764170515,
-0.3093687010842064,
-0.3087216544372152,
-0.3089781559091011,
-0.30803724190079107,
-0.30600746295283754,
-0.30607510295831525,
-0.3053858706492856,
-0.3075576973947864,
-0.31000525278131325,
-0.3119498224026835,
-0.31472232573350684,
-0.3158376655971489,
-0.3158734154984856,
-0.31707046585520865,
-0.31796529036218485,
-0.3161494914889066,
-0.31347165758696494,
-0.31080362212172014,
-0.31469757642798923,
-0.3183096604548001,
-0.32143810026020736,
-0.3245768518150854,
-0.31827733020449706,
-0.31239274288180174,
-0.3059644136750488,
-0.30024212397676403,
-0.3012125686660805,
-0.3017316490288696,
-0.30221165386107973,
-0.3024767043335346,
-0.3029889813693754,
-0.3038052584602664,
-0.30506463354278196,
-0.30553556499800427,
-0.30555047370822963,
-0.30547578303955575,
-0.30561491557059556,
-0.30601105997520067,
-0.3069123842319806,
-0.3089450932454024,
-0.31105076782170926,
-0.31230662489635425,
-0.31425139102915095,
-0.3149596176009503,
-0.31495901930866854,
-0.3142794168352636,
-0.31353618397094357,
-0.3154213932683931,
-0.31717565605970344,
-0.3176506047962354,
-0.3187254712075646,
-0.3185230553016267,
-0.31915345902898673,
-0.31943504790544974,
-0.319938833874266,
-0.32036827642221416,
-0.32118402416812053,
-0.3227484730167204,
-0.3240644717958171,
-0.3251713170431918,
-0.3266704503251862,
-0.3281822724576774,
-0.32905273127742635,
-0.33098267163581735,
-0.3334441456448868,
-0.3352248327817098,
-0.3361716968418308,
-0.3374968624202551,
-0.3384854353276592,
-0.33980395227905735,
-0.34104254713739396,
-0.34171758628616744,
-0.341386788030926,
...])
[70]:
gres.grids['Ery'] = t_ery.agent.critic(torch.tensor(t_ery.env.state_space.mean(axis=1),device=device)).detach().cpu().numpy().ravel()
gres = project_back(gres, 'Ery')
adata.obs['Ery_decision'] = gres.embedding['Ery']
gres1.grids['Ery'] = t_ery1.agent.critic(torch.tensor(t_ery1.env.state_space.mean(axis=1),device=device)).detach().cpu().numpy().ravel()
gres1 = project_back(gres1, 'Ery')
adata1.obs['Ery_decision'] = gres1.embedding['Ery']
[71]:
sc.pl.umap(adata, color='Ery_decision',s=50,title='',cmap='plasma',show=False)
plt.savefig('F11.png',dpi=600,bbox_inches='tight')
[72]:
sc.pl.umap(adata1, color='Ery_decision',s=50,title='',cmap='plasma',show=False)
plt.savefig('F12.png',dpi=600,bbox_inches='tight')
[73]:
gres = lineage_rewards(gres, ['HSC_1','HSC_2'], ['Mono_1','Mono_2','DCs'])
gres1 = lineage_rewards(gres1, ['HSC','MPP'], ['GMP'])
t_mye = trainer('ActorCritic', gres, X_latent=X_pca, num_episodes=5e3, gamma=.9)
t_mye.train()
t_mye1 = trainer('ActorCritic', gres1, X_latent=X_pca1, num_episodes=5e3, gamma=.9)
t_mye1.train()
Reward generating: 100%|██████████████████| 1163/1163 [00:00<00:00, 2470.96it/s]
Time used for generating rewards : 0.49 seconds
Reward generating: 100%|██████████████████| 1699/1699 [00:00<00:00, 2625.32it/s]
Time used for generating rewards : 0.67 seconds
Iteration1: 100%|█████████████| 500/500 [00:03<00:00, 159.38it/s, E=500, R=3.23]
Iteration2: 100%|█████████████| 500/500 [00:06<00:00, 76.31it/s, E=1000, R=8.64]
Iteration3: 100%|████████████| 500/500 [00:07<00:00, 68.28it/s, E=1500, R=10.28]
Iteration4: 100%|████████████| 500/500 [00:06<00:00, 71.86it/s, E=2000, R=11.08]
Iteration5: 100%|████████████| 500/500 [00:07<00:00, 70.56it/s, E=2500, R=11.60]
Iteration6: 100%|████████████| 500/500 [00:07<00:00, 69.27it/s, E=3000, R=12.57]
Iteration7: 100%|████████████| 500/500 [00:07<00:00, 66.82it/s, E=3500, R=11.58]
Iteration8: 100%|████████████| 500/500 [00:07<00:00, 68.53it/s, E=4000, R=11.39]
Iteration9: 100%|████████████| 500/500 [00:07<00:00, 66.04it/s, E=4500, R=13.36]
Iteration10: 100%|███████████| 500/500 [00:07<00:00, 67.98it/s, E=5000, R=11.50]
Iteration1: 100%|████████████| 500/500 [00:02<00:00, 178.17it/s, E=500, R=-0.10]
Iteration2: 100%|█████████████| 500/500 [00:06<00:00, 72.42it/s, E=1000, R=6.24]
Iteration3: 100%|█████████████| 500/500 [00:09<00:00, 52.67it/s, E=1500, R=9.14]
Iteration4: 100%|█████████████| 500/500 [00:09<00:00, 51.60it/s, E=2000, R=9.37]
Iteration5: 100%|████████████| 500/500 [00:09<00:00, 55.07it/s, E=2500, R=10.00]
Iteration6: 100%|█████████████| 500/500 [00:09<00:00, 55.47it/s, E=3000, R=9.67]
Iteration7: 100%|████████████| 500/500 [00:09<00:00, 54.89it/s, E=3500, R=10.26]
Iteration8: 100%|████████████| 500/500 [00:09<00:00, 51.99it/s, E=4000, R=10.16]
Iteration9: 100%|████████████| 500/500 [00:09<00:00, 50.83it/s, E=4500, R=10.89]
Iteration10: 100%|███████████| 500/500 [00:09<00:00, 52.04it/s, E=5000, R=10.25]
[73]:
([-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.002717391304347816,
-0.019021739130434756,
-1.0,
-1.0,
-0.5441152854195056,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.5222388781344023,
-0.2431207367825684,
-1.0,
0.021739130434782566,
-2,
-1.0,
-1.0,
-2.0,
-1.0,
-1.0,
-0.008152173913043473,
-1.0,
-1.0,
-1.0,
-0.0827277648416741,
-1.0,
-1.0,
-1.0,
-1.0,
0.0,
-1.0,
-1.0,
-1.0,
2.374552820553837,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
-1.0,
-2.0,
-1.0,
0.02717391304347827,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
1.1884767677396577,
-1.0,
-1.0,
0.02717391304347827,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.02173913043478265,
-1.0,
-1.0,
-0.0827277648416741,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
5.9986591329942165,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.021739130434782636,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
-0.0827277648416741,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-0.4093090913194446,
-2,
-0.20862495789111835,
-1.0,
-1.0,
-1.0,
-2,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.4772990535014854,
0.36787944117144233,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
2.1098840026444794,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
2.4211281949899814,
-1.0,
-0.3719786137124802,
-0.0827277648416741,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
-1.0,
0.0,
-1.0,
0.02173913043478265,
-2,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
-2.0,
-1.0,
1.1348125032032392,
-1.0,
-1.0,
-1.0,
-1.0,
0.0,
-1.0,
-1.0,
-1.0,
-1.0,
-0.0827277648416741,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.021739130434782566,
-1.0,
5.302523974427773,
-1.0,
-1.0,
-1.0,
-2,
-1.0,
-1.0,
-0.20862495789111835,
-1.0,
-1.0,
-1.0,
3.200705558591273,
-1.0,
-1.0,
0.013586956521739135,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.021739130434782636,
-1.0,
0.021739130434782594,
-1.0,
-1.0,
-2.0,
0.0,
-1.0,
-1.0,
-1.0,
-0.0827277648416741,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
4.079413096113062,
0.7639211914114685,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.010869565217391318,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-0.0827277648416741,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-2,
0.0,
-1.0,
-1.0,
-1.0,
-1.0,
-0.23464038508302942,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.02717391304347827,
-1.0,
-1.0,
-1.0,
-0.0827277648416741,
-1.0,
-1.0,
0.02173913043478265,
-1.0,
-1.0,
-0.5479090335972947,
-1.0,
0.02717391304347827,
-1.0,
-2,
-1.0,
-1.0,
0.021739130434782594,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-0.20862495789111835,
-2,
-0.20862495789111835,
-1.0,
-1.0,
-0.20862495789111835,
-1.0,
-2,
0.36787944117144233,
-1.0,
-1.0,
-1.0,
0.02717391304347827,
-1.0,
0.016304347826086973,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
3.0470609628836662,
-1.0,
-1.0,
-1.0,
-0.4093090913194446,
-1.0,
-0.20862495789111835,
-1.0,
-2.0,
-1.0,
0.010869565217391318,
-1.0,
-0.0827277648416741,
-1.0,
-1.0,
-1.0,
0.4278402259658006,
-1.0,
0.021739130434782594,
-1.0,
3.657093144634077,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
1.8829708552270739,
0.02717391304347827,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.02717391304347827,
-1.0,
-0.20862495789111835,
-1.0,
6.3798891556353405,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
-1.0,
0.005434782608695704,
-1.0,
-1.0,
-1.0,
1.2459020214323364,
0.02717391304347827,
-1.0,
-1.0,
4.918726897853385,
-1.0,
-0.20862495789111835,
-1.0,
4.523188429936699,
-1.0,
-1.0,
0.4648136244417236,
0.0,
0.010869565217391311,
-1.0,
-1.0,
-1.0,
0.02717391304347827,
-0.20862495789111835,
0.02717391304347827,
-1.0,
-1.0,
7.796641848554033,
-1.0,
-1.0,
-1.0,
-1.0,
6.524998603019685,
-1.0,
-1.0,
2.498699386196149,
0.010869565217391318,
-0.20862495789111835,
-1.0,
-2,
0.021739130434782636,
0.02717391304347827,
-0.0827277648416741,
-1.0,
-1.0,
-1.0,
1.6089260237315077,
4.633887898785341,
-1.0,
-1.0,
-1.0,
-0.3115131447931925,
-1.0,
-0.2431207367825684,
-1.0,
2.575430444345286,
-1.0,
1.7069935411817547,
-2.0,
-1.0,
-0.005434782608695704,
-1.0,
0.02717391304347827,
-0.027889472236656387,
-1.0,
4.840115306596961,
-2,
-0.0827277648416741,
9.264223021929904,
-1.0,
0.02717391304347827,
-1.0,
9.81619289370776,
0.45596019674153593,
4.490812511151969,
0.0,
-0.0054347826086956486,
-1.0,
0.45596019674153593,
-1.0,
-1.0,
0.40607725637696257,
-1.0,
-1.0,
-0.0827277648416741,
0.019021739130434756,
-1.0,
4.536498195289204,
-1.0,
0.0,
-1.0,
-0.20862495789111835,
-1.0,
5.577427811769821,
-1.0,
-1.0,
-1.0,
0.44536611842423923,
3.454819198751799,
9.185656489185588,
-1.0,
-1.0,
-2,
-1.0,
-1.0,
11.302861452397057,
0.02717391304347827,
-1.0,
-0.0827277648416741,
4.537031779659201,
14.013112581526874,
-1.0,
-1.0,
-1.0,
0.02717391304347827,
0.02717391304347827,
-1.0,
-0.3115131447931925,
0.02717391304347827,
0.02717391304347827,
0.9600835994204067,
-1.0,
0.1651550799257755,
-1.0,
11.365472842326108,
-1.0,
10.701878030319136,
-1.0,
-1.0,
9.445195335097493,
0.02717391304347827,
-0.251507124333038,
-1.0,
0.02717391304347827,
-1.0,
5.547056354461526,
-1.0,
4.036513805633747,
-1.0,
-1.0,
0.02173913043478265,
1.8873829075457573,
-1.0,
0.02717391304347827,
6.430508712350954,
-0.2431207367825684,
3.4390657220646457,
0.02717391304347827,
9.794247661415644,
5.992769212056751,
-1.0,
-1.0,
0.4767532694440616,
-1.0,
-1.0,
0.02717391304347827,
1.4200136322968349,
-1.0,
5.813889450401361,
-1.0,
0.02717391304347827,
3.788603355576026,
0.02717391304347827,
-1.0,
-1.0,
0.02717391304347827,
5.088358773304924,
0.02717391304347827,
-1.0,
0.7447920386384967,
-1.0,
-2,
-2,
1.0090616016112905,
2.369283779709585,
-2,
9.731517276091095,
12.653892616745111,
-1.0,
-1.0,
-1.0,
4.794789375283625,
-1.0,
0.02717391304347827,
-1.0,
-1.0,
13.646690785674387,
0.02717391304347827,
-1.0,
8.252072544486992,
0.024456521739130377,
8.80935278629918,
0.024456521739130377,
0.024456521739130377,
1.8513265967071004,
-1.0,
1.4200136322968349,
-1.0,
6.482922211105303,
-1.0,
0.02717391304347827,
9.534668893345518,
0.02717391304347827,
5.1689256594243105,
0.45596019674153593,
-1.0,
12.530848026505558,
0.016304347826086946,
11.787775184558047,
9.43581233308891,
-0.251507124333038,
0.47550270180536625,
0.02717391304347827,
9.873200515298306,
-1.0,
5.865908932140777,
0.02717391304347827,
10.956241107665917,
-1.0,
0.4622597333107743,
-1.0,
-1.0,
0.02717391304347827,
-1.0,
3.6145534987910795,
-1.0,
-1.0,
3.813980464053778,
9.026740169525219,
0.02717391304347827,
4.538540179360776,
8.160542521421533,
0.021739130434782636,
-1.0,
-1.0,
0.02717391304347827,
11.250964195892918,
-1.0,
0.02717391304347827,
0.0,
8.359432299225178,
7.537677102342157,
0.45324280543718803,
0.021739130434782705,
0.47550270180536625,
12.272756911428804,
9.235799064492772,
6.050538368480918,
3.920293626567517,
9.43739494758367,
12.485625371913038,
0.16675748940773905,
0.4369797308737695,
0.0,
0.02717391304347827,
3.202477476474696,
-1.0,
-1.0,
8.931113672917107,
11.735934482706048,
10.023650524092012,
3.287923125526498,
-1.0,
-1.0,
3.4756567207637445,
0.32813196058818317,
5.379831268270833,
10.867637178678956,
0.02717391304347827,
9.119738067346493,
0.02717391304347827,
0.02717391304347827,
7.726386955367826,
-1.0,
11.095727998724616,
5.075613594992388,
8.78538787562082,
5.829917322142336,
-1.0,
6.038111730202204,
0.02717391304347827,
5.850271599015225,
7.9179798017245995,
0.024456521739130488,
0.02717391304347827,
-1.0,
10.786325620234617,
9.940726181687511,
0.021739130434782705,
7.2753490238577925,
7.083763548905639,
8.950504935153486,
9.341181876527758,
-0.005434782608695621,
3.8048300930113617,
9.93712225424417,
-1.0,
12.287256980699489,
-1.0,
12.340681866429016,
0.9296279156938901,
-1.0,
0.02717391304347827,
8.350958613756594,
3.040580260939426,
1.301370677220751,
11.339028337707132,
-1.0,
-1.0,
0.02717391304347827,
0.02717391304347827,
9.298473589380555,
2.8780652744326964,
0.02717391304347827,
7.412139765019343,
10.273470347355568,
9.19304720268791,
-0.20862495789111835,
-1.0,
0.0,
0.02717391304347827,
-1.0,
5.910145335315971,
0.02717391304347827,
0.02717391304347827,
7.917408150355242,
-1.0,
0.02717391304347827,
-1.0,
9.210869387724971,
9.56038821713359,
9.592725338165272,
6.8816279234532125,
-1.0,
-0.3719786137124802,
4.598385298752158,
6.3677978656793695,
-1.0,
7.5231089480415845,
5.714627536035611,
7.913459242594228,
-1.0,
10.06710385218591,
10.347669116532268,
-1.0,
6.935866202834099,
0.02717391304347827,
4.890425035541629,
0.02717391304347827,
0.0,
-1.0,
12.400994972807087,
-1.0,
0.02717391304347827,
0.005434782608695704,
-1.0,
8.708438095933696,
0.45596019674153593,
-1.0,
9.479401228973778,
11.96683812652616,
10.779430952983244,
0.005434782608695704,
7.6000122235341365,
1.3996523562160186,
8.977147867030476,
7.333338714807248,
12.470439260823273,
5.894927372416913,
8.41579657011078,
4.607576740579447,
9.459435615223557,
0.02717391304347827,
1.2396558935192843,
8.851946931284003,
9.180646382183879,
0.013586956521739135,
6.200447711907182,
11.920670615683683,
8.578439284184599,
6.70603475653762,
0.4767532694440616,
10.581607457116952,
8.064977653349292,
1.096617803711259,
-1.0,
-1.0,
-1.0,
0.02717391304347827,
0.02717391304347827,
8.316589546968299,
5.162872684369407,
-1.0,
7.666633514106076,
9.292538639512417,
6.4990573593018865,
8.80491103839216,
-1.0,
-1.0,
-1.0,
0.02717391304347827,
5.6393573453869665,
7.866187971593794,
6.76882870307261,
0.024456521739130377,
-2.0,
0.4767532694440616,
2.6060700063573137,
0.021739130434782636,
-2,
7.643369895169171,
8.241278290649623,
9.60702971489828,
-1.0,
9.175963266816087,
8.461223380112067,
8.02544515058638,
-1.0,
8.816386108261348,
10.057069050640242,
10.145269961785836,
4.974429789816515,
6.614781938287354,
10.79191861360272,
11.164031330451623,
10.071191940094886,
9.040334510067,
8.339937829612193,
8.536453532425902,
8.601106094524829,
-1.0,
-1.0,
7.049060863959137,
8.700457745180794,
-1.0,
8.336687598962069,
0.021739130434782594,
8.599456818666804,
4.513133545813805,
10.730736365958368,
-0.0827277648416741,
9.074335409942458,
6.250430566564693,
9.9574783556874,
5.935810213154374,
2.1089516526299565,
8.158242988948755,
10.395449008096183,
4.514122946596042,
10.355253810514911,
1.3709903511240196,
0.9615504230860592,
5.970010053357162,
9.355067644910475,
6.220071182334698,
10.818267567924734,
9.673272949949089,
0.7840531762609099,
4.224763312364655,
0.45324280543718803,
9.283417295994937,
8.382187729431022,
-1.0,
9.42312452278474,
2.7961625030209776,
9.390684409981263,
0.02717391304347827,
11.088895447081516,
0.005434782608695704,
9.816161200498758,
0.02717391304347827,
9.597180302405066,
8.331465667992054,
6.053400439434716,
11.231044871895392,
11.255410621171745,
11.163433315123132,
12.125581785262689,
5.465413988445917,
5.1320503137349185,
11.41856275669141,
-2.0,
7.477886577342769,
0.9324956087223083,
12.937075830340127,
8.484282386180809,
10.877210481963534,
6.9417446438224335,
-1.0,
6.523681034177712,
-1.0,
10.458480896867604,
9.507926117468216,
10.043689888000712,
11.293669606899453,
8.75139695758058,
0.02717391304347827,
6.933612784090718,
5.05013683980782,
7.40621819417127,
3.2949763518416857,
1.694403217002722,
11.759119370270191,
6.899757312514837,
5.898546554012599,
6.066045444351977,
9.304302985113408,
9.160474351069327,
0.02717391304347827,
12.16577973345167,
9.661739762104986,
8.802374192842727,
5.85767828256834,
5.8097661372390395,
15.03012945390969,
-1.0,
0.4767532694440616,
10.749920834427497,
2.4038851593390715,
0.9296279156938901,
10.9990933380719,
8.836313777870933,
10.755097187388827,
9.860547049607202,
6.192672782915379,
13.022581615344679,
5.96214417934692,
11.301204987824379,
0.024456521739130377,
7.792337264413992,
-1.0,
12.760812695423088,
10.183086429163128,
2.7670729323532384,
9.317869978496404,
11.177707524924854,
-1.0,
0.02717391304347827,
4.03714491678347,
8.534779185290462,
0.02717391304347827,
-1.0,
9.771219108942704,
-2,
9.110742238495504,
7.808538004028126,
6.346600273549423,
-2,
7.10549319243363,
-1.0,
-1.0,
7.629413381263512,
6.630264231115032,
14.590939989194103,
3.5256649074279487,
8.241178190163707,
-1.0,
-1.0,
4.2970129433157815,
6.362657764604361,
-1.0,
12.284251456503032,
14.330460982460135,
-1.0,
6.429289375864433,
11.695746506159498,
...],
[0.00013740132562816145,
0.00022011324041523042,
0.00037587159153888933,
0.00045871353992010117,
0.00020405120540603036,
-2.6202460830417138e-05,
-5.2267226572068364e-05,
-0.0002724814039272623,
-0.0003466109989775761,
-0.0007459817758103287,
-0.0009894953048473175,
-0.0013571665631596592,
-0.0021456034001837198,
-0.0029632123074973,
-0.0038955624057088445,
-0.004852495399859347,
-0.005655004107662106,
-0.006926101253518982,
-0.008293937193412659,
-0.009651285553300163,
-0.011056935274205766,
-0.012883551623606831,
-0.013998278545988826,
-0.015026201506271921,
-0.016738008659398444,
-0.018223229542681883,
-0.01993964779161688,
-0.02157111594522357,
-0.02313609616256891,
-0.024693232405341197,
-0.026188182850694405,
-0.027863929053063858,
-0.02929933625759293,
-0.030862619375289488,
-0.032267523403590424,
-0.03334330336019136,
-0.034527966744561135,
-0.03578654872380181,
-0.03671074320641629,
-0.037560363811439616,
-0.038970346600984945,
-0.040515808934390087,
-0.04235002520784482,
-0.04407135578482569,
-0.04595736322628234,
-0.04784453446207086,
-0.04955140716696731,
-0.051432820131685604,
-0.05352761984910045,
-0.05579845565398779,
-0.05794016669741318,
-0.06030359377263277,
-0.06304996348668435,
-0.06561574708981367,
-0.06846530551418897,
-0.07146085816752623,
-0.07380349527340185,
-0.07627585028696404,
-0.07867664061598882,
-0.0808197139978393,
-0.082589851308225,
-0.08452851226520201,
-0.08670858787833355,
-0.08893835898341744,
-0.09113463753781217,
-0.09306854316939801,
-0.09587479122284195,
-0.09870638822877532,
-0.10143733196941322,
-0.10418655596792567,
-0.10697888118035366,
-0.10940605300761001,
-0.11210333723432077,
-0.1148246114603005,
-0.11768901092068011,
-0.12043354345902181,
-0.12324338223910981,
-0.1261029821738081,
-0.12887538166780815,
-0.13158965228477962,
-0.13473528919505523,
-0.13795855965612341,
-0.14051409582064567,
-0.14365315198567694,
-0.14651099921135952,
-0.14918600241804625,
-0.15212543802323125,
-0.15448835320152712,
-0.1566005315655816,
-0.15838169300983118,
-0.1606592184127134,
-0.16303785131292128,
-0.16516940423336626,
-0.16749790981754228,
-0.16993383613196852,
-0.1721031505538325,
-0.17440943106809595,
-0.1768031519042983,
-0.17956926379408406,
-0.18185150200165248,
-0.18412230815655742,
-0.18653648648794413,
-0.18929470873241863,
-0.19230659872177655,
-0.1949177344593803,
-0.19735548130210567,
-0.19948641961195712,
-0.20168497217547648,
-0.20426674547381693,
-0.20639073931450203,
-0.20872200064716914,
-0.21080475916657732,
-0.21304601272784587,
-0.21575987449922862,
-0.21822583130082002,
-0.22068759256427592,
-0.2236240885809658,
-0.22616213552602332,
-0.22865139923975825,
-0.2314540108548952,
-0.2338472443525807,
-0.23664838199976004,
-0.2391726884696593,
-0.2414559159563424,
-0.2441775707122693,
-0.24662151199364907,
-0.24867480189080363,
-0.2512060875149861,
-0.2532202849864993,
-0.25506911335683197,
-0.25751810739442554,
-0.2608633400266848,
-0.2634131287991161,
-0.266599490601009,
-0.2697042616073241,
-0.2718582126403481,
-0.2741114798228052,
-0.27611617967733804,
-0.2779279854061486,
-0.27979892041598464,
-0.2818843918898019,
-0.28377042490929577,
-0.2854104974597371,
-0.28767661462585414,
-0.2896456270347882,
-0.2919165672050113,
-0.2938135600368444,
-0.29519774989275754,
-0.29645654979952846,
-0.297728519603517,
-0.29877165939418654,
-0.29978190934735677,
-0.30118077109950536,
-0.30239700421834254,
-0.30406950463273663,
-0.30562739398749117,
-0.30723983707565156,
-0.30936316936438674,
-0.3121272290525761,
-0.31472518155515566,
-0.31760731398058606,
-0.3203506146241994,
-0.3229533451793514,
-0.32542884468117683,
-0.32810203669949306,
-0.3307362342505804,
-0.3330328458454217,
-0.3352306330140904,
-0.33778035945860474,
-0.3402776375972439,
-0.34224246852451495,
-0.3446642446348038,
-0.3476545034239512,
-0.35082911454616705,
-0.35396754024390203,
-0.3566856673516234,
-0.35973333763098847,
-0.36239071955065977,
-0.36434603073628885,
-0.36656681127091234,
-0.36905254919932573,
-0.3713172141672001,
-0.3734787989299517,
-0.3756245180167572,
-0.3771542260226436,
-0.37919728044976225,
-0.3806663761922507,
-0.3821874667542025,
-0.3837574567685684,
-0.3855478748737483,
-0.3874219906462645,
-0.3886122258377818,
-0.3903570083889747,
-0.39173918739684593,
-0.39277919517804716,
-0.39383220766897287,
-0.39518216912389503,
-0.3967985914758692,
-0.3982539799391022,
-0.4000863038943109,
-0.40202954634315446,
-0.4041067519601707,
-0.4057360862714491,
-0.4079926603185464,
-0.4098947491428845,
-0.4120649254273062,
-0.4141327213417423,
-0.4158353759661394,
-0.41706718733370324,
-0.4182915304284068,
-0.41955744088787517,
-0.42105685509039154,
-0.4223255659402333,
-0.4236639315421003,
-0.42478751149395555,
-0.42579298974659396,
-0.42675913157839,
-0.42792829005782335,
-0.42886032837848076,
-0.43021876312622537,
-0.43144080732109613,
-0.4326471595503217,
-0.4335319917395352,
-0.4344015138735042,
-0.4356612318061508,
-0.43639238124452073,
-0.4378216233664277,
-0.43989285379444115,
-0.44133116113191423,
-0.4423083243818119,
-0.4434814950983504,
-0.4444112384969965,
-0.44550005462087194,
-0.4462024605968139,
-0.4463330938433656,
-0.4463381413961424,
-0.446424415272797,
-0.4473108734781675,
-0.4480068741902368,
-0.44915864183220605,
-0.45163813707376294,
-0.4539161024467056,
-0.45603912557026005,
-0.45804503855542295,
-0.4602402115955827,
-0.46242630360219905,
-0.46370725749239877,
-0.4651637274395826,
-0.46575541788136415,
-0.4665383915734934,
-0.4675988752175852,
-0.4696268587844408,
-0.4720191850055409,
-0.4744962232629663,
-0.4767530295683548,
-0.47918410735988987,
-0.481692078207692,
-0.4836596123201516,
-0.4854083986544363,
-0.48704453704818423,
-0.4894778312849404,
-0.49220084346327825,
-0.4946939922472703,
-0.4973836095348361,
-0.500098705337374,
-0.5026102924800903,
-0.5048778372143413,
-0.5087769809910687,
-0.5126044922700809,
-0.5148207225166886,
-0.5169571769609366,
-0.519793418021246,
-0.5226482657952984,
-0.5255241705797177,
-0.5282346594584932,
-0.531101381511657,
-0.5340693600500749,
-0.5371047370123367,
-0.5403097049320801,
-0.5430077948218026,
-0.5463803653771889,
-0.5489011073739266,
-0.5515155559090555,
-0.5549089098454755,
-0.5583400701044832,
-0.5609948282128612,
-0.564542716787518,
-0.5679914996187186,
-0.5711095550591244,
-0.574522138420723,
-0.578226981937947,
-0.5815171157202739,
-0.5845768729952187,
-0.58635678854651,
-0.5882198245548349,
-0.5889956254827008,
-0.5890836878192117,
-0.5894345168028109,
-0.5901193562284176,
-0.5915948319851746,
-0.5922771048125917,
-0.5930887582718737,
-0.5941374640867423,
-0.5950230595965469,
-0.5957523461492645,
-0.5965399548342059,
-0.5970840267246543,
-0.5977232165978403,
-0.5985968691415411,
-0.5994423160349615,
-0.6007629331696341,
-0.6021132872764834,
-0.6037069811655328,
-0.6057641787292638,
-0.6083582376984028,
-0.6110167879729997,
-0.613763052719353,
-0.6162102116197653,
-0.6183206541920757,
-0.6208601681458087,
-0.6237575525668061,
-0.6264220967942141,
-0.629361279068231,
-0.6311843067621691,
-0.6337345745031462,
-0.6356549122269057,
-0.6378084650678861,
-0.639830823132218,
-0.6410868476945926,
-0.6434881684743539,
-0.644903113601144,
-0.6472138960229836,
-0.6494223740768577,
-0.6513294969734336,
-0.6535545700553159,
-0.6557174681816781,
-0.6588634699978743,
-0.6603323004788479,
-0.6614914386705151,
-0.6620572969306918,
-0.6629376434449816,
-0.6640993784913065,
-0.6648351865900953,
-0.6654052586658729,
-0.6650214563853952,
-0.6650051805567916,
-0.6647736917462165,
-0.6640147017512305,
-0.6639260547199065,
-0.6663854809953793,
-0.6688836948963258,
-0.6710597096093289,
-0.6733783536272003,
-0.6746635149768164,
-0.6759171819981847,
-0.6779451505954495,
-0.6797965131136132,
-0.6808898268265219,
-0.6823482733003375,
-0.6843019906607188,
-0.6859933635599695,
-0.6879092205069707,
-0.68973569470244,
-0.6915783279698031,
-0.6933503457499676,
-0.6950575191825794,
-0.6962097803408818,
-0.6981215945935887,
-0.6998219700352707,
-0.701329104367681,
-0.7024844766681082,
-0.7039117299139066,
-0.7053579957491622,
-0.7062648528665736,
-0.707046563315509,
-0.7074272182719684,
-0.7079625322819841,
-0.708468620621074,
-0.7095504615899862,
-0.7098199263340192,
-0.7099435114314485,
-0.7098509589367188,
-0.7094797245597255,
-0.7098002081290617,
-0.7095149866690096,
-0.7117490259200442,
-0.7132502978993612,
-0.7147906993849468,
-0.7156409370053087,
-0.7161455998234484,
-0.7161319445734691,
-0.7163804833302541,
-0.7168133644152279,
-0.7173523320703856,
-0.7169983275611606,
-0.7172444807926823,
-0.7175954271061032,
-0.7178859313586647,
-0.7183846433220306,
-0.7191981402299512,
-0.7194471903269887,
-0.7200257249561223,
-0.7203315921175316,
-0.7209236862669484,
-0.7214447192547764,
-0.7228182216025447,
-0.7241520923613877,
-0.7257039374141071,
-0.7274805177150202,
-0.7278804026597283,
-0.7282346814215953,
-0.7287362677548399,
-0.7288100682080387,
-0.7290471340784128,
-0.7290533430219542,
-0.7292094075289018,
-0.729807663598519,
-0.7299519241806538,
-0.7303802866391229,
-0.730676949437323,
-0.731288426631474,
-0.7317618383429592,
-0.7322350520089104,
-0.7325968862875164,
-0.7327655494905851,
-0.7327843315396563,
-0.7332326261161651,
-0.7328951556006165,
-0.7335206371075407,
-0.733876975975321,
-0.7337087935595481,
-0.7332658583578293,
-0.7325229425811312,
-0.7312659144089245,
-0.729810854254881,
-0.727807510004864,
-0.7257645358303126,
-0.7238673785836143,
-0.7223431760979782,
-0.7200126654842023,
-0.7182297412458888,
-0.7163405295594844,
-0.7146973031761636,
-0.7130713237735011,
-0.7111270430232403,
-0.7094151584339727,
-0.7076282972089873,
-0.7066921374820138,
-0.7056206450079234,
-0.7045399537968914,
-0.7043071788879075,
-0.7043423621177852,
-0.7037808714785754,
-0.7030077820406543,
-0.7025589008290822,
-0.7016446623070497,
-0.701573174267922,
-0.701355261270766,
-0.7012941329193529,
-0.7012685288061554,
-0.7009944199844703,
-0.7006820267367246,
-0.7003233186203484,
-0.700577828788683,
-0.7005034995440698,
-0.7004734547736482,
-0.6999344259940808,
-0.6997870293548712,
-0.6997586566065306,
-0.6999120148485185,
-0.6997668116592323,
-0.6999042176660338,
-0.699508077078974,
-0.7002549369564118,
-0.7002539697719922,
-0.7000654453154547,
-0.6998663132931354,
-0.6997000976023907,
-0.6996347668369358,
-0.6994807402081039,
-0.6990419625627808,
-0.6994129922380917,
-0.6994510128953971,
-0.6984812010014677,
-0.6981196514508328,
-0.6976949507179354,
-0.6970246303589723,
-0.6967646826474889,
-0.6956872705542225,
-0.6947867675725184,
-0.6937335243903642,
-0.6929168599374721,
-0.6915265752414854,
-0.6924699797602784,
-0.6922500924369126,
-0.692028999340527,
-0.6920985251783657,
-0.6924644543497493,
-0.6925916954477517,
-0.692714400110333,
-0.6925111744628354,
-0.6930569182988876,
-0.6928823846877704,
-0.6925803982227628,
-0.6923769860659577,
-0.6938132239827081,
-0.695175752091539,
-0.6978185344963187,
-0.6983504528187483,
-0.6990630536487555,
-0.6988053103948436,
-0.6991733673971373,
-0.6993405546687713,
-0.6992352620078084,
-0.6987834280964128,
-0.6991626711393605,
-0.6989580405996922,
-0.6987778661827694,
-0.6990189859856712,
-0.6997578089477221,
-0.7000760545647533,
-0.7009049310053199,
-0.7015975881115581,
-0.7024727621330327,
-0.7035349278509853,
-0.7037446049368319,
-0.7043368652242777,
-0.7047710142140056,
-0.704984193940604,
-0.7048865424296716,
-0.7055735632149331,
-0.7057461681113754,
-0.7070138301884515,
-0.7082478887044595,
-0.7091638840011946,
-0.709698228715691,
-0.7101300812119632,
-0.7113892323844251,
-0.712567806406543,
-0.7133373366424509,
-0.7140484380618655,
-0.7149798009054307,
-0.7157904981166285,
-0.7166735192335855,
-0.7177503843005721,
-0.7188723030886792,
-0.7194363043194746,
-0.7199340331214971,
-0.7211032748540257,
-0.721865466745537,
-0.7223428686999105,
-0.7231425116996077,
-0.7234316293584712,
-0.7237205319669316,
-0.7230518141390023,
-0.7222766976163916,
-0.7214300281905235,
-0.720653622137267,
-0.7198252235281715,
-0.7193418902810521,
-0.7187751319848326,
-0.7179729698010894,
-0.7169116290528644,
-0.7155638836183621,
-0.7139980240510585,
-0.712260161948944,
-0.7107497598103495,
-0.7096017945453477,
-0.7103263070088354,
-0.7109344583006916,
-0.7112000533288674,
-0.7119366407001243,
-0.7131675750222012,
-0.7140730561668847,
-0.7149191086635885,
-0.7152118701954849,
-0.7159577478094963,
-0.7164548050143765,
-0.7170353095456515,
-0.7177636812052063,
-0.7184740048618443,
-0.7189431936801941,
-0.7191984040046894,
-0.7192574403278665,
-0.7193294771795148,
-0.7191986914717406,
-0.7193401563030515,
-0.7191921129149916,
-0.7201686496586709,
-0.7210402415271454,
-0.7218286855464651,
-0.7226759802429126,
-0.7221535219820941,
-0.7216389677129429,
-0.7213618431186906,
-0.7209720089363804,
-0.7207001217162721,
-0.7204325449582271,
-0.7204655920322487,
-0.7203209938885242,
-0.7202070304324292,
-0.7210369586772931,
-0.7219149986334717,
-0.722709381960922,
-0.7229910659404378,
-0.7225716872785213,
-0.7225124673003807,
-0.7223535387491266,
-0.7229360304009124,
-0.7232859701834666,
-0.7244266385900909,
-0.7255419090879555,
-0.7266043468828134,
-0.7268977098954277,
-0.7258960905299677,
-0.7248324979457222,
-0.7242738354173698,
-0.7232877494124135,
-0.7237664743087115,
-0.7233320916098669,
-0.7229597110728724,
-0.7225187245492539,
-0.7219484327601373,
-0.7218328442151491,
-0.7205792379722267,
-0.719446722595249,
-0.7182712355342632,
-0.7190081186186958,
-0.7195135068452587,
-0.7195232195653964,
-0.7190351920906164,
-0.7189661804234525,
-0.7183322779018245,
-0.7184015680670905,
-0.7187034944170284,
-0.7178475136733253,
-0.7175110699534732,
-0.71682630818996,
-0.714518820968306,
-0.7120643718524781,
-0.7095464514113056,
-0.7087409270986422,
-0.7082632788338842,
-0.7075042038437713,
-0.7059436674148444,
-0.7045013451630324,
-0.7033187606269299,
-0.7019038641495018,
-0.7005282183808382,
-0.7001292626679623,
-0.699362683198609,
-0.698793588541199,
-0.6982970291077475,
-0.698255538883893,
-0.6968705444965491,
-0.695627849448379,
-0.6943095816601443,
-0.6935691215556843,
-0.6928507666858209,
-0.6921109174854371,
-0.691502858806747,
-0.6904364469757203,
-0.6897717725132873,
-0.6892392956058676,
-0.6888869002686234,
-0.6882763587683599,
-0.6869861062202762,
-0.6828041026944659,
-0.6784170791958738,
-0.6743392594980889,
-0.6703853721877987,
-0.666393012268717,
-0.6623098739346446,
-0.6585223110312003,
-0.6548937768250513,
-0.6513114414197464,
-0.6480075688861283,
-0.6445215579463999,
-0.640743191866675,
-0.6371259295314115,
-0.6336842276382162,
-0.630233036961563,
-0.6290243180085971,
-0.6274924992454356,
-0.6259634944635277,
-0.6249839260253764,
-0.6237212156855156,
-0.622404822054016,
-0.6208603866902936,
-0.6194453610050588,
-0.618039616863188,
-0.616348968918776,
-0.6148632795520397,
-0.6133015758547418,
-0.6122393644570774,
-0.6111203994389245,
-0.6091853512779563,
-0.6081005889960538,
-0.606845708439198,
-0.6051010518677032,
-0.6031869149963023,
-0.6009263015067738,
-0.5993285860811454,
-0.5980539436900425,
-0.5968158381864418,
-0.5957335159675841,
-0.5945991797118466,
-0.593347949808313,
-0.5919820772710901,
-0.5906747840412402,
-0.5895001352086766,
-0.5884069761588004,
-0.5890413338094014,
-0.5896856151102298,
-0.5892811773486853,
-0.5886616461949131,
-0.5878305443335771,
-0.5873274091549866,
-0.5877352685977828,
-0.5881626650287273,
-0.5884220522016878,
-0.5889475360278031,
-0.5887419426133158,
-0.5890612754694097,
-0.5888283902112758,
-0.5891441639697149,
-0.5888451295846121,
-0.5884330475295235,
-0.5892993028903829,
-0.5901164454087717,
-0.590955038930553,
-0.5920096694084503,
-0.5927983940997954,
-0.5940456628056804,
-0.594382484362143,
-0.5955055308417376,
-0.5967690155223526,
-0.5975917322724005,
-0.598284123795479,
-0.5988076173911127,
-0.5997805723976477,
-0.6008859261656033,
-0.603288108692597,
-0.606061737252375,
-0.6056617872024924,
-0.6061092092816853,
-0.6072591559940278,
-0.6075127108662756,
-0.6086228229453746,
-0.6093218374412587,
-0.6111236780802929,
-0.6095309692691685,
-0.6081718439738518,
-0.6091891982859535,
-0.6099014610462021,
-0.6106878941019941,
-0.6117844253417617,
-0.6125371007411263,
-0.6139322460241258,
-0.6145383305196368,
-0.6159473109156074,
-0.6170434519321353,
-0.6181248902129409,
-0.6192215844445469,
-0.6196389077733733,
-0.6204660003620013,
-0.6220287524572448,
-0.6230024388131379,
-0.6245376534505083,
-0.6261941627569175,
-0.62714932458874,
-0.6278090133944156,
-0.6293773262108969,
-0.630249844229577,
-0.6310724912138543,
-0.6319390350144608,
-0.6321940565599695,
-0.6330864545475668,
-0.63396927974496,
-0.6341012690024013,
-0.635135722526774,
-0.6359273397992261,
-0.6368325095424907,
-0.6374602344974485,
-0.6384200397340342,
-0.6379309669625605,
-0.637152923356929,
-0.6370467125826889,
-0.6370505161639595,
-0.6359212799090903,
-0.634866442601151,
-0.633182308314905,
-0.6321219107334535,
-0.6338254896124796,
-0.6358078569058571,
-0.6378877646361364,
-0.6400585101248225,
-0.6413693668018176,
-0.6429402897122047,
-0.6440622442976365,
-0.6456929128215364,
-0.6488963699779335,
-0.6519358383376614,
-0.6537555334593276,
-0.6562052903808447,
-0.6580623339162376,
-0.6610100393288708,
-0.6634512667029508,
-0.6655552280494135,
-0.6629588749593316,
-0.6604636212788909,
-0.663387475619701,
-0.665545352418162,
-0.6665779718541532,
-0.6690771836975726,
-0.6721500569229141,
-0.6748445854163757,
-0.677758824770521,
-0.6809173129848107,
-0.6811651285824386,
-0.680966728414647,
-0.680376386461779,
-0.679942524968618,
-0.6794332048856603,
-0.6784507116829922,
-0.6806760397304885,
-0.6824484848892731,
-0.6842370540893538,
-0.685530350649504,
-0.6862975685933503,
-0.6878903458012716,
-0.6897239822890469,
-0.6908465629868088,
-0.691350145640186,
-0.6917698044426247,
-0.6922732260378965,
-0.6924591432233657,
-0.6928522437183962,
-0.6925151354195734,
-0.6917788380475293,
-0.6912453797579797,
-0.6911287301764277,
-0.6915802693382364,
-0.6912019420996689,
-0.690320563662917,
-0.6891519832483195,
-0.6873367890051907,
-0.6863653375218557,
-0.6858667141142184,
-0.6849405103835445,
-0.6884337201956329,
-0.690010046319882,
-0.6914525125224753,
-0.6934793028563626,
-0.6956301817460572,
-0.6975706533310708,
-0.6993517350295492,
-0.7011144967658928,
-0.7029532132272613,
-0.7042085517482031,
-0.7065631262551634,
-0.7091071346929106,
-0.7114841567310473,
-0.7139199031093335,
-0.7171682512199007,
-0.7198075083353069,
-0.7219786289652841,
-0.7239380185906146,
-0.7258013049342765,
-0.7292117142459394,
-0.7309361176154752,
-0.7306102178573043,
-0.7297440358766947,
-0.7291276865030516,
-0.7287213480235202,
-0.7277387182297564,
-0.7267453517894293,
-0.7264598781017904,
-0.7259317096350295,
-0.7257378222541327,
-0.725389258105192,
-0.7250082350357773,
-0.7244037811260898,
-0.7263227548380665,
-0.7276772391745521,
-0.7285462590346066,
-0.7297461628345531,
-0.7313824375898383,
-0.7333257227171053,
-0.7353703318917201,
-0.7378055282621611,
-0.7404690027284705,
-0.7427626262950742,
-0.7447058113211,
-0.7467383302285906,
-0.7489836663255556,
-0.7505905405678566,
-0.7508581950384602,
-0.7506789465494587,
-0.7509478428213692,
-0.750561177607144,
-0.7504087980353696,
-0.7502593067571565,
-0.749772950902444,
-0.7497658914033448,
-0.7495294039224939,
-0.7499489783894498,
-0.7510150411380552,
-0.7537429479718165,
-0.7555196783165293,
-0.7594453275913057,
-0.7631895279696074,
-0.7670630426338746,
-0.770748556263822,
-0.7758956930086411,
-0.7808424828589132,
-0.7865049881884922,
-0.7905393643114689,
-0.7944308950423256,
-0.7983695935954114,
-0.8030717011680913,
-0.8066813347944378,
-0.8092483533638433,
-0.8121067011308298,
-0.8146504606139529,
-0.8171384071414877,
-0.8188076132962786,
-0.8210362785913085,
-0.8231669816263761,
-0.8241516890251444,
-0.8251264440430389,
-0.831690472133569,
-0.8369807787326713,
-0.8396310529758335,
-0.8440252183915726,
-0.8433716825491532,
-0.8422728024112296,
-0.8420944868501202,
-0.8424935241223668,
-0.8409340243719903,
-0.8401181062933775,
-0.8379592539442168,
-0.8354677620892449,
-0.832386725549688,
-0.8301444369929692,
-0.8302860971079045,
-0.830215199113572,
-0.8297961880803912,
-0.8297271468630041,
-0.8296177262761844,
-0.8306714249973653,
-0.8319816412089798,
-0.8334372206976751,
-0.8339910175033892,
-0.8341032356322152,
-0.8347235354630987,
-0.8349839749618964,
-0.8343022982449505,
-0.8340679289470432,
-0.8337535571219986,
-0.8315044654018335,
-0.8290776014868041,
-0.8266045398057403,
-0.8242420042363999,
-0.8219316566372074,
-0.8204479039273894,
-0.8177652750869021,
-0.814409978636814,
-0.8103634915273331,
-0.8061033309512672,
-0.8013599432665378,
-0.7963576476347922,
-0.7909387425352749,
-0.7850370622069406,
-0.7812364755536182,
-0.7828016198846438,
-0.7835475809958453,
-0.7849490819920044,
-0.7859668067749537,
-0.7878216744460578,
-0.7888991939815805,
-0.7891350644085766,
-0.7904150337942134,
-0.7923238541397305,
-0.7938334954166698,
-0.7948986912093924,
-0.7966190353235358,
-0.7974905614380787,
-0.7987995600802826,
-0.8010697601062667,
-0.8022422167294719,
-0.8035177951823007,
-0.8050201947432238,
-0.8057876249022058,
-0.8043652241197663,
-0.8033252216819524,
-0.8022748764511328,
-0.8011342974976301,
-0.7998625557634454,
-0.7985127934225554,
...])
[78]:
gres.grids['Mye'] = t_mye.agent.critic(torch.tensor(t_mye.env.state_space.mean(axis=1),device=device)).detach().cpu().numpy().ravel()
gres = project_back(gres, 'Mye')
adata.obs['Mye_decision'] = gres.embedding['Mye']
gres1.grids['Mye'] = t_mye1.agent.critic(torch.tensor(t_mye1.env.state_space.mean(axis=1),device=device)).detach().cpu().numpy().ravel()
gres1 = project_back(gres1, 'Mye')
adata1.obs['Mye_decision'] = gres1.embedding['Mye']
[79]:
sc.pl.umap(adata, color='Mye_decision',s=50,title='',cmap='plasma',show=False)
plt.savefig('F13.png',dpi=600,bbox_inches='tight')
[80]:
sc.pl.umap(adata1, color='Mye_decision',s=50,title='',cmap='plasma',show=False)
plt.savefig('F14.png',dpi=600,bbox_inches='tight')
[98]:
from sklearn.preprocessing import KBinsDiscretizer, minmax_scale
[164]:
ery_df = adata.obs.loc[adata.obs['clusters'].isin(['HSC_1','HSC_2','Ery_1','Ery_2','Mega']),['Ery','Ery_decision','time']]
ery_df['time_bins'] = KBinsDiscretizer(20, encode='ordinal', strategy='quantile').fit_transform(ery_df['time'].values.reshape(-1,1))
[165]:
with sns.axes_style('darkgrid'):
sns.boxplot(data=ery_df,x='time_bins',y='Ery_decision',palette='viridis',fliersize=0,whis=(10,90))
sns.stripplot(data=ery_df, x='time_bins', y='Ery_decision',color='k',s=1,edgecolor='w')
ax = plt.gca()
ax.tick_params(labelbottom=False)
ax.set_xlabel('')
ax.set_ylabel('')
plt.savefig('F15.png',dpi=600,bbox_inches='tight')
[166]:
with sns.axes_style('darkgrid'):
sns.boxplot(data=ery_df,x='time_bins',y='Ery',palette='viridis',fliersize=0,whis=(10,90))
sns.stripplot(data=ery_df, x='time_bins', y='Ery',color='k',s=1,edgecolor='w')
ax = plt.gca()
ax.tick_params(labelbottom=False)
ax.set_xlabel('')
ax.set_ylabel('')
plt.savefig('F16.png',dpi=600,bbox_inches='tight')
[179]:
mye_df = adata.obs.loc[adata.obs['clusters'].isin(['HSC_1','HSC_2','Mono_1','Mono_2','DCs']),['Mye','Mye_decision','time']]
mye_df['time_bins'] = KBinsDiscretizer(20, encode='ordinal', strategy='quantile').fit_transform(mye_df['time'].values.reshape(-1,1))
[180]:
with sns.axes_style('darkgrid'):
sns.boxplot(data=mye_df,x='time_bins',y='Mye_decision',palette='viridis',fliersize=0,whis=(10,90))
sns.stripplot(data=mye_df, x='time_bins', y='Mye_decision',color='k',s=1,edgecolor='w')
ax = plt.gca()
ax.tick_params(labelbottom=False)
ax.set_xlabel('')
ax.set_ylabel('')
plt.savefig('F17.png',dpi=600,bbox_inches='tight')
[188]:
with sns.axes_style('darkgrid'):
sns.boxplot(data=mye_df,x='time_bins',y='Mye',palette='viridis',fliersize=0,whis=(10,90))
sns.stripplot(data=mye_df, x='time_bins', y='Mye',color='k',s=1,edgecolor='w')
ax = plt.gca()
ax.tick_params(labelbottom=False)
ax.set_xlabel('')
ax.set_ylabel('')
plt.savefig('F18.png',dpi=600,bbox_inches='tight')
[191]:
ery_weighted = sum((ery_df['Ery'] / ery_df['Ery'].sum())*ery_df['time'])
eryD_weighted = sum((ery_df['Ery_decision'] / ery_df['Ery_decision'].sum())*ery_df['time'])
with sns.axes_style('darkgrid'):
fig = plt.figure(figsize=(3,5))
sns.barplot(x=[0,1],y=[eryD_weighted, ery_weighted],palette='viridis')
ax = plt.gca()
ax.set_xticklabels(['Desion','Contribution'])
plt.savefig('F19.png',dpi=600,bbox_inches='tight')
[192]:
mye_weighted = sum((mye_df['Mye'] / mye_df['Mye'].sum())*mye_df['time'])
myeD_weighted = sum((mye_df['Mye_decision'] / mye_df['Mye_decision'].sum())*mye_df['time'])
with sns.axes_style('darkgrid'):
fig = plt.figure(figsize=(3,5))
sns.barplot(x=[0,1],y=[myeD_weighted, mye_weighted],palette='viridis')
ax = plt.gca()
ax.set_xticklabels(['Desion','Contribution'])
plt.savefig('F20.png',dpi=600,bbox_inches='tight')
[ ]:
[231]:
ery_df1 = adata1.obs.loc[adata1.obs['batch'].isin(['HSC','MPP','MEP']),['Ery','Ery_decision','time']]
ery_df1['time_bins'] = KBinsDiscretizer(20, encode='ordinal', strategy='quantile').fit_transform(ery_df1['time'].values.reshape(-1,1))
[235]:
with sns.axes_style('darkgrid'):
sns.boxplot(data=ery_df1,x='time_bins',y='Ery_decision',palette='viridis',fliersize=0,whis=(10,90))
sns.stripplot(data=ery_df1, x='time_bins', y='Ery_decision',color='k',s=1,edgecolor='w')
ax = plt.gca()
ax.tick_params(labelbottom=False)
ax.set_xlabel('')
ax.set_ylabel('')
plt.savefig('F21.png',dpi=600,bbox_inches='tight')
[236]:
with sns.axes_style('darkgrid'):
sns.boxplot(data=ery_df1,x='time_bins',y='Ery',palette='viridis',fliersize=0,whis=(10,90))
sns.stripplot(data=ery_df1, x='time_bins', y='Ery',color='k',s=1,edgecolor='w')
ax = plt.gca()
ax.tick_params(labelbottom=False)
ax.set_xlabel('')
ax.set_ylabel('')
plt.savefig('F22.png',dpi=600,bbox_inches='tight')
[237]:
ery_weighted1 = sum((ery_df1['Ery'] / ery_df1['Ery'].sum())*ery_df1['time'])
eryD_weighted1 = sum((ery_df1['Ery_decision'] / ery_df1['Ery_decision'].sum())*ery_df1['time'])
with sns.axes_style('darkgrid'):
fig = plt.figure(figsize=(3,5))
sns.barplot(x=[0,1],y=[eryD_weighted1, ery_weighted1],palette='viridis')
ax = plt.gca()
ax.set_xticklabels(['Desion','Contribution'])
plt.savefig('F23.png',dpi=600,bbox_inches='tight')
[238]:
mye_df1 = adata1.obs.loc[adata1.obs['batch'].isin(['HSC','MPP','GMP']),['Mye','Mye_decision','time']]
mye_df1['time_bins'] = KBinsDiscretizer(20, encode='ordinal', strategy='quantile').fit_transform(mye_df1['time'].values.reshape(-1,1))
[239]:
with sns.axes_style('darkgrid'):
sns.boxplot(data=mye_df1,x='time_bins',y='Mye_decision',palette='viridis',fliersize=0,whis=(10,90))
sns.stripplot(data=mye_df1, x='time_bins', y='Mye_decision',color='k',s=1,edgecolor='w')
ax = plt.gca()
ax.tick_params(labelbottom=False)
ax.set_xlabel('')
ax.set_ylabel('')
plt.savefig('F24.png',dpi=600,bbox_inches='tight')
[240]:
with sns.axes_style('darkgrid'):
sns.boxplot(data=mye_df1,x='time_bins',y='Mye',palette='viridis',fliersize=0,whis=(10,90))
sns.stripplot(data=mye_df1, x='time_bins', y='Mye',color='k',s=1,edgecolor='w')
ax = plt.gca()
ax.tick_params(labelbottom=False)
ax.set_xlabel('')
ax.set_ylabel('')
plt.savefig('F25.png',dpi=600,bbox_inches='tight')
[241]:
mye_weighted1 = sum((mye_df1['Mye'] / mye_df1['Mye'].sum())*mye_df1['time'])
myeD_weighted1 = sum((mye_df1['Mye_decision'] / mye_df1['Mye_decision'].sum())*mye_df1['time'])
with sns.axes_style('darkgrid'):
fig = plt.figure(figsize=(3,5))
sns.barplot(x=[0,1],y=[myeD_weighted1, mye_weighted1],palette='viridis')
ax = plt.gca()
ax.set_xticklabels(['Desion','Contribution'])
plt.savefig('F26.png',dpi=600,bbox_inches='tight')
[242]:
adata.obs.to_csv('0326_cd34.csv')
[243]:
adata1.obs.to_csv('0326_pheno.csv')
[ ]:
